#07471

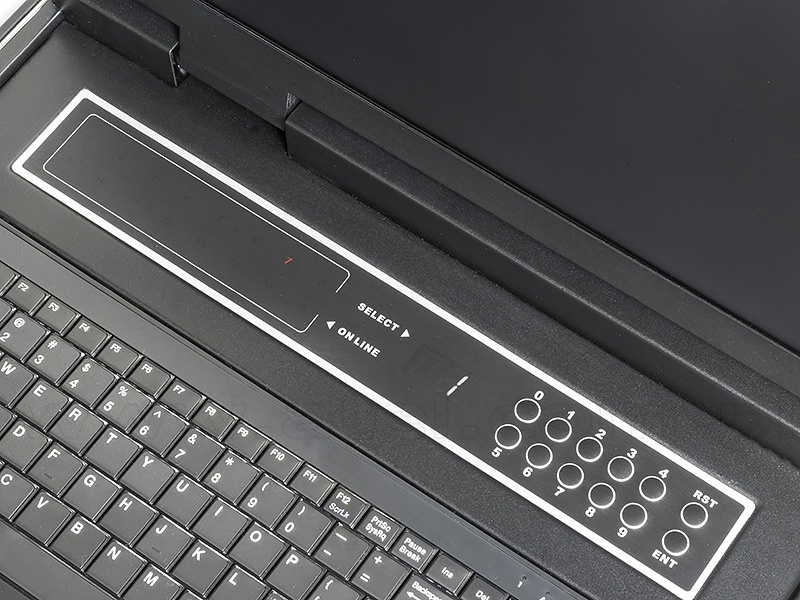

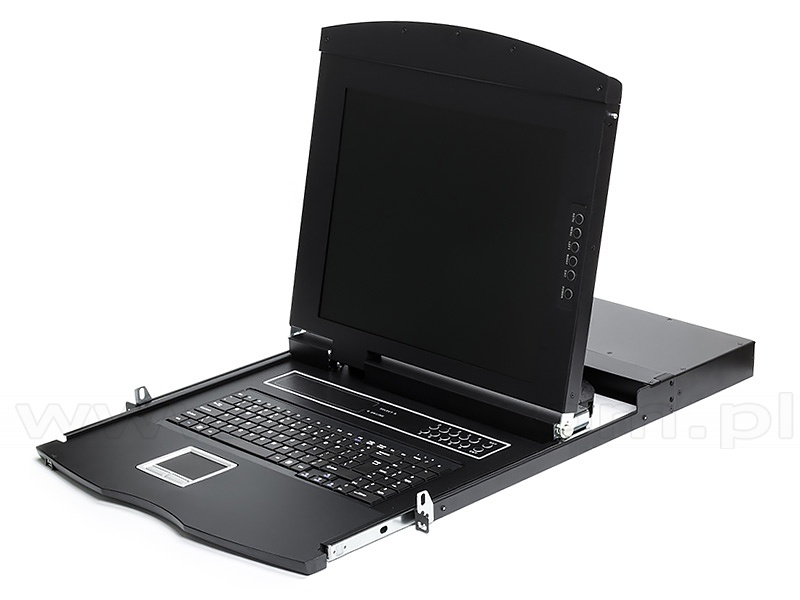

KVM LCD modular console, Wave KVM, 17", cat.5, 8-port KVM, 1U, single rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions.

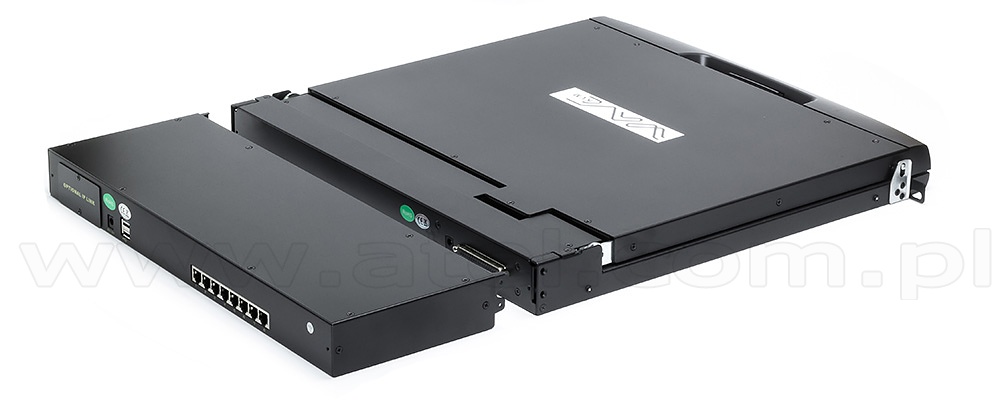

The modular design allows for easy expansion of the device with a removable KVM module with more ports (16 ports) and an additional module for IP communication.
The modular design allows for easy expansion of the device with a removable KVM module with more ports (16 ports) and an additional module for IP communication.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 8 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07472
KVM LCD modular console, Wave KVM, 17", cat.5, 16-port KVM, 1U, single rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions.
The modular design allows for easy expansion of the device with an additional module for IP communication.
The modular design allows for easy expansion of the device with an additional module for IP communication.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 16 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07473

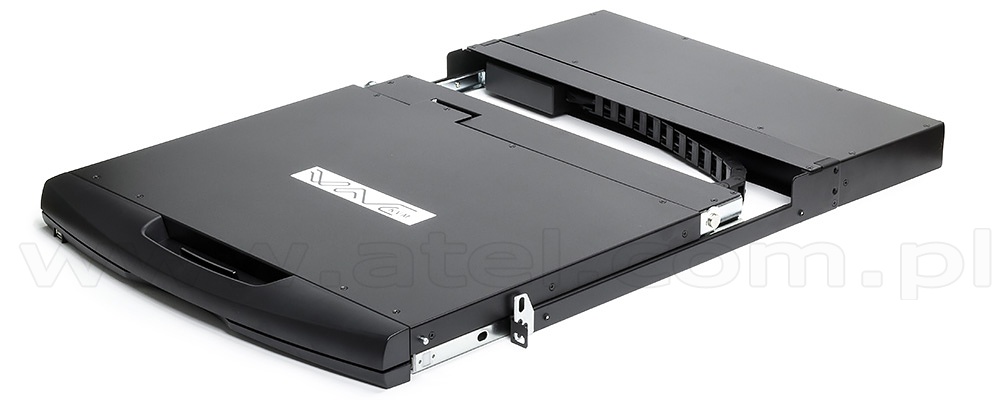

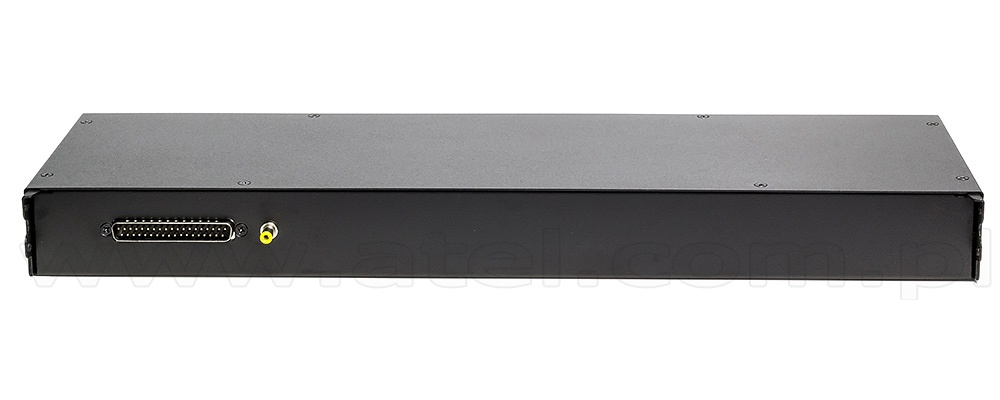

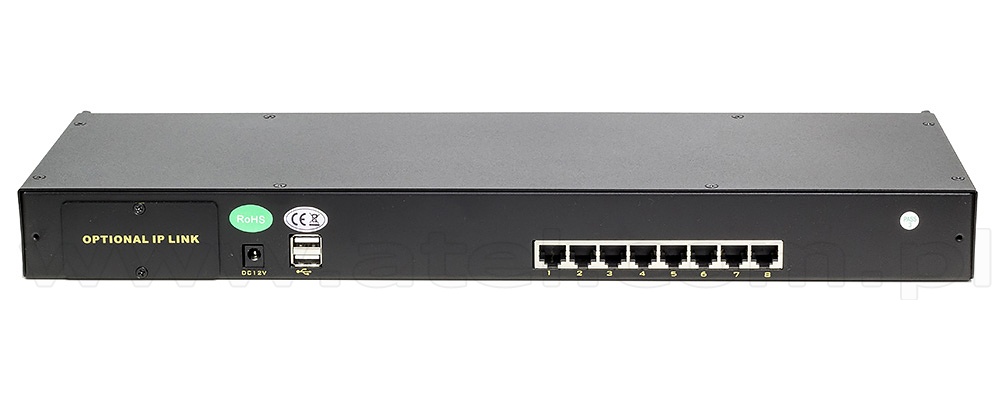

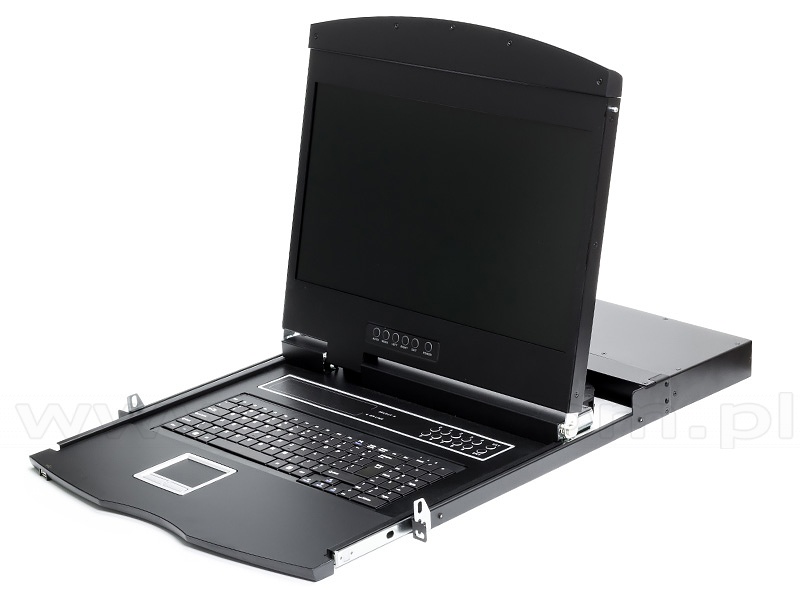

KVM LCD modular console, Wave KVM, 19", cat.5, 8-port KVM, 1U, single rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions.
The modular design allows for easy expansion of the device with a removable KVM module with more ports (16 ports) and an additional module for IP communication.
The modular design allows for easy expansion of the device with a removable KVM module with more ports (16 ports) and an additional module for IP communication.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 8 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07474
KVM LCD modular console, Wave KVM, 19", cat.5, 16-port KVM, 1U, single rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions.
The modular design allows for easy expansion of the device with an additional module for IP communication.
The modular design allows for easy expansion of the device with an additional module for IP communication.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 1000 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | LED |
| Supported colors | 16.7M |
| Mean Time Between Failures | 100 000 hours |
| PC or KVM ports | 16 PS2 or USB |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 636x446x42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 18.0 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07387

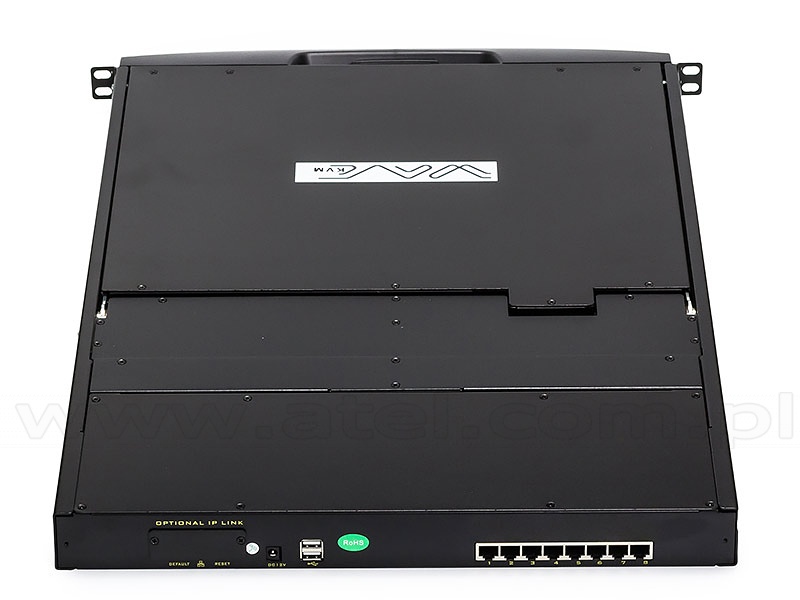

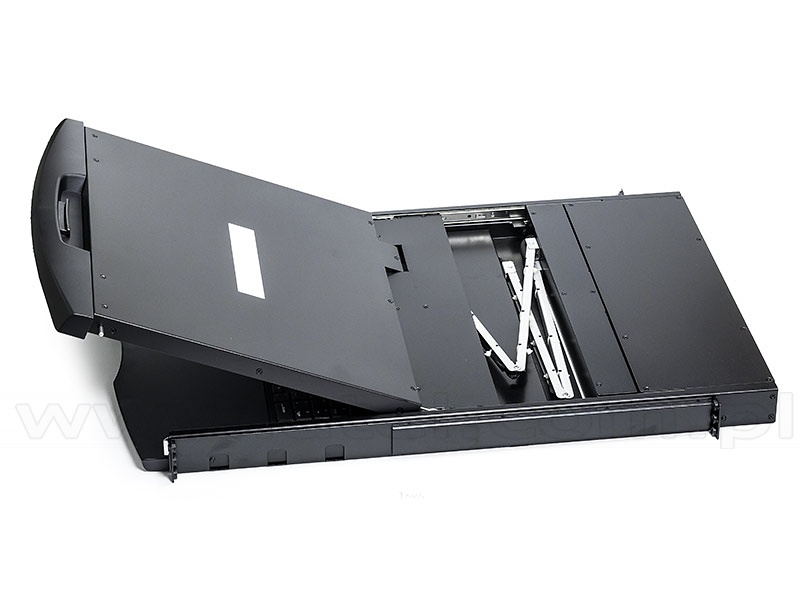

KVM LCD console, Wave KVM, 17", cat.5, 8-port KVM, 1U, dual rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions. The double rails enable pulling out only the monitor and viewing it with closed cabinet doors.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 700 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 4 CCFL lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 8 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 640*443*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 23.5 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07388

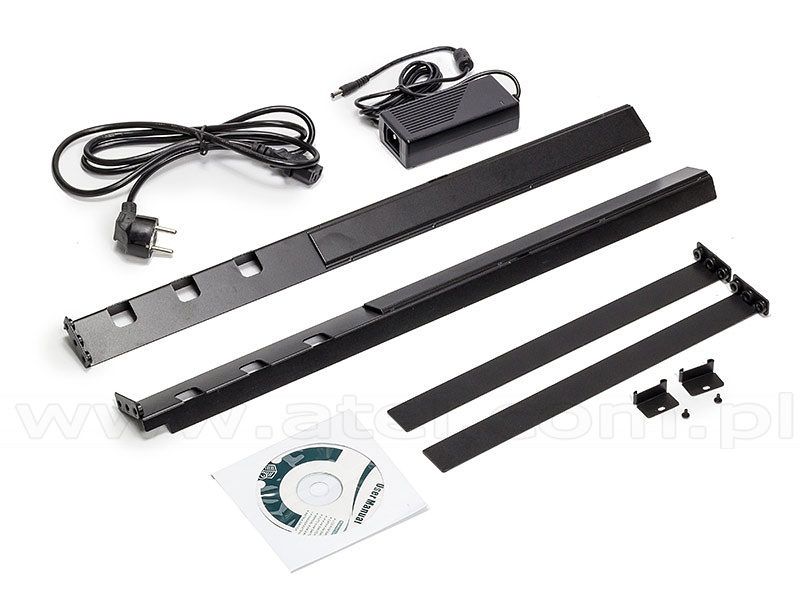

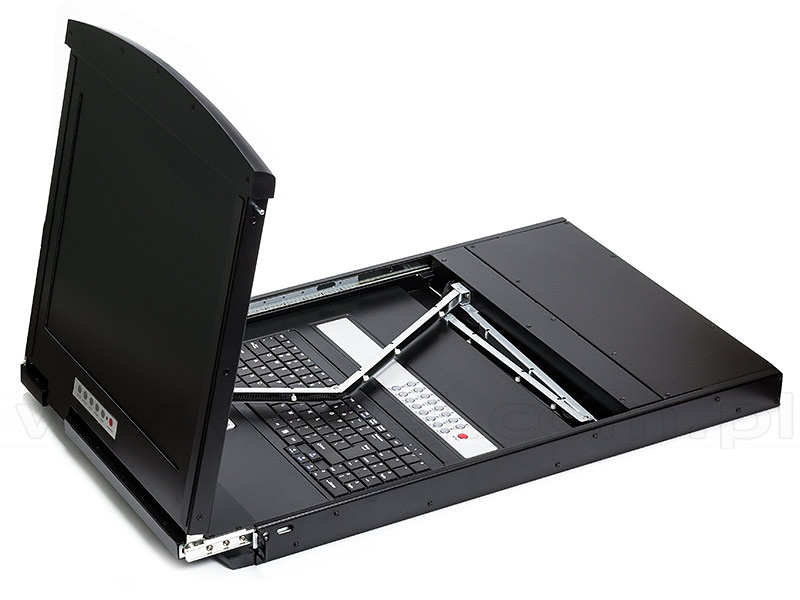

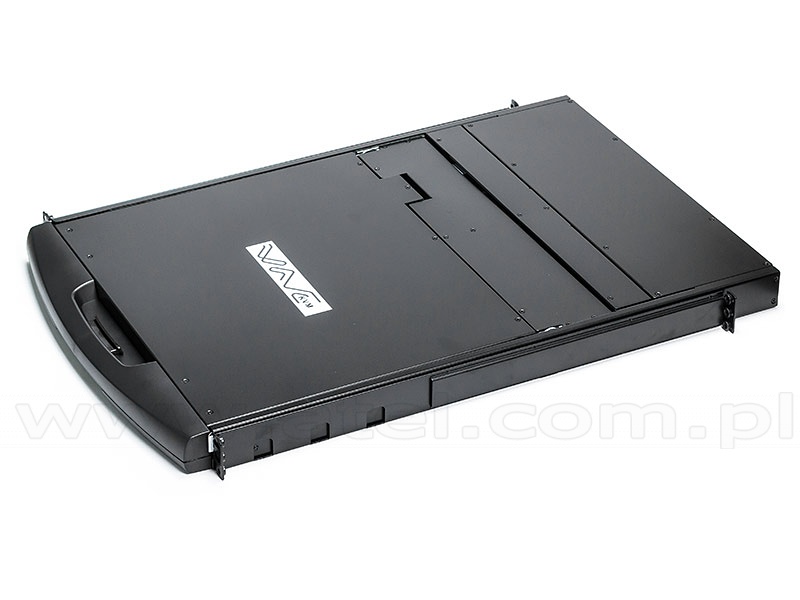

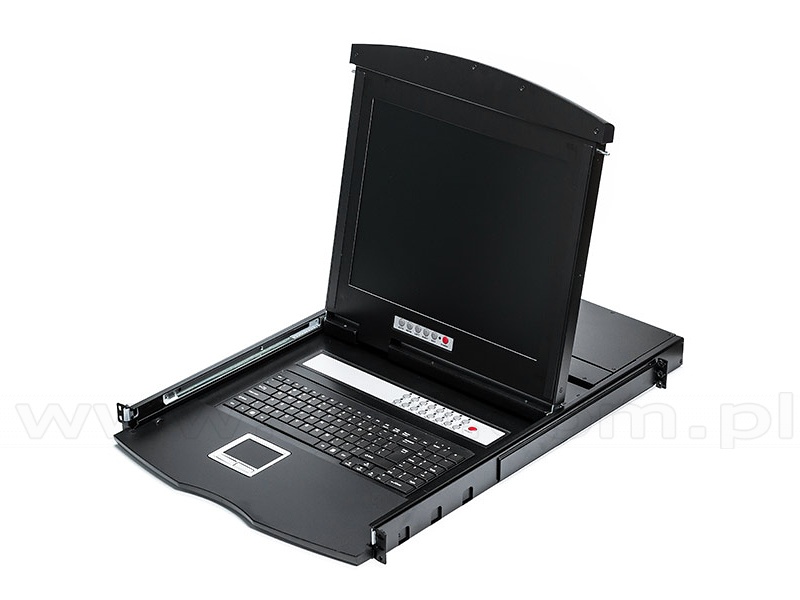

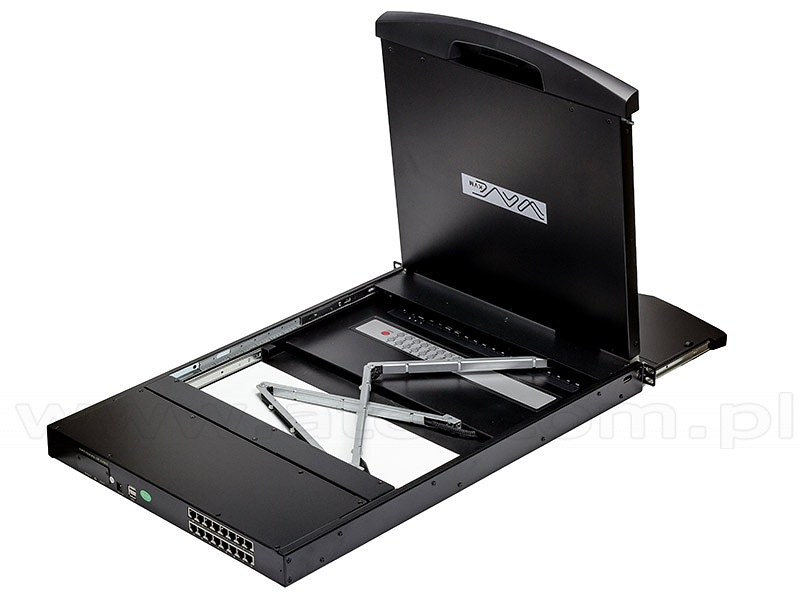

KVM LCD console, Wave KVM, 17", cat.5, 16-port KVM, 1U, dual rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions. The double rails enable pulling out only the monitor and viewing it with closed cabinet doors.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 700 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 4 CCFL lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 16 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 640*443*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 23.88 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07389

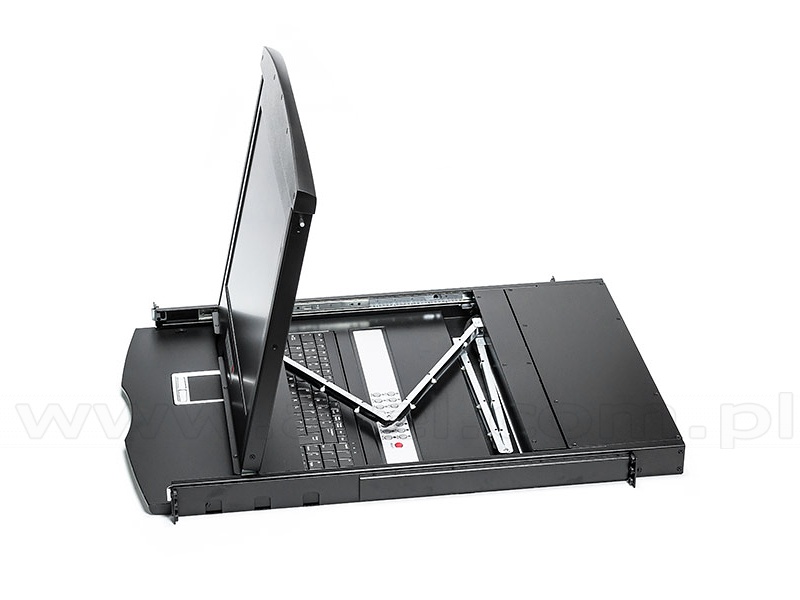

KVM LCD console, Wave KVM, 19", cat.5, 8-port KVM, 1U, dual rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions. The double rails enable pulling out only the monitor and viewing it with closed cabinet doors.
| Description | 8 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 19" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 700 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 4 CCFL lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 8 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 630*450*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 19.34 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07390

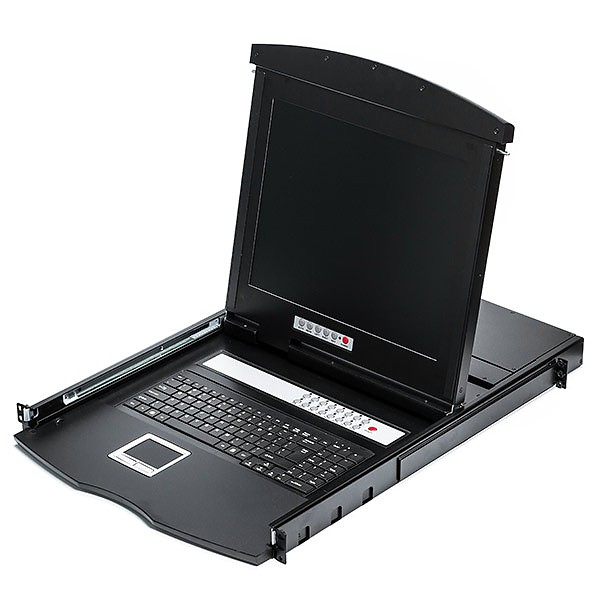

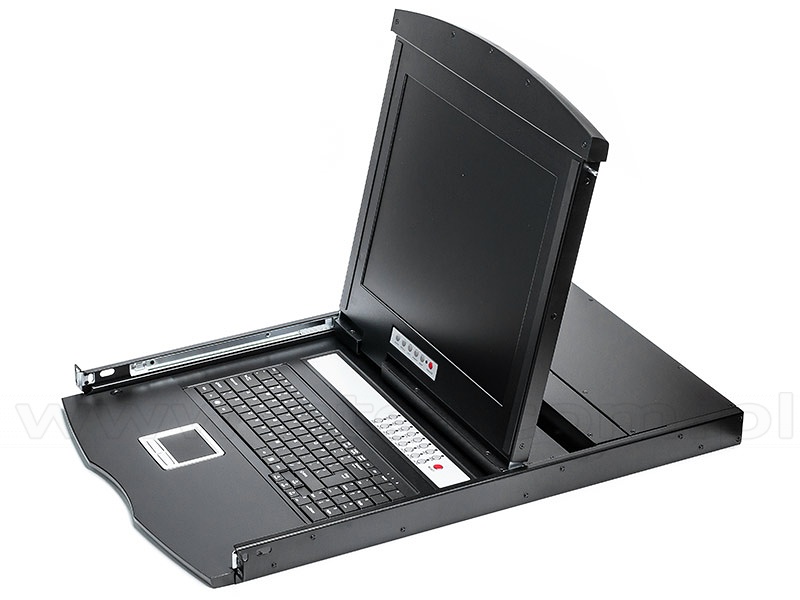

KVM LCD console, Wave KVM, 19", cat.5, 16-port KVM, 1U, dual rail
The KVM console with RJ-45 sockets allows to connect computers using standard cat.5e patchcords and adapters installed on the server side. The possibility of using universal connectors of various lengths in addition to the advantages of a typical KVM console (high resolution LCD, keyboard and touchpad) distinguishes the console from other solutions. The double rails enable pulling out only the monitor and viewing it with closed cabinet doors.
| Description | 16 PC to 1 console |
|---|---|
| Panel type |
active TFT LCD, 17" XGA, 4÷3 |
| Max. resolution | 1920x1440 |
| Optimal resolution | 1280x1024 |
| Contrast | 700 ÷ 1 |
| White Luminance | 250 cd/m2 |
| Back light | 4 CCFL lamps |
| Supported colors | 16.7M |
| Mean Time Between Failures | 50 000 hours |
| PC or KVM ports | 16 RJ45 |
| Keyboard |
105 keys, touchpad |
| Transmission distance | up to 60m |
| Free slots | IP module or cat.5 |
| Power | ~230V AC |
| Operating temperatures | 0°C ÷ 50°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates | CE |
| Dimensions | 630*450*42mm |
| Min-max dist. between mounting rails | 580mm - 870mm |
| Weight | 20.41 kg |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07340
KVM switch, Wave KVM , 8 to 1, PS/2 or USB console, PS/2 and USB PC ports, 19"
KVM switch allows to manage up to 8 servers from a single keyboard, monitor and mouse. Switching between the units is done using the front panel buttons or keyboard shortcuts.
| Description | 8 PC to 1 user |
|---|---|
| PC ports | 8x HDB15(F) |
| PC port type (keyboard/mouse) | PS/2 or USB |
| Console ports |
1x VGA HDB15(F), 2x USB A(F), 2x PS/2(F) |
| PC selection | keyboard shortcut / OSD / button |
| Status LEDs | 16 (2 for each PC port) |
| OSD | yes |
| Max. resolution (local console) | 1600 x 900 |
| Housing |
19", metal |
| Power |
5V DC 1A, ~230V AC 50Hz |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
#07341
KVM switch, Wave KVM , 16 to 1, PS/2 or USB console, PS/2 and USB PC ports, 19"
KVM switch allows to manage up to 16 servers from a single keyboard, monitor and mouse. Switching between the units is done using the front panel buttons or a keyboard shortcut.
| Description | 16 PC to 1 users |
|---|---|
| PC ports | 16x HDB15(F) |
| PC port type (keyboard/mouse) | PS/2 or USB |
| Console ports |
1x VGA HDB15(F), 2x USB A(F), 2x PS/2(F) |
| PC selection | keyboard shortcut / OSD / button |
| Status LEDs | 32 (2 for each PC port) |
| OSD | yes |
| Max. resolution (local console) | 1600 x 900 |
| Housing |
19", metal |
| Power |
5V DC 1A, ~230V AC 50Hz |
| Warranty | 2 years |
| Manufacturer | Wave KVM |
