#09041
1500Mbps Wireless Gigabit Router Dual-band AX1500, MU-MIMO (TP-Link Archer AX10)
- Wi-Fi 6 Technology—Archer AX10 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds—Archer AX10 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band).
- Connect Dozens of Devices—More simultaneous connections and reduced latency with OFDMA and MU-MIMO.
- Triple-Core CPU—Instant response to all your network activity with a 1.5 GHz triple-core CPU.
- Broader Coverage—4 Antennas and Beamforming technology focus signal towards individual clients for broader coverage.
- Full Gigabit Ports—Take full advantage of broadband speeds up to 1 Gbps.
- Easy Setup—Finish your network upgrade in minutes with Tether app.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |
4 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port, |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button, LED On/Off |
| Power Supply | 12V/1A |
| Dimensions (W X D X H) | 10.2 × 5.3 × 1.5 in (260.2 x 135.0 x 38.6 mm) |
| Antenna | 4 × External Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 300 Mbps (802.11n) |
| Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service | Advanced Gaming Qos powered by TrendMicro |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09309
1500Mbps Wireless Gigabit Router Dual-band AX1500, MU-MIMO (TP-Link Archer AX12)
- Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.
- More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas.
- Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
- Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |
3 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port, |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button, LED On/Off |
| Power Supply | 12V/1A |
| Dimensions (W X D X H) | 8,5 × 4,6 ×1,3 in (215 × 117 × 32 mm) |
| Antenna | 4 × External Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 300 Mbps (802.11n) |
| Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
| Wireless Security |
WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service | Advanced Gaming Qos powered by TrendMicro |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09394
1500Mbps Wireless Gigabit Router Dual-band AX1500, MU-MIMO (TP-Link Archer AX1500)
- Wi-Fi 6 Technology—Archer AX10 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds—Archer AX10 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band).
- Connect Dozens of Devices—More simultaneous connections and reduced latency with OFDMA and MU-MIMO.
- Triple-Core CPU—Instant response to all your network activity with a 1.5 GHz triple-core CPU.
- Broader Coverage—4 Antennas and Beamforming technology focus signal towards individual clients for broader coverage.
- Full Gigabit Ports—Take full advantage of broadband speeds up to 1 Gbps.
- Easy Setup—Finish your network upgrade in minutes with Tether app.
- Backward Compatible: Archer AX1500 supports all previous 802.11 standards and all WiFi devices.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |
4 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port, |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button, LED On/Off |
| Power Supply | 12V/1.5A |
| Dimensions (W X D X H) | 10.2 × 5.3 × 1.5 in (260.2 x 135.0 x 38.6 mm) |
| Antenna | 4 × External Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 300 Mbps (802.11n) |
| Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service | Advanced Gaming Qos powered by TrendMicro |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09395
1500Mbps Wireless Gigabit Router Dual-band AX1500, MU-MIMO (TP-Link Archer AX17)
- Wi-Fi 6 Technology: Archer AX17 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds: Archer AX17 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.
- More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX17 as it focuses signal strength to your devices using Beamforming technology and four antennas.
- Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
- Backward Compatible: Archer AX17 supports all previous 802.11 standards and all WiFi devices.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |
3 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port, |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button, LED On/Off |
| Power Supply | 12V/1A |
| Dimensions (W X D X H) | 8,5 × 4,6 ×1,3 in (215 × 117 × 32 mm) |
| Antenna | 4 × External Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 300 Mbps (802.11n) |
| Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
| Wireless Security |
WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service | Advanced Gaming Qos powered by TrendMicro |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09320
1500Mbps Wireless Gigabit Router Dual-band AX1500, MU-MIMO (TP-Link EX141)
- 1.5 Gbps WiFi Speeds: Enjoy faster browsing, streaming, and downloading across two bands.
- Connect More, Stay Fast: Equipped with the latest WiFi 6 wireless technology for faster speeds, greater capacity, and reduced network congestion.
- Extensive Coverage: Beamforming and four antennas combine to deliver focused reception to devices far away.
- EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.
- Enhanced Security: Protect your network with firewalls and the latest WPA3 encryption.
- Easy Setup: Set up your network in minutes with the powerful Aginet app.
- Remote Management: TR-069, TR-098, TR-181, TR-111, and TR-143 protocols are supported.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |
3 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port, |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button, LED On/Off |
| Power Supply | 12V/1A |
| Dimensions (W X D X H) | 7.2 × 3.7 × 1.3 in (182.7 × 94 × 33.3 mm) |
| Antenna | 4 × External Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 300 Mbps (802.11n) |
| Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service | Advanced Gaming Qos powered by TrendMicro |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8/8.1/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09322

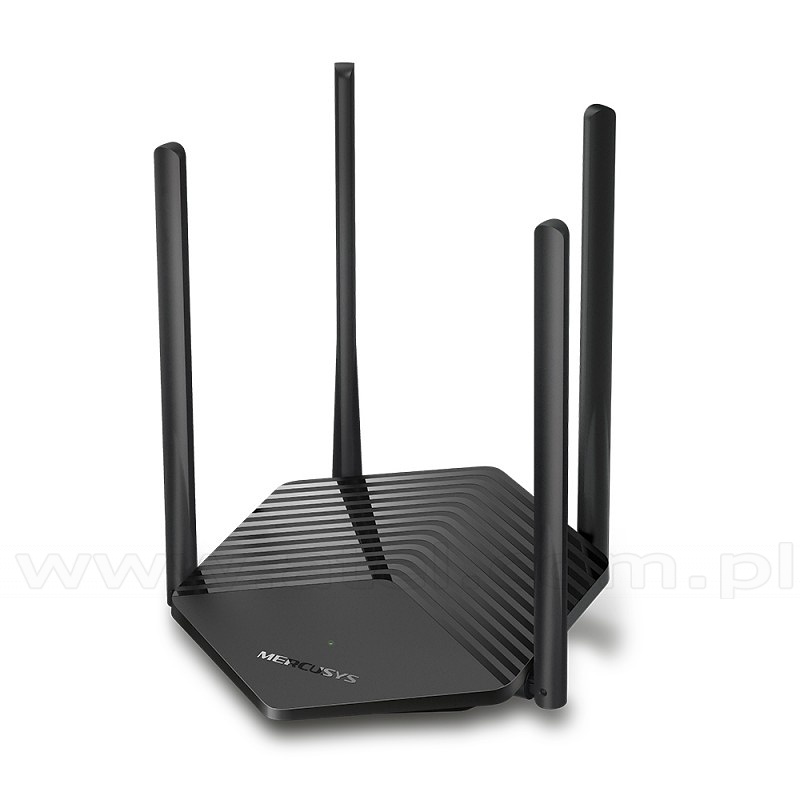

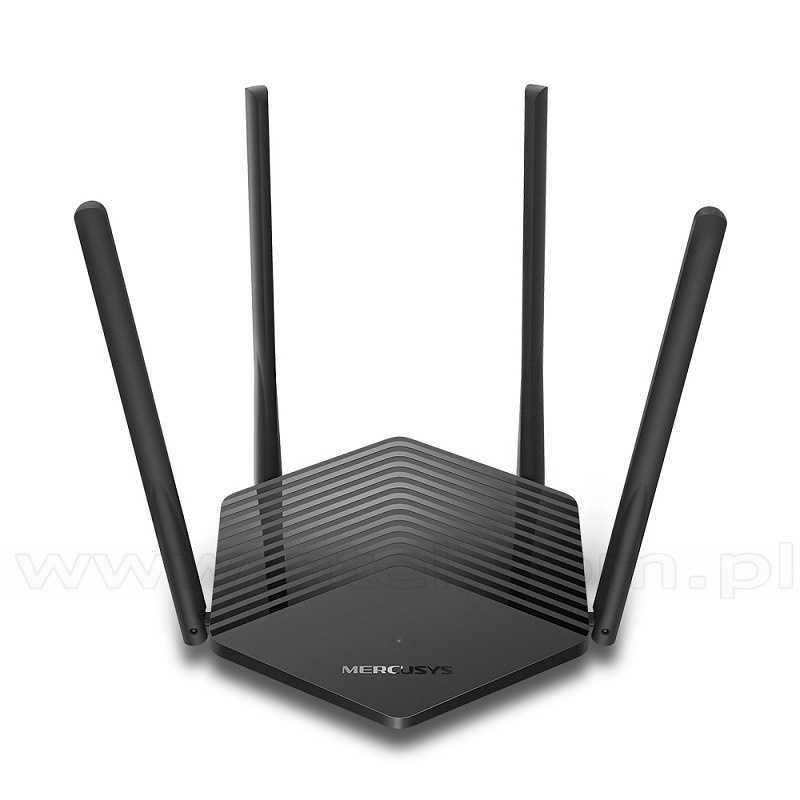

1500Mbps Wireless Gigabit Router Dual-band AX1500, MU-MIMO (TP-Link Marcusys MR60X)
- Upgrade Your Network with Wi-Fi 6 – MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions.
- Faster 1.5 Gbps Speeds - Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Improved Network Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
- Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Overall Security Protection – The latest WPA3 provides improved WiFi security
- Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
- Smart Connect– Intelligently chooses the best available band for each device
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |

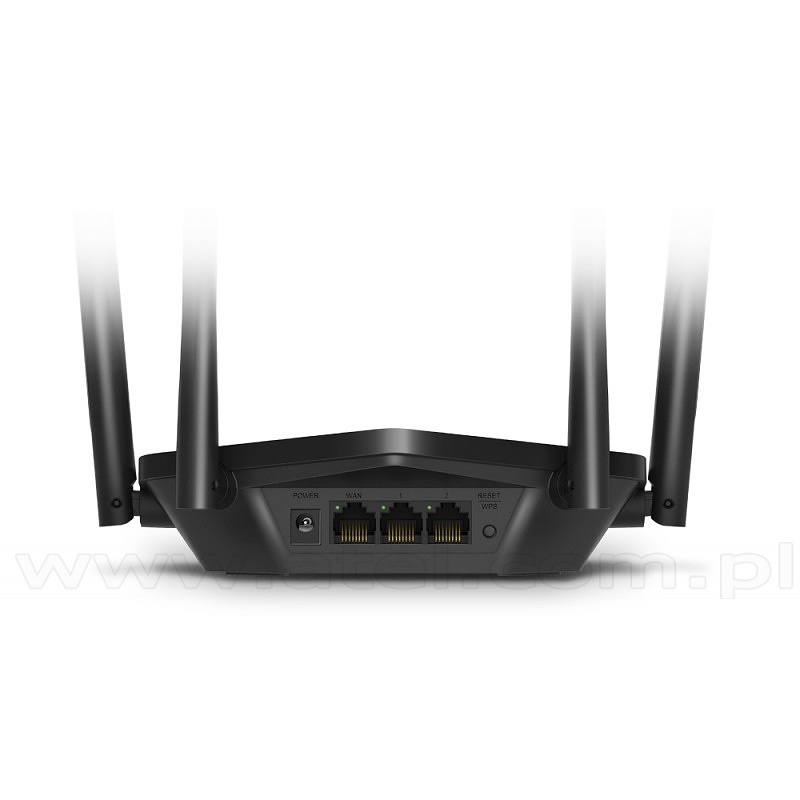

2 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port |
| Button | WPS/Reset Button |
| Dimensions (W X D X H) | 6,9 × 6,2 × 1,8 in (175,6 × 157,2 × 45 mm) |
| Antenna | 4× 5 dBi Fixed Omni-Directional Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 400 Mbps (802.11ax) |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM |
| Wireless Security | WPA-PSK / WPA2-PSK/ WPA3 |
| SOFTWARE FEATURES: | |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List |
| NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall Security |
SPI Firewall, IP and MAC Address Binding |
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
| VPN Passthrough |
OpenVPN, PPTP supported |
| OTHERS: | |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#09525
1500Mbps Wireless Range Extender, AX1500 (TP-Link Mercusys ME60X)
- Dual Band Speeds up to 1800 Mbps – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
- Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity.
- Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles.
- Works with Any Routers – To Extend WiFi to Where You Need It Most.
- Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.
- Built-In Access Point Mode – Works as RE mode and AP mode.
- Manage Your Network with App - Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 * 10/100/1000M Ethernet Port (RJ45) |
| Plug Type | EU |
| Button |
WPS Button, Reset Button |
| Power Consumption | About 10W |
| Wireless Standards |
IEEE802.11ax, IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 84,7 × 39 × 112 mm |
| Antenna Type | 2 x external |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 1201Mbps, 2.4GHz Up to 300Mpbs |
| Wireless Security | WPA-PSK/WPA2-PSK |
| OTHERS | |
| Certification |
CE, RoHS |
| Package Contents |
ME60X, Quick Installation Guide |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
#09219

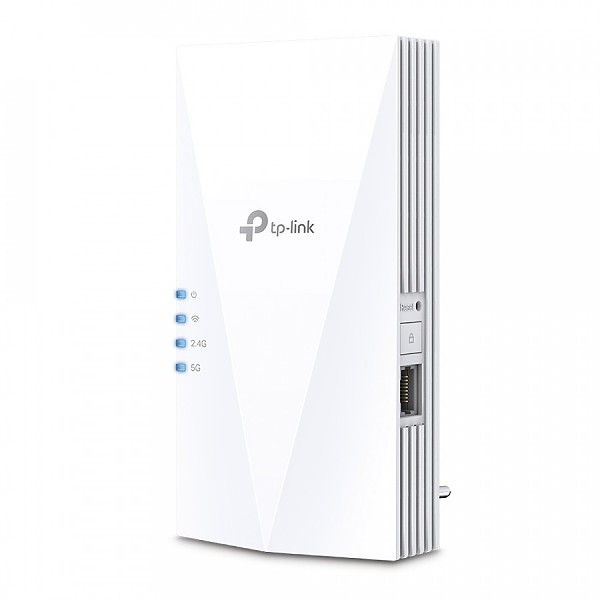

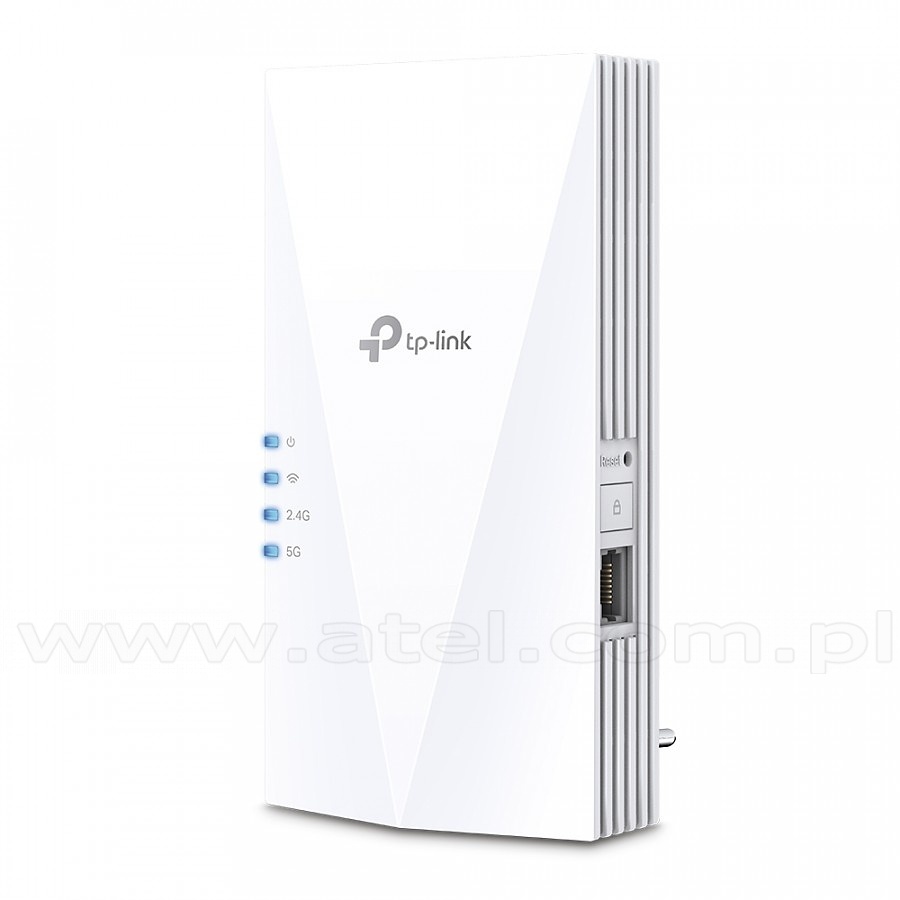

1500Mbps Wireless Range Extender, AX1500 (TP-Link RE500X)
- RE500X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
- Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 Gigabit Ethernet Port |
| Plug Type | EU |
| Button |
Reset Button, WPS Button |
| Power Consumption | About 10W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 78×36×149 mm |
| Antenna Type | 2 x Internal Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| EIRP |
CE 2,4 GHz ≤ 20 dBm, 5 GHz ≤ 30 dBm |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128/152-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE500X, Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8,10,11, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09063
1500Mbps Wireless Range Extender, AX1500 (TP-Link RE505X)
- RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
- Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 Gigabit Ethernet Port |
| Plug Type | EU |
| Button |
Reset Button, WPS Button |
| Power Consumption | About 10W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 74,0 × 46 × 124,8 mm |
| Antenna Type | 2 x External Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| EIRP |
CE 2,4 GHz ≤ 20 dBm, 5 GHz ≤ 30 dBm |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128/152-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE505X, Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8,10, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09190
1800Mbps Outdoor Wireless Access Point, AX1800 (TP-Link EAP615-Wall)
- Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
- High-Performance Connectivity: Guarantee higher network efficiency and lower latency.
- Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
- Centralized Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
| Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|---|
| Ports |
10/100/1000Mbps (RJ-45) Port *1, Downlink- 10/100/1000Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 1201Mbps, 2.4GHz Up to 574Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Omada App | Yes |
| Centralized Management |
Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, or Omada Software Controller) |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*3dBi, 5GHz- 2*4dBi |
| Dimensions | 143 × 86 × 19.7mm (5.6 × 3.4 × 0.8 in) |
| Power | 802.3af/802.3at PoE |
| Power Consumption |
EU 10W (802.3at PoE, PoE Out off), US 11.5W (802.3at PoE, PoE Out off) |
| Mounting | Wall Plate Mounting |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
EAP615-Wall, Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
| Certificates |
CE, FCC, RoHS |
| Warranty | 5 years |
Page 1 of 10
|
