#09009
1200Mbps Wireless Dual Band PCI-Express AC1200 (TP-Link Archer T4E)
- Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
- High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)
- 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
- Beamforming – Wi-Fi signals are strengthened towards certain direction where client exists
- Multiple-Size Brackets – Low profile and full heigh brackets are both provided, suitable for all PCs
- 2×2 MIMO – Users can easily access to high-speed wireless connection
- Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
| HARDWARE FEATURES: | |
|---|---|
| Interface | PCI Express x1 |
| Antenna Type |
Omni Directional, Detachable (RP-SMA) |
| WIRELESS FEATURES: | |
| Wireless Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency |
2.4-2.4835GHz, 5.180-5.240GHz, 5.745-5.825GHz |
| Signal Rate |
867Mbps at 5GHz, 300Mbps at 2.4GHz |
| EIRP | <20dBm (EIRP) |
| Reception Sensitivity |
5GHz- 11a -68dBm, 11n HT20 -64dBm, 11n HT40 -61dBm, 11ac HT20 -59dBm, 11ac HT40 -54dBm, 11ac HT80 -51dBm, 2,4GHz- 11b -76dBm, 11g -68dBm, 11n HT20 -64dBm, 11n HT40 -61dBm |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| OTHERS: | |
| Certification |
CE, FCC, RoHS, Wi-Fi |
| Package Contents |
Wireless Adapter Archer T4E, Resource CD, Quick Installation Guide |
| System Requirements |
Windows 7/8/8.1/10(32/64bits), Windows XP(32/64bits) |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
#09044
1200Mbps Wireless Dual Band PCI-Express AC1200, Bluetooth 4.2 (TP-Link Archer T5E)
- Ultra-Fast Speed – Make full use of your network with Wi-Fi speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Bluetooth 4.2 – Achieve 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0
- Broad Wireless Range – Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
| HARDWARE FEATURES: | |
|---|---|
| Interface | PCI Express x1 |
| Dimensions | 4.8 × 3.3 × 0.85 in (120.8 × 83.2 × 21.5 mm) |
| Antenna Type | 2 Detachable External Antennas |
| WIRELESS FEATURES: | |
| Wireless Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency |
2.4-2.4835GHz, 5.180-5.240GHz, 5.745-5.825GHz |
| Signal Rate |
867Mbps at 5GHz, 300Mbps at 2.4GHz |
| EIRP |
5 GHz- 21,5 dBm (FCC) / 23 dBm (CE) (EIRP), 2,4 GHz- 20,5 dBm (FCC) / 20 dBm (CE) (EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| OTHERS: | |
| Certification |
CE, FCC, RoHS, Wi-Fi |
| Package Contents |
Wireless Adapter Archer T5E, Resource CD, Quick Installation Guide, Low-Profile and Full Height Brackets, Bluetooth USB Cable |
| System Requirements |
Windows 7/8/8.1/10(32/64bits), Windows XP(32/64bits) |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#04593
1300Mbps Wireless Dual Band PCI-Express AC1300 (TP-Link Archer T6E)
- Easy Installation – Upgrade your desktop system easily by plugging the Archer T6E Wi-Fi adapter into an available PCI-E slot
- Hi-Speed Wi-Fi – Up to 1300Mbps Wi-Fi speeds (867Mbps on 5GHz band or 400Mpbs on 2.4GHz band)
- 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for hi-intensity network usage
- Backward Compatibility – With support for 802.11 a/b/g/n standards
- Broad Wireless Range – 2 external antennas ensure a greater range of Wi-Fi connection and stability
| HARDWARE FEATURES: | |
|---|---|
| Interface | PCI Express x1 |
| Antenna Type |
Omni Directional, Detachable (RP-SMA) |
| WIRELESS FEATURES: | |
| Wireless Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency |
2.4-2.4835GHz, 5.180-5.240GHz, 5.745-5.825GHz |
| Signal Rate |
867Mbps at 5GHz, 400Mbps at 2.4GHz |
| EIRP | <20dBm (EIRP) |
| Reception Sensitivity |
5GHz- 11a -68dBm, 11n HT20 -64dBm, 11n HT40 -61dBm, 11ac HT20 -59dBm, 11ac HT40 -54dBm, 11ac HT80 -51dBm, 2,4GHz- 11b -76dBm, 11g -68dBm, 11n HT20 -64dBm, 11n HT40 -61dBm |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| OTHERS: | |
| Certification |
CE, FCC, RoHS, Wi-Fi |
| Package Contents |
Wireless Adapter Archer T6E, Resource CD, Quick Installation Guide |
| System Requirements |
Windows 7/8/8.1/10(32/64bits), Windows XP(32/64bits) |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
#07167
AC1200 Wireless Dual Band USB 3.0 Adapter (TP-Link Archer T4U)
- Ultra-fast 1200 (867+300)Mbps wireless speed with 802.11ac
- Dual Band connections for lag-free HD video streaming and gaming
- SuperSpeed USB 3.0 port - Up to 10x faster than USB 2.0
- Easy wireless security encryption at a push of the WPS button
- Equipped with a USB Extension Cable for flexible deployment
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 3.0 |
| Frequency range |
5GHz, 2.4GHz |
| Max. speed | up to 5GHz 867Mbps or 2.4GHz 300Mbps |
| Max. output power | 20 dBm |
| Modulation type |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Operating modes |
Ad-hoc, infrastructure |
| WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Drivers |
Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Dimmensions | 92.2×29×14.6 mm |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#09246
AC1300 Wireless Dual Band USB 2.0 Adapter (TP-Link Archer T3U Nano)
- Ultimate Wi-Fi Speed – AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac
- Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity
- Mini design –Mini-sized design for convenient portability with a reliable high performance
- MU-MIMO - Delivers highly efficient wireless connection
- Supported Operating System – Windows 10/8.1/8/7/XP, Mac OS X (Mac OS 10.15 will be supported soon.)
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 2.0 |
| Antenna Type | Omni Directional |
| Frequency range |
5GHz, 2.4GHz |
| Max. speed | up to 5GHz 867Mbps or 2.4GHz 400Mbps |
| EIRP | <23dBm (EIRP) |
| Modulation type |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Operating modes |
Ad-hoc, infrastructure |
| WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Drivers |
Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Dimmensions | 0,78 × 0,62 × 0,29 in. (19,85 × 15,7 × 7,39 mm) |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#09008
AC1300 Wireless Dual Band USB 3.0 Adapter (TP-Link Archer T3U)
- Ultimate Wi-Fi Speed – AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac
- Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity
- Mini design –Mini-sized design for convenient portability with a reliable high performance
- Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
- MU-MIMO - Delivers highly efficient wireless connection
- Supported Operating System – Windows 10/8.1/8/7/XP, Mac OS X (Mac OS 10.15 will be supported soon.)
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 3.0 |
| Antenna Type | Omni Directional |
| Frequency range |
5GHz, 2.4GHz |
| Max. speed | up to 5GHz 867Mbps or 2.4GHz 400Mbps |
| EIRP | <23dBm (EIRP) |
| Modulation type |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Operating modes |
Ad-hoc, infrastructure |
| WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Drivers |
Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Dimmensions | 1.59 × 0.78 × 0.41in. (40.5 × 19.72 × 10.29mm) |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#09082
AC1300 Wireless Dual Band USB 3.0 Adapter (TP-Link Archer T4U Plus)
- Ultra-Fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard
- Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity
- Dual High-Gain antennas – Improved range, signal quality and transmission performance
- MU-MIMO –Delivers highly efficient wireless connection
- Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
- Adjustable, Multi-Directional Antenna - Enable flexible deployment for the best reception
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 3.0 |
| Frequency range |
5GHz, 2.4GHz |
| Antenna | 2× External 5 dBi High Gain Antennas |
| Max. speed | up to 5GHz 867Mbps or 2.4GHz 400Mbps |
| Max. output power | 20 dBm |
| Wireless Modes | Infrastructure mode |
| Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Drivers |
Supported operating systems include Windows 10/8.1/8/7, macOS |
| Dimmensions | 84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in) |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#09043
AC1300 Wireless High Gain Dual Band USB 3.0 Adapter (TP-Link Archer T3U Plus)
- AC1300 Lightning-Fast Speed — AC1300 (867 Mbps on the 5 GHz band or 400 Mbps on the 2.4 GHz band) dual-band Wi-Fi to ensure all your devices run at full speed
- MU-MIMO Technology — Improves the throughput and efficiency of the whole network with MU-MIMO technology
- Dual-Band Wireless — The 2.4 GHz and 5 GHz bands provide flexible connectivity, giving your devices access to the latest dual-band Wi-Fi router for faster speed and extended range
- High-Gain Antennas — Advanced external high-gain antennas greatly enhance the reception and transmission signal strength of the USB adapter
- Supports the Latest Operating Systems — Fully compatible with Windows 10/8.1/8/7/XP and macOS
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 3.0 |
| LED | Status |
| Antenna Type | 2 External High Gain Antennas |
| Frequency range |
5GHz, 2.4GHz |
| Max. speed | up to 5GHz 867Mbps or 2.4GHz 400Mbps |
| EIRP |
5 GHz- 20 dBm (FCC) / 20 dBm (CE) (EIRP), 2,4 GHz- 18 dBm (FCC) / 18 dBm (CE) (EIRP) |
| Modulation type |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Operating modes |
Ad-hoc, infrastructure |
| WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Drivers |
Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Dimmensions | 2.28 × 0.71 × 6.83 in (57.8 × 18 × 173.4 mm) |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#04688
AC1900 Wireless Dual Band USB 3.0 Adapter (TP-Link Archer T9UH)
- Ultimate Wi-Fi Speed– AC1900 (600Mpbs on 2.4GHz band or 1300Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac
- Dual Band Wireless– 2.4GHz and 5GHz band for flexible connectivity
- Ultimate Range – High gain antennas ensure superior range and stability
- Beamforming Technology – Delivers a more targeted and highly efficient wireless connections
- Super Speed USB 3.0 Port - Up to 10x faster than USB 2.0
- Flexible Deployment - Equipped with a USB 3.0 Cradle for flexible deployment
- WPS Button - Easy wireless security encryption at a push of the WPS button
- Backward Compatibility – With support for 802.11 a/b/g/n standards
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 3.0 |
| Frequency range |
5GHz, 2.4GHz |
| Max. speed | up to 5GHz 1300Mbps or 2.4GHz 600Mbps |
| Max. output power | 20 dBm |
| Modulation type |
DBPSK, DQPSK, CCK, BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Operating modes |
Ad-hoc, infrastructure |
| WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Drivers |
Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Dimmensions | 3.96×1.44×0.56in. (100.53×36.6×14.3mm) |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#09006
AC600 Wireless Dual Band USB 2.0 Adapter (TP-Link Archer T2U Nano)
- High Speed WiFi– Up to 600Mbps speeds with 200Mbps on 2.4GHz and 433 Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds.
- Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range.
- Nano design – Small, unobtrusive design allows you to plug it in and forget it is even there
- Operating System – Supports Windows 10/8.1/8/7/XP, Mac OS X
- Advanced Security –Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 2.0 |
| Frequency range |
5GHz, 2.4GHz |
| Max. speed | up to 5GHz 433Mbps or 2.4GHz 200Mbps |
| Max. output power | 20 dBm |
| Modulation type |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Operating modes |
Ad-hoc, infrastructure |
| WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Drivers |
Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Dimmensions | 15 x 7,1 x 18,6 mm |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
(us)1.0-148x137x31mm-m-7082500008_large_1542161922689p.jpg?1724361312)
#09007
AC600 Wireless Dual Band USB 2.0 Adapter (TP-Link Archer T2U Plus)
- High-Speed Wi-Fi: 256QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps, 200 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, ensure you fully enjoy fast AC Wi-Fi.
- Dual Band Wireless: 2.4 GHz and 5 GHz band provide flexible connectivity, giving your devices access to the latest dual-band Wi-Fi router for faster speed and extended range
- High-Gain Antenna: A 5dBi high-gain antenna greatly enhances the reception and transmission signal strength of the USB adapter
- Supports the Latest Operating Systems: Fully compatible with Windows 10/8.1/8/7/XP and Mac OS X
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 2.0 |
| LED | Status |
| Antena | 5dBi |
| Frequency range |
5GHz, 2.4GHz |
| Max. speed | up to 5GHz 433Mbps or 2.4GHz 200Mbps |
| Modulation type |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Operating modes |
Ad-hoc, infrastructure |
| WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Drivers |
Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Dimmensions | 57,8 × 18 × 173,4 mm |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#08939
AC600 Wireless Dual Band USB 2.0 Adapter (TP-Link Archer T2U)
- Ultra-fast 600 (433+150)Mbps wireless speed with 802.11ac
- Dual Band connections for lag-free HD video streaming and gaming
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 2.0 |
| Frequency range |
5GHz, 2.4GHz |
| Max. speed | up to 5GHz 433Mbps or 2.4GHz 150Mbps |
| Max. output power | 20 dBm |
| Modulation type |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Operating modes |
Ad-hoc, infrastructure |
| WLAN security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Drivers |
Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Dimmensions | 1.6×0.7×0.3 in. (41×19.5×8.7mm) |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#09114
AC650 Wireless Dual Band USB 2.0 Adapter (TP-Link Mercusys MU6H)
- High-Speed Dual-Band Wi-Fi: 256-QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps. Enjoy speeds of up to200 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, to take full advantage of your AC Wi-Fi.
- High-Gain Antenna: A 5dBi high-gain antenna greatly enhances the reception and transmission strength of the USB adapter
- Internal Driver: Smart easy-install for Windows operating system
- Supports the Latest Operating Systems: Fully compatible with Windows 10/8.1/8/7/XP
| Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | USB 2.0 |
| LED | Status |
| Antena | 5dBi |
| Frequency range |
5GHz, 2.4GHz |
| Max. speed | up to 5GHz 433Mbps or 2.4GHz 200Mbps |
| Modulation type |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Operating modes |
Ad-hoc, infrastructure |
| WLAN security |
WEP, WPA/WPA2, WPA-PSK/ WPA2-PS, 802.1X |
| Drivers |
Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
| Dimmensions | 57,8 × 16,8 × 173,4 mm |
| Manufacturer | TP-Link |
#06260
1200Mbps Outdoor Wireless Access Point, AC1200 (TP-Link EAP225-Outdoor)
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Free cloud centralized management and Omada app for ultra convenience and easy management
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports | Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support IEEE802.3af PoE) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
2,4GHz- 2 * 3dBi, 5GHz- 2 * 4dBi |
| Weatherproof Enclosure | IP65 |
| Dimensions |
215.7*45*37.7mm (without antenna & mounting kit) , 403.8*90.7*55.2mm (with antenna & mounting kit) |
| Power | PoE or External 12VDC / 1.5A Power Supply |
| Power Consumption | 10.15 W |
| Mounting | Pole/Wall Mounting (Kits included) |
| Watch Dog | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
AC1200 Wireless Dual Band Gigabit Access Point EAP225-Outdoor, Power Adapter, Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
| Certificates |
CE, FCC, RoHS |
| Warranty | 5 years |
1.0_02_large_1511141673569j.jpg?1617877231)
1.0_03_large_1511225748511y.jpg?1617231163)
1.0_06_large_1511142022557v.jpg?1622497205)
#09089
1200Mbps Outdoor Wireless Access Point, AC1200 (TP-Link EAP235-Wall)
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
- Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports |
Uplink 1x 10/100/1000Mbps (RJ-45) Port, Downlink- 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*4dBi, 5GHz- 2*4dBi |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Power | 802.3af/802.3at PoE |
| Power Consumption | 9.8 watts /24.4 watts (PoE Out Included) |
| Mounting | Wall Plate Mounting |
| Watch Dog | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
AC1200 Wireless Dual Band Gigabit Access Point EAP235-Wall, Mounting Screw, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
| Certificates |
CE, FCC, RoHS |
#09088
1200Mbps Wireless Access Point, AC1200 (TP-Link EAP230-Wall)
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
- Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
- Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports |
10/100/1000Mbps (RJ-45) Port *1, Downlink- 10/100/1000Mbps Ethernet Port*1 |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*4dBi, 5GHz- 2*3.6dBi |
| Dimensions | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
| Power | 802.3af/802.3at PoE |
| Power Consumption | 7 watts |
| Mounting | Wall Plate Mounting |
| Watch Dog | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
AC1200 Wireless Dual Band Gigabit Access Point EAP230-Wall, Mounting Screw, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
| Certificates |
CE, FCC, RoHS |
#09251
1350Mbps Outdoor Wireless Access Point, AC1350 (TP-Link EAP223)
- Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Support Power over Ethernet(802.3af) for convenient and affordable installation
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports | Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support IEEE802.3af PoE) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 450Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
3 Internal Omni 2.4GHz- 4dBi, 5GHz- 5dBi |
| Dimensions | 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm) |
| Power |
802.3af/at PoE, 48V Passive PoE (+4,5pins; -7,8pins.) (PoE Adapter IS NOT Included) |
| Power Consumption | 9.7 W |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| Operating Temperature | 0°C~60°C (-32℉~144℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
AC1200 Wireless Dual Band Gigabit Access Point EAP223, Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Certificates |
CE, FCC, RoHS |
| Warranty | 5 years |
#04658
1350Mbps Outdoor Wireless Access Point, AC1350 (TP-Link EAP225)
- Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Support Power over Ethernet(802.3af) for convenient and affordable installation
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports | Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support IEEE802.3af PoE) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 450Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
3 Internal Omni 2.4GHz- 4dBi, 5GHz- 5dBi |
| Dimensions | 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm) |
| Power | PoE or External 12VDC / 1.5A Power Supply |
| Power Consumption | 10.5 W |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| Operating Temperature | 0°C~60°C (-32℉~144℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
AC1200 Wireless Dual Band Gigabit Access Point EAP225, Power Adapter, Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Certificates |
CE, FCC, RoHS |
| Warranty | 5 years |
#04657
1750Mbps Outdoor Wireless Access Point, AC1750 (TP-Link EAP245)
- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Support Power over Ethernet(802.3at) for convenient and affordable installation
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- Load balance ensures large numbers of users have smooth network experiences in high density business networks
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports | Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support IEEE802.3at PoE) |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 1300Mbps, 2.4GHz Up to 450Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
Internal Omni 2,4GHz 3* 6dBi4, 5GHz 3*4dBi |
| Dimensions | 7.1 x 7.1 x 1.9in. (180*180*47.5mm) |
| Power | PoE or External 12VDC / 1.5A Power Supply |
| Power Consumption | 12.7 W |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
AC1750 Wireless Dual Band Gigabit Access Point EAP245, Power Adapter, Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Certificates |
CE, FCC, RoHS |
| Warranty | 5 years |
3.8-340x228x65mm-7022506794_large_1577435518703b.jpg?1645603844)
#09090
1750Mbps Outdoor Wireless Access Point, AC1750 (TP-Link EAP265 HD)
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.
- High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.
- Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- PoE Support: Supports both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
| Standards | IEEE 802.11ac/n/g/b/a |
|---|---|
| Ports | 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE) |
| Button | Reset |
| Frequency range | 2.4GHz and 5GHz |
| Signal Rate |
5GHz Up to 1300Mbps, 2.4GHz Up to 450Mbps |
| EIRP |
CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm |
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Antenna |
2 Dual-Band Antennas, 2.4GHz- 2*3.5dBi, 5GHz- 2*4dBi |
| Dimensions | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Power |
802.3af/at PoE, 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 12.3 W |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Yes |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD, Gigabit Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Linux |
| Certificates |
CE, FCC, RoHS |
#09047
867Mbps Wireless access point, 5GHz (TP-LINK CPE710)
- 802.11ac for up to 867Mbps on 5GHz wireless data rate
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
| Processor |
Qualcomm 750 MHz, MIPS 74Kc |
|---|---|
| Memory |
128 MB DDR2 RAM, 16 MB Flash |
| Standards |
IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac |
| Ports |
1 10/100/1000Mbps Shielded Ethernet Port (LAN0, Passive PoE in), 1 Reset Button |
| Wireless Configurations |
Pharos MAXtream TDMA Technology, 802.11a/n Modes, Selectable Channel Width 5/10/20/40MHz, Automatic Channel Selection, Transmission Power Control, Dynamic Frequency Selection (DFS), WDS Enable/Disable, SSID Broadcast Enable/Disable, Multi-SSID with VLAN Tagging (AP mode only), Distance/ACK Timeout Setting, Wireless MAC Address Filter |
| Security |
WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption |
| Wireless Advanced |
Beacon Interval/RTS Threshold/Fragmentation, Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Management |
Discovery and Remote Management via Pharos Control application, HTTP/HTTPS Web-based management, System Log, SNMP Agent(v2c), Ping Watch Dog, Dynamic DDNS, SSH Server |
| System Tools |
Wireless Signal Quality Indicators - Signal Strength/Noise/Transmit CCQ/CPU/Memory, Monitors - Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP, Spectrum Analyzer, Speed Test, Ping, Traceroute |
| Signal Rate |
Up to 300Mbps (40MHz, Dynamic), Up to 144.4Mbps (20MHz, Dynamic), Up to 72.2Mbps (10MHz, Dynamic), Up to 36.1Mbps (5MHz, Dynamic) |
| Receiver sensitivity |
802.11a 54M@ -75dBm 48M@ -76dBm 36M@ -83dBm 6-24M@ -95dBm, 802.11n MCS15 -73dBm, MCS14 -74dBm, MCS13 -76dBm, MCS12 -80dBm, MCS11 -83dBm, MCS10 -88dBm, MCS9 -90dBm, MCS8 -93dBm, MCS7 -73dBm, MCS6 -74dBm, MCS5 -76dBm, MCS4 -80dBm, MCS3 -83dBm, MCS2 -88dBm, MCS1 -90dBm, MCS0 -93dBm |
| Antenna | 23 dBi |
| Beam width | 9° (Azimuth)/7° (Elevation) |
| Dimensions | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Power Supply |
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins), Voltage range 16-27VDC |
| Protection |
15KV ESD Protection, 6000V Lightning Protection |
| Enclosure |
Outdoor ASA stabilized plastic material, IP65 water and dust proof design |
| Package Contents |
Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide |
| Operating temperatures | -40°C ÷ 70°C |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux. |
| Certificates |
CE, FCC, RoHS, IP65, IC |
| Manufacturer | Tp-Link |
#07018
Wireless access point Ubiquiti NanoBeam M5 (Ubiquiti NBE-5AC-Gen2)
| Standards | IEEE 802.11ac/n |
|---|---|
| Ports | 2x 10/100/1000 Mbps RJ-45 |
| Chipset |
Atheros MIPS 74Kc, 720 MHz |
| Operating memory | 128 MB DDR2 |
| Flash memory | 8 MB |
| Antenna |
build-in, 19 dBi |
| VSWR | 1.5 |
| Dimensions | 189 x 189 x 125 mm |
| Weight | 0.530 kg |
| Mounting | mast or wall with the aid of antenna wall support |
| Max. power consumption | 8.5 W |
| Power | PoE 24V 0.5A Gigabit PoE Adapter (Included) |
| Operating temperatures | -40°C ÷ 80°C |
| Operating humidity |
5% ÷ 95%, Non-condensing |
| Wind Loading | 45.4 N @ 200 km/h (10.2 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection Air |
± 24 kV, Contact ± 24 kV |
| Certifications |
CE, FCC, IC |
| RoHS Compliance | Yes |
| Salt Fog Test |
IEC 68-2-11 (ASTM B117), Equivalent MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test |
IEC 68-2-5 at 40° C (104° F), Equivalent ETS 300 019-1-4 |
| Wind-Driven Rain Test |
ETS 300 019-1-4, Equivalent MIL-STD-810 G Method 506.5 |
| Manufacturer | Ubiquiti |
#07004
Wireless Access Point Ubiquiti NanoStation 5 AC (Ubiquiti NS-5AC)
| Ports | 2x 10/100/1000 Mbps RJ-45 |
|---|---|
| Chipset |
Atheros MIPS 74Kc, 560 MHz |
| Operating memory | 64 MB DDR2 |
| Frequency range | 5150 MHz ÷ 5875 MHz |
| VSWR | 1.6 |
| Beam width | 45° |
| Dimensions | 257 x 84 x 41 mm |
| Weight | 233 g |
| Mounting | Pole-Mount (Kit Included) |
| Max. power consumption | 8,5 W |
| Power |
802.3af Alternative A (Pairs 1, 2+; 3, 6 Return), 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating temperatures | -40°C ÷ 70°C |
| Operating humidity |
5% ÷ 95%, non-condensing |
| Certificates |
CE, FCC, IC |
| Manufacturer | Ubiquiti |
#07005

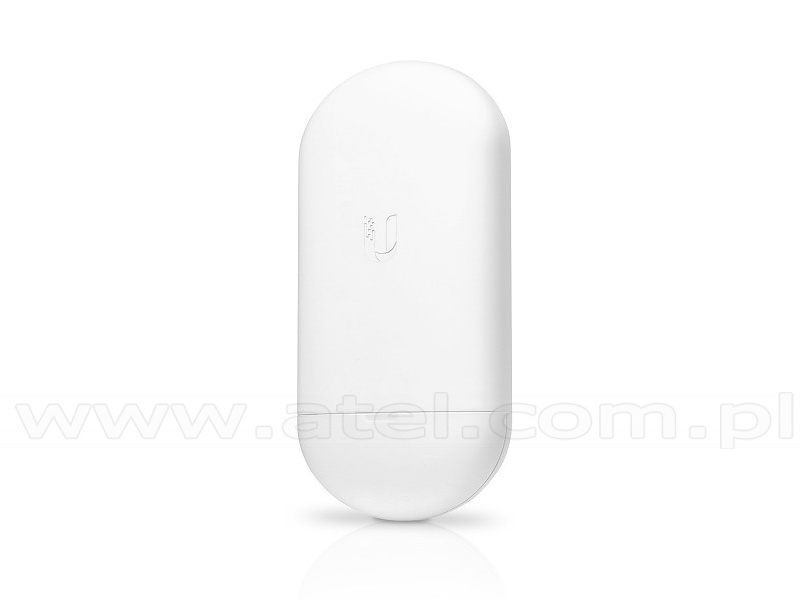

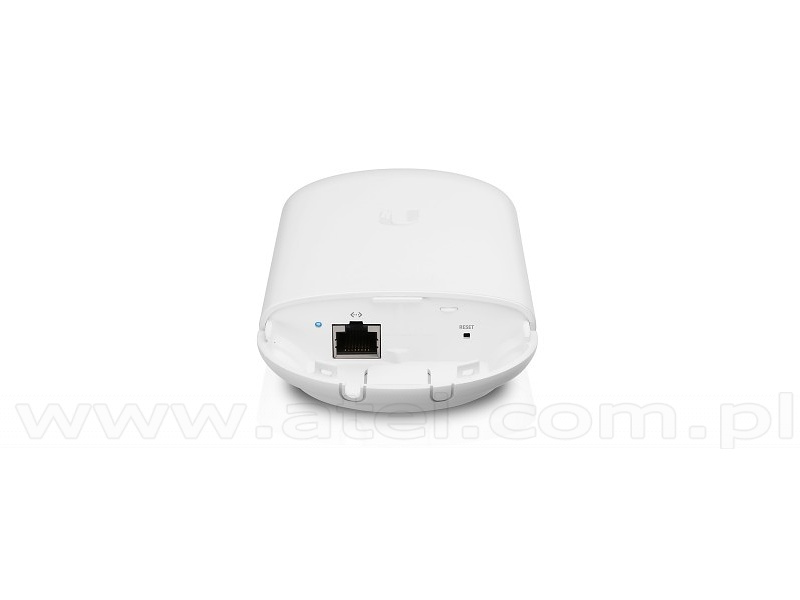

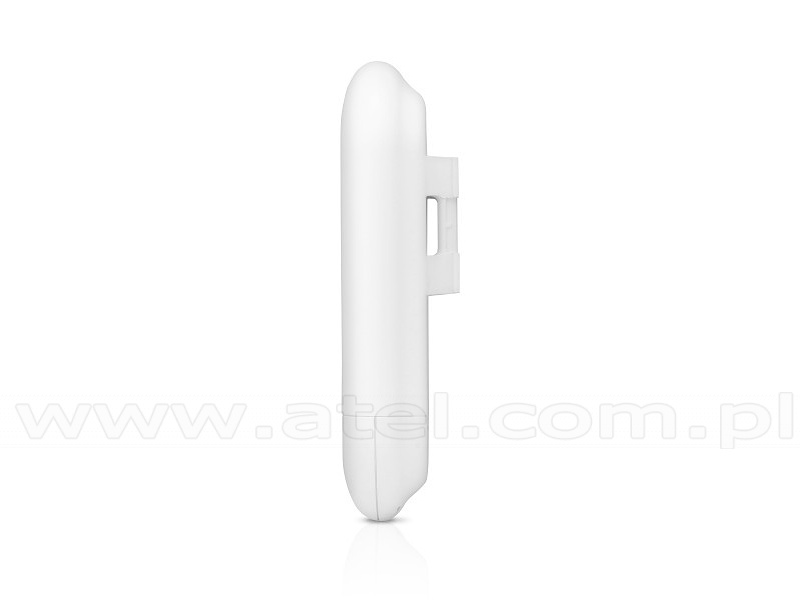

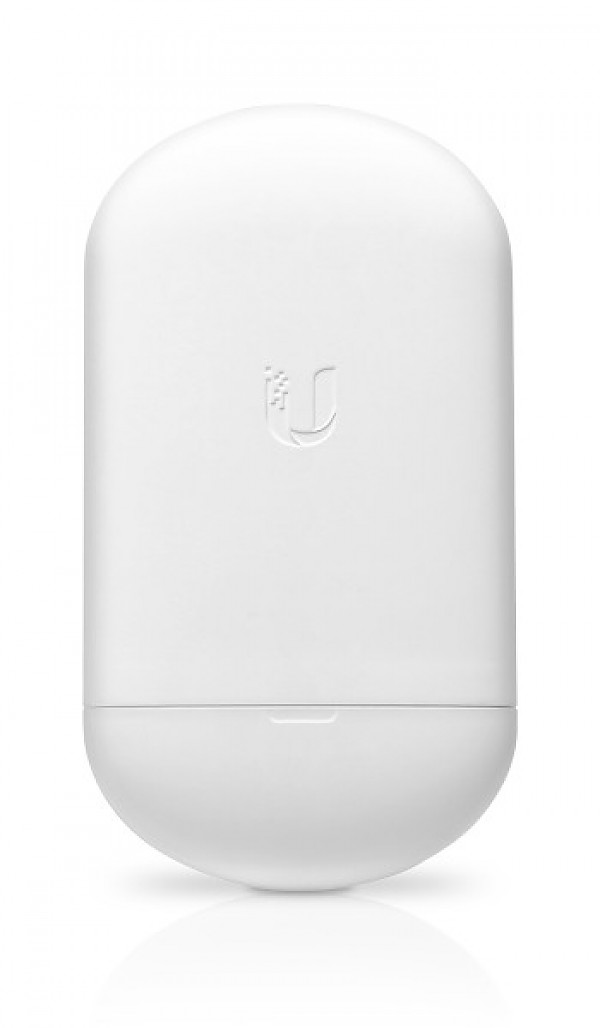

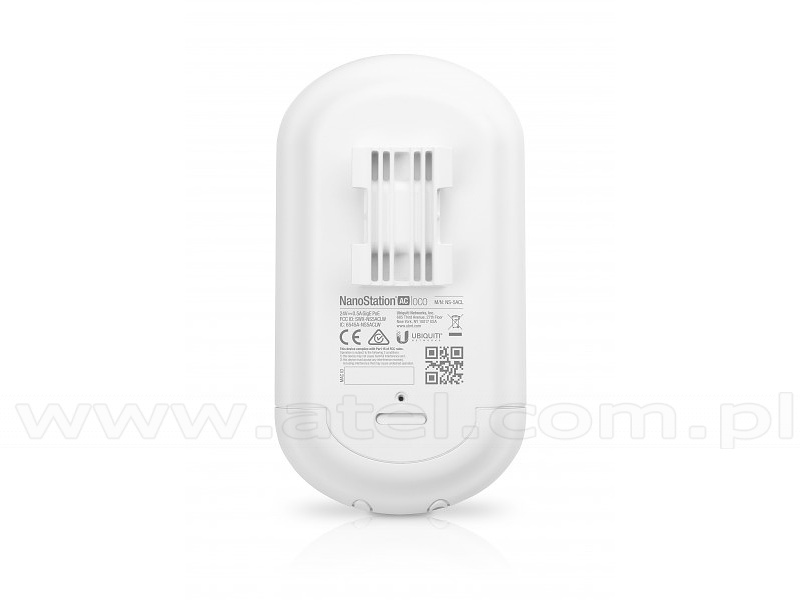

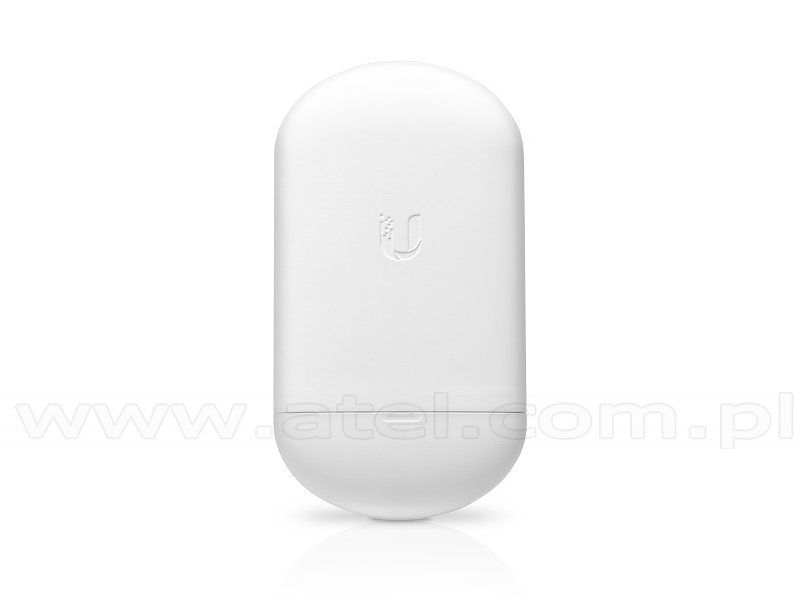

Wireless Access Point Ubiquiti NanoStation AC Loco (Ubiquiti NS-5ACL)
| Ports | 10/100/1000 Mbps RJ-45 |
|---|---|
| Chipset |
Atheros MIPS 74Kc, 560 MHz |
| Operating memory | 64 MB DDR2 |
| Frequency range | 5150 MHz ÷ 5875 MHz |
| VSWR | 1.8 |
| Beam width | 45° |
| Dimensions | 179 x 77.5 x 59.1 mm |
| Weight | 180 g |
| Mounting | Pole-Mount (Kit Included) |
| Max. power consumption | 8,5 W |
| Power |
24V, 0.5A Gigabit PoE Supply (The product is delivered without a power adapter) |
| Operating temperatures | -40°C ÷ 70°C |
| Operating humidity |
5% ÷ 95%, non-condensing |
| Certificates |
CE, FCC, IC |
| Manufacturer | Ubiquiti |
#07072 PoE 802.3af Adapter, POE-24-24W-G
#07039
Wireless Access Point Ubiquiti NanoStation AC Loco 5-pack (Ubiquiti NS-5ACL)
| Ports | 10/100/1000 Mbps RJ-45 |
|---|---|
| Chipset |
Atheros MIPS 74Kc, 560 MHz |
| Operating memory | 64 MB DDR2 |
| Frequency range | 5150 MHz ÷ 5875 MHz |
| VSWR | 1.8 |
| Beam width | 45° |
| Dimensions | 179 x 77.5 x 59.1 mm |
| Weight | 180 g |
| Mounting | Pole-Mount (Kit Included) |
| Max. power consumption | 8,5 W |
| Power |
24V, 0.5A Gigabit PoE Supply (The product is delivered without a power adapter) |
| Operating temperatures | -40°C ÷ 70°C |
| Operating humidity |
5% ÷ 95%, non-condensing |
| Certificates |
CE, FCC, IC |
| Manufacturer | Ubiquiti |
#07072 PoE 802.3af Adapter, POE-24-24W-G
#05349
Wireless Access Point Ubiquiti UniFi UAP AC M PRO, AC Mesh; (Ubiquiti UAP-AC-M-PRO)
| Networking Interface (Mbps) | 2 x 10/100/1000 Ethernet Ports |
|---|---|
| Buttons | Reset |
| Antennas | 3x Internal Dual-Band Antennas (8 dBi) |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | 802.3af PoE (Supported Voltage Range- 44 to 57VDC) |
| Power Supply |
48V, 0.5A Gigabit PoE Adapter |
| Maximum Power Consumption | 9 W |
| Maximum TX Power | 22 dBm |
| BSSID | Up to 8 per Radio |
| Dimensions | 343.2 x 181.2 x 60.2 mm |
| Weight | 633 g |
| Power Save | Supported |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications |
CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -40 ÷ 70° C |
| Operating Humidity | 5 ÷ 95% Condensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest traffic isolation | Supported |
| WMM |
Voice, Video, Best Effort, and Background |
| Concurrent Clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11ac |
6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n |
6.5 Mbps to 400 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| Manufacturer | Ubiquiti |
#05348
Wireless Access Point Ubiquiti UniFi UAP AC M, AC Mesh; (Ubiquiti UAP-AC-M)
| Networking Interface (Mbps) | 1 x 10/100/1000 Ethernet Ports |
|---|---|
| Buttons | Reset |
| Antennas |
2x External Dual-Band Omni Antennas (3 dBi, 4 dBi) |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method |
24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return), (Supported Voltage Range- 44 to 57VDC) |
| Power Supply |
24V, 0.5A Gigabit PoE Adapter |
| Maximum Power Consumption | 8,5 W |
| Maximum TX Power | 20 dBm |
| BSSID | Up to 8 per Radio |
| Dimensions | 353 x 46 x 34.4 mm |
| Weight | 152 g with Antennas |
| Power Save | Supported |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications |
CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -30 ÷ 70° C |
| Operating Humidity | 5 ÷ 95% Condensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest traffic isolation | Supported |
| WMM |
Voice, Video, Best Effort, and Background |
| Concurrent Clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11ac |
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| Manufacturer | Ubiquiti |
#05352
Wireless Access Point UniFi UAP AC Lite (Ubiquiti UAP-AC-Lite)
| Networking Interface (Mbps) | 1 x 10/100/1000 Ethernet Ports |
|---|---|
| Buttons | Reset |
| Antennas |
(1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz- 3 dBi, 5 GHz- 3 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method |
Passive Power over Ethernet (24V), 802.3af Supported |
| Power Supply |
24V, 0.5A PoE Adapter (Included) |
| Maximum Power Consumption | 6.5 W |
| Maximum TX Power |
2.4 GHz - 20 dBm, 5 GHz - 20 dBm |
| BSSID | Up to 8 Per Radio |
| Dimensions | 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24") |
| Weight | 170 g (185 g with Mounting Kits) |
| Power Save | Supported |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications |
CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 ÷ 70° C |
| Operating Humidity | 5 ÷ 95% Condensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest traffic isolation | Supported |
| WMM |
Voice, Video, Best Effort, and Background |
| Concurrent Clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac |
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Manufacturer | Ubiquiti |
#08871
Wireless Access Point UniFi UAP AC LR (Ubiquiti UAP-AC-LR)
Ideal for long-range deployments, the UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band.
The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high
transmit power does for connecting distant clients.
The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high
transmit power does for connecting distant clients.
| Networking Interface (Mbps) | 1 x 10/100/1000 Ethernet Ports |
|---|---|
| Buttons | Reset |
| Antennas |
(1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz- 3 dBi, 5 GHz- 3 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method |
Passive Power over Ethernet (24V), 802.3af Supported |
| Power Supply |
24V, 0.5A PoE Adapter (Included) |
| Maximum Power Consumption | 6.5 W |
| Maximum TX Power |
2.4 GHz - 30 dBm, 5 GHz - 22 dBm |
| BSSID | Up to Four Per Radio |
| Dimensions | 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") |
| Weight | 240 g (315 g with Mounting Kits) |
| Power Save | Supported |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications |
CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 ÷ 70° C |
| Operating Humidity | 5 ÷ 95% Condensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest traffic isolation | Supported |
| WMM |
Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac |
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Manufacturer | Ubiquiti |
#08352

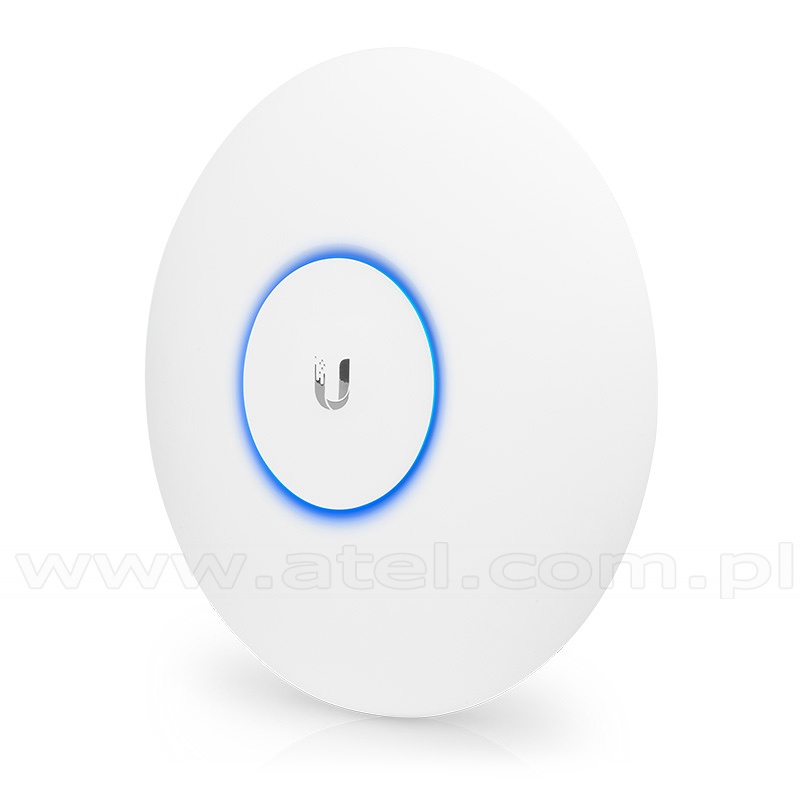

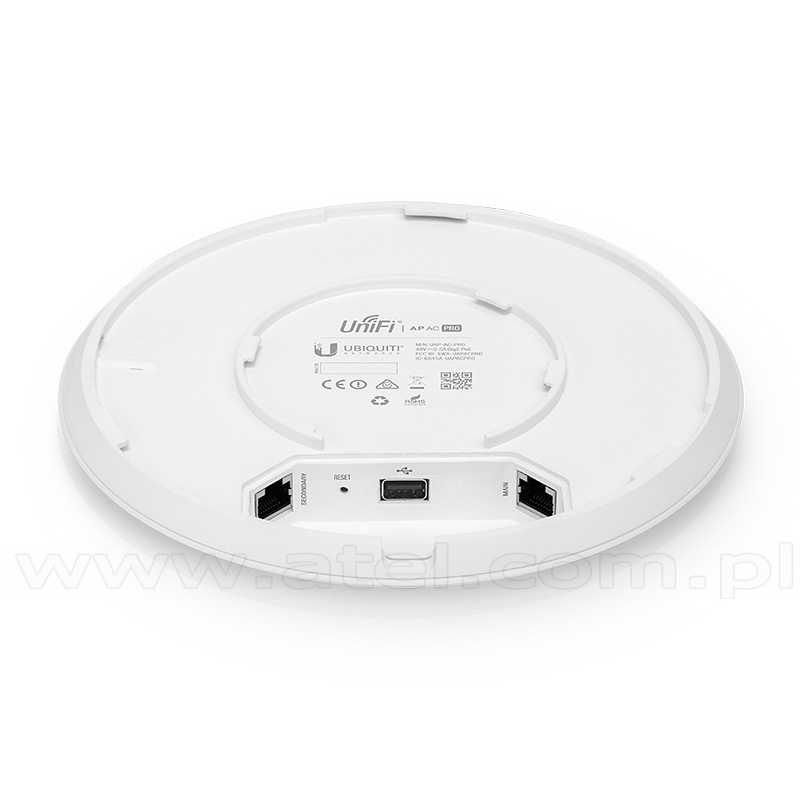

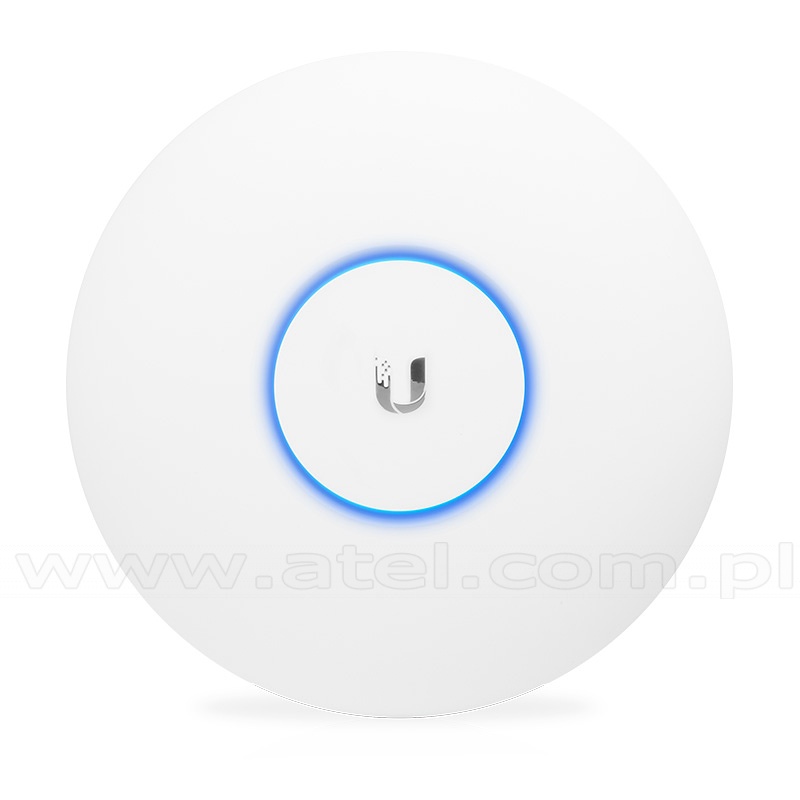

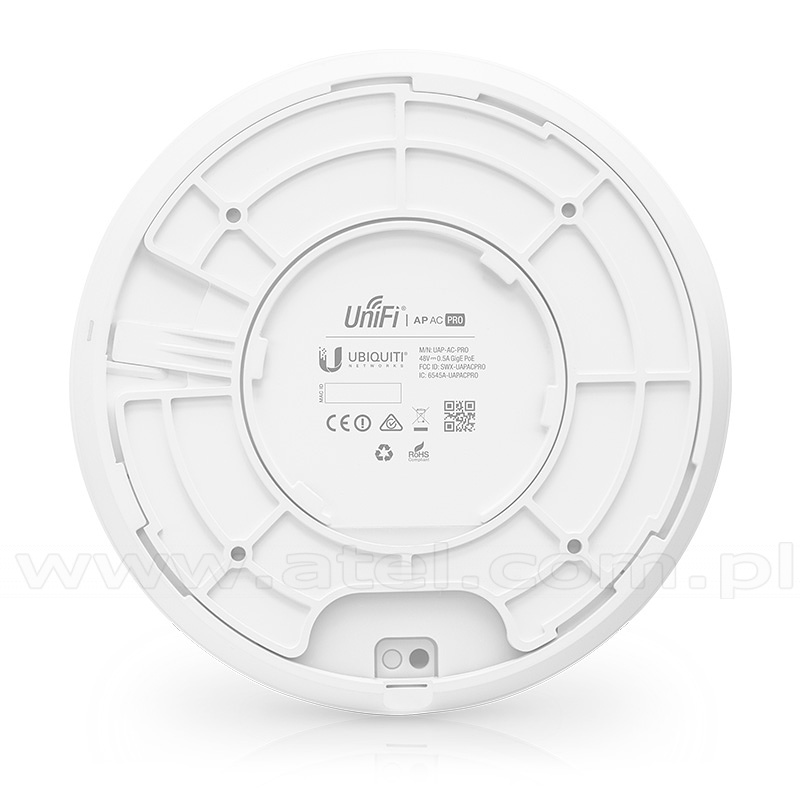

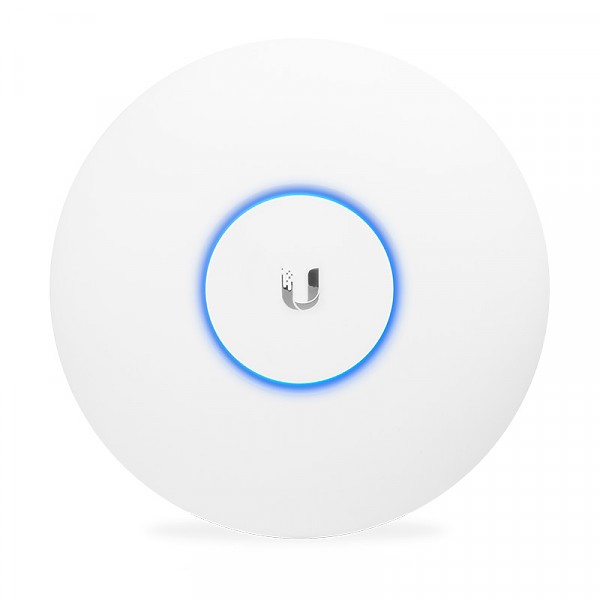

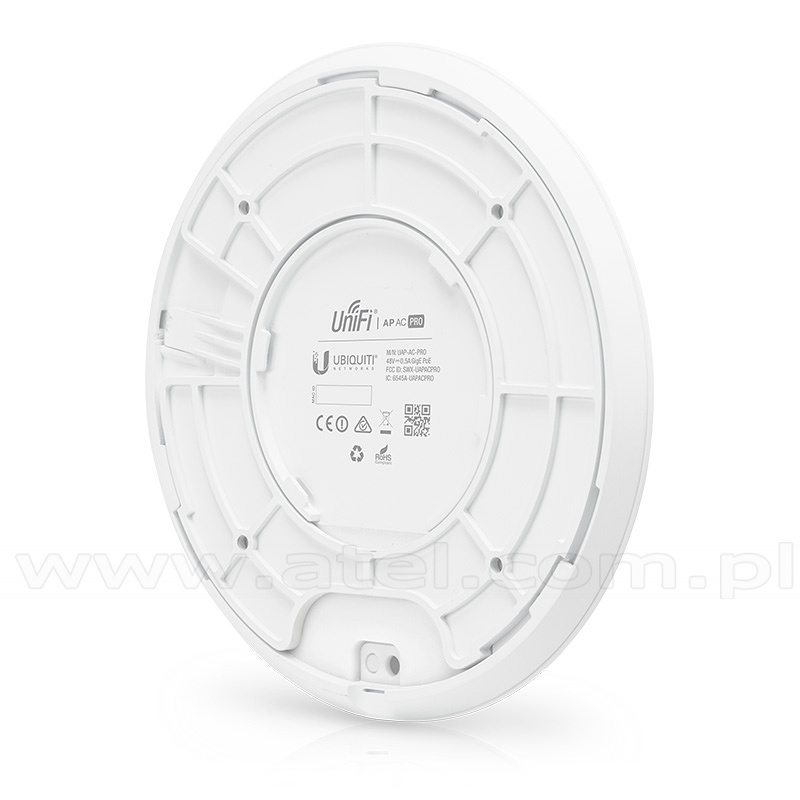

Wireless Access Point UniFi UAP AC PRO (Ubiquiti UAP-AC-PRO)
| Ports |
2 x 10/100/1000 Ethernet Ports, , 1x USB 2.0 Port |
|---|---|
| Buttons | Reset |
| Antennas |
(3) Dual-Band Antennas, 2.4 GHz- 3 dBi, 5 GHz- 3 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method |
Passive Power over Ethernet (48V), 802.3af/at Supported |
| Power Supply |
48V, 0.5A PoE Adapter (Included) |
| Maximum Power Consumption | 9 W |
| Maximum TX Power |
2.4 GHz - 22 dBm, 5 GHz - 22 dBm |
| BSSID | Up to 8 Per Radio |
| Dimensions | 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38") |
| Weight | 350 g (450 g with Mounting Kits) |
| Power Save | Supported |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications |
CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 ÷ 70° C |
| Operating Humidity | 5 ÷ 95% Condensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest traffic isolation | Supported |
| WMM |
Voice, Video, Best Effort, and Background |
| Concurrent Clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac |
6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Manufacturer | Ubiquiti |
#05356
Wireless Access Point UniFi UAP-AC-HD (Ubiquiti UAP-AC-HD)
- 802.11ac Wave 2 WiFi technology
- 5 GHz (4x4 MU-MIMO) band with a 1.7 Gbps throughput rate
- 2.4 GHz (4x4 MIMO) band with a 800 Mbps throughput rate
- Powered with 802.3at PoE+*
- (2) GbE RJ45 ports
- (1) USB port
Dual-band, 802.11ac Wave 2 access point designed to support high-density networks and critical system applications.
The Access Point AC HD (UAP AC HD) is a high-performance, indoor/outdoor, 802.11 ac WiFi access point that utilizes Wave 2 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (4x24MIMO) bands. The UAP AC HD also has a focused antenna pattern to enhance your network's capacity and reduce interference from neighboring access points. This access point is powered with 802.3at PoE+ and is equipped with (2) GbE RJ45 ports and (1) USB port to support multiple connection types. The UAP AC HD can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
| Networking Interface (Mbps) | 2 x 10/100/1000 Ethernet Ports |
|---|---|
| Buttons | Reset |
| Antennas |
2.4 GHz - (2) Dual-Port, Dual-Polarity Antennas, 3 dBi each (Supports 4x4 MIMO), 5 GHz - (2) Dual-Port, Dual-Polarity Antennas, 4 dBi each (Supports 4x4 MIMO) |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Power Method |
802.3at PoE+, UniFi Switch (PoE), 44 to 57VDC |
| Maximum Power Consumption | 17W |
| Maximum TX Power |
2.4 GHz - 6-25 dBm, 5 GHz - 6-25 dBm |
| BSSID | 8 per Radio |
| Dimensions | 220 x 220 x 48.1 mm |
| Weight | 700 g (830 g with Mounting Kits) |
| Power Save | Supported |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| Certifications |
CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 ÷ 70° C |
| Operating Humidity | 5 ÷ 95% Noncondensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest traffic isolation | Supported |
| WMM |
Voice, Video, Best Effort, and Background |
| Concurrent Clients | 1000+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac |
6.5 Mbps to 1.7 Gbps (MCS0 ‑ MCS9 NSS1/2/3/4, VHT 20/40/80), 58 Mbps to 1.7 Gbps (MCS0 ‑ MCS9 NSS1/2, VHT 160) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
#05353
Wireless Access Point UniFi UAP-nanoHD (Ubiquiti UAP-nanoHD)
- Four-stream, 802.11ac Wave 2 WiFi technology
- 5 GHz (4x4 MU-MIMO) band with a 1.733 Gbps throughput rate
- 2.4 GHz (2x2 MIMO) band with a 300 Mbps throughput rate
- 200+ concurrent client capacity
- Powered by 802.3af PoE (PoE injector included with single pack)
Dual-band, 802.11ac Wave 2 access point that can support over 200 clients with its 2+ Gbps aggregate throughput rate.
The Access Point nanoHD (UAP nanoHD) is a compact, dual-band access point that can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (2x2 MIMO) bands. The UAP nanoHD can also support over 200 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. With its elegant, nano-sized design, this access point can be staged virtually anywhere indoors where you'd like to enhance your wireless speed and performance. Built for plug-and-play simplicity, the UAP nanoHD can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
| Networking Interface (Mbps) | 1 x 10/100/1000 Ethernet Ports |
|---|---|
| Buttons | Reset |
| Antennas |
2.4 GHz - (2) Single-Port, Single-Polarity Antennas, 2.8 dBi each (Supports 2x2 MIMO), 5 GHz - (2) Single-Port, Dual-Polarity Antennas, 3 dBi each (Supports 4x4 MIMO) |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Power Method |
802.3af PoE, UniFi Switch (PoE) |
| Maximum Power Consumption | 10.5W |
| Maximum TX Power |
2.4 GHz - 23 dBm, 5 GHz - 26 dBm |
| BSSID | 8 per Radio |
| Dimensions | 160 x 160 x 32.65 mm |
| Weight | 300 g (315 g with Mounting Kits) |
| Power Save | Supported |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| Certifications |
CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 ÷ 70° C |
| Operating Humidity | 5 ÷ 95% Noncondensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest traffic isolation | Supported |
| WMM |
Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac |
6.5 Mbps to 1.7 Gbps (MCS0 ‑ MCS9 NSS1/2/3/4, VHT 20/40/80), 58 Mbps to 1.7 Gbps (MCS0 ‑ MCS9 NSS1/2, VHT 160) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
#07001
Wireless Base Station LiteBeam 5AC Gen2 (Ubiquiti LBE-5AC-GEN2)
| Ports | 1x 10/100/1000 Mbps RJ-45 |
|---|---|
| Operating modes |
Access Point, Bridge, Client, WDS |
| Processor | MIPS 74Kc |
| Operating memory | 64 MB DDR2 |
| Frequency range | 5150 MHz ÷ 5875 MHz |
| Gain | 23 dBi |
| Antenna |
detachable, 2x SMA-RP(F) |
| Dimensions | 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73") |
| Weight |
800 g (1.76 lb), With Mount 980 g (2.16 lb) |
| Mounting | Pole-Mounting Kit (Included) |
| Max. power consumption | 7 W |
| Power |
24V, 0.3A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ± 10% |
| Wind Loading | 275 N @ 200 km/h (61.8 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating temperatures | -40°C ÷ 70°C |
| Operating humidity |
5% ÷ 95%, non-condensing |
| Certificates |
CE, FCC, IC |
| Manufacturer | Ubiquiti |
#09069
Wireless N Access Point AC1200(TP-Link TL-WA1201)
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
- Captive Portal – Offers a designed portal page for heightened security and marketing.
| Standards |
IEEE 802.11n, IEEE 802.11b/g 2,4 GHz, IEEE 802.11ac/n/a 5 GHz |
|---|---|
| Ports | 1x 10/100/1000 Mbps RJ-45 PoE (LAN) |
| Frequency range | 2,4 GHz and 5 GHz |
| Modulation |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Operating modes |
AP Mode, Multi-SSID Mode, AP Client Mode, Repeater Mode (WDS / Universal), AP+ Bridge mode |
| Max. speed |
1200 Mbps (867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz) |
| EIRP |
CE <20 dBm (2,4 GHz), <23 dBm (5,15 GHz~5,25 GHz), FCC <30 dBm (2,4 GHz & 5 GHz) |
| Antenna | 4 Fixed High Performance Antennas |
| WLAN security |
WEP 64/128/152-bit, WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP, AES |
| WLAN features |
3T3R MIMO, CCA, QSS button, 4x SSIDs, VLAN support |
| Auto MDI/MDIX | yes |
| Dimensions | 400×255×72 mm |
| Operating temperatures | 0°C ÷ 40°C |
| Operating humidity |
5% ÷ 90%, non-condensing |
| Power | 12 V/1,5 A |
| Certificates |
CE, FCC, RoHS |
| Manufacturer | TP-Link |
#09104
1200Mbps Wireless Gigabit Router Dual-band AC1200 (TP-Link Mercusys AC12G)
- AC1200 dual band Wi-Fi — speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
- Full gigabit ports — lightning-fast connections for wired devices, including game consoles, STBs, smart TVs and more
- Share with up to 60 devices — internet access for multiple streaming simultaneously
- 4 high gain external antennas — powerful wireless coverage throughout your house
- Easy installation — intuitive webpage guides you through the setup process in minutes
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
3 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 9V/0.85A |
| Dimensions (W X D X H) | 222 x 140 x 32 mm |
| Antenna | 4× 5 dBi |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP | < 20 dBm |
| Reception Sensitivity |
5 GHz - 11a 6M -92 dBm, 11a 54M -75 dBm, 11ac 20M MCS8 -70 dBm, 11ac 40M MCS9 -64 dBm, 11ac 80M MCS9 -60 dBm, 2,4 GHz - 11g 6M -95 dBm, 11g 54M -77 dBm, 11n 20M MCS7 -74 dBm, 11n 40M MCS7 -71 dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | WPA-PSK / WPA2-PSK |
| SOFTWARE | |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management |
Access Control, Local Management, Remote Management |
| DHCP | Server |
| Port Forwarding |
Virtual Server, UPnP, DMZ |
| Dynamic DNS |
NO-IP, DynDNS |
| Firewall Security | IP and MAC Address Binding |
| Guest Network |
2.4GHz Guest Network, 5GHz Guest Network |
| OTHERS: | |
| Certifications |
CE, ROHS |
| Package Contents |
AC1200 Wireless Dual Band Router AC12G, Power Adapter, Quick Installation Guide, Ethernet Cable |
| Environment |
Operating Temperature 0°~40° (32°~104°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#04610
1200Mbps Wireless Gigabit Router Dualband 1200AC, ADSL2+ (TP-Link Archer VR400)
- Speedy Wi-Fi – Superb wireless experience with 300Mbps (2.4GHz) + 867Mbps (5GHz) dual band Wi-Fi connections
- Superior Range – Three detachable antennas provide stable wireless connections and optimal coverage
- Versatile Connectivity – Fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fiber, cable and 3G/4G Internet services
- Beamforming Technology – Improves wireless range and performance at 5GHz band
- USB Port – Supports storage and print service sharing, FTP and media servers as well as 3G/4G dongle
- Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
1x10/100/1000Mbps RJ45 WAN/LAN Port, 3x10/100/1000Mbps RJ45 LAN Ports, 1xRJ11 Port, 1xUSB 2.0 Port |
| Button |
1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS Button, 1 RESET Button |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| External Power Supply | 12VDC / 1.5A |
| Dimensions (W X D X H) | 243,5×167,5×32,7mm |
| Antenna Type | 3 External detachable dual band antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
<20dBm(EIRP), 5GHz <23dBm(EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| Operating Modes |
ADSL Modem Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
ATM QoS, Traffic Control(IP QoS) |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ, ALG |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| ATM Features |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| Security |
NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
| Advanced Functions |
Parental Control, Network Address Translation (NAT); Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| IPv6 | IPv6 and IPv4 dual stack |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Archer VR400, External Splitter, RJ-11 Telephone Cable, RJ-45 Ethernet Cable, Power Adapter, Quick Installation Guide |
| System Requirements | Windows 8/7/Vista/XP or Mac OS or Linux-based operating system. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09084
1200Mbps Wireless Gigabit Router Dualband 1200AC, VDSL/ADSL+ (TP-Link Archer VR300)
- Parental Controls: manage responsible internet access for your children
- Guest Network|: provides separate access for guests while securing the home network
- Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
- Quality of Service: prioritizes network traffic by device or application
- IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application
- IPv6: compatible with IPv6 (Internet Protocol version 6)
- Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
1x10/100Mbps RJ45 WAN/LAN Port, 3x10/100Mbps RJ45 LAN Ports, 1xRJ11 Port, |
| Button |
1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS Button, 1 RESET Button |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| External Power Supply | 12VDC / 1A |
| Dimensions (W X D X H) | 385*290*76mm |
| Antenna Type | 4 fixed external antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
<20dBm(EIRP), 5GHz <23dBm(EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| Operating Modes |
ADSL Modem Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
ATM QoS, Traffic Control(IP QoS) |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ, ALG |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| ATM Features |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| Security |
NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
| Advanced Functions |
Parental Control, Network Address Translation (NAT); Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| IPv6 | IPv6 and IPv4 dual stack |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Archer VR300, External Splitter, RJ-11 Telephone Cable, RJ-45 Ethernet Cable, Power Adapter, Quick Installation Guide |
| System Requirements |
Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#06238
1200Mbps Wireless Gigabit Router Dualband AC1200 (TP-Link Archer C6)
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
- 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
- Supports Access Point mode to create a new Wi-Fi access point
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port |
| Button |
WPS Button, Wireless On/Off Button, Reset Button, On/Off Button |
| External Power Supply | 12V/1A |
| Dimensions (W X D X H) | 230 × 144 × 35 mm (9,1 × 5,7 × 1,4 in.) |
| Antenna | 3 external detachable dual band antennas (RP-SMA) |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP | CE EIRP <20dBm(2.4GHz); <23dBm(5GHz) |
| Reception Sensitivity |
5GHz - 11a 6Mbps-93dBm, 11a 54Mbps -78dBm, 11ac HT20 -69dBm, 11ac HT40 -65dBm, 11ac HT80 -62dBm, 2.4GHz - 11g 54M -78dBm, 11n HT20 -74dBm, 11n HT40 -71dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Wireless Router Archer C6, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09080
1200Mbps Wireless Gigabit Router Dualband AC1200 (TP-Link Archer C6U)
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
- 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
- Beamforming technology delivers wider wireless coverage
- Supports Access Point mode to create a new Wi-Fi access point
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port, 1 USB 2.0 Port |
| Button |
WPS Button, Wireless On/Off Button, Reset Button, On/Off Button |
| External Power Supply | 12V/1A |
| Dimensions (W X D X H) | 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) |
| Antenna | 3 external detachable dual band antennas (RP-SMA) |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP | CE EIRP <20dBm(2.4GHz); <23dBm(5GHz) |
| Reception Sensitivity |
5GHz - 11a 6Mbps-93dBm, 11a 54Mbps -78dBm, 11ac HT20 -69dBm, 11ac HT40 -65dBm, 11ac HT80 -62dBm, 2.4GHz - 11g 54M -78dBm, 11n HT20 -74dBm, 11n HT40 -71dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Wireless Router Archer C6U, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
_1.0-350x240x82-m-7022506588_large_1611644217169c.jpg?1623913875)
#04571
1200Mbps Wireless Router Dual-band AC1200 (TP-Link Archer C50)
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth
- 2 dual band external antennas provide stable wireless connections and optimal coverage
- USB Port - easily share a printer locally and files & media with networked devices or remotely via FTP server
- Easy network management at your fingertips with TP-LINK Tether
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port, 1 USB 2.0 Port |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button |
| External Power Supply | 12VDC / 1.5A |
| Dimensions (W X D X H) | 182.95 x 123.5 x 32.1mm (7.2 x 4.9 x 1.3 in.) |
| Antenna | 2 Detachable Antennas RP-SMA |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP | <20dBm(EIRP) |
| Reception Sensitivity |
5GHz - 11a 54Mbps -76dBm, 11ac HT20 -70dBm, 11ac HT40 -65.5dBm, 11ac HT80 -61.5dBm, 2,4GHz - 11g 54M -76dBm, 11n HT20 -74dBm, 11n HT40 -71dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Archer C50, 2 antennas, Power supply unit, Quick Installation Guide, Ethernet Cable |
| System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09079
1200Mbps Wireless Router Dual-band AC1200 (TP-Link Archer C54)
- Faster AC Wi-Fi—AC1200 dual-band is ideal for 4K video streaming and high-speed downloading.
- Far-Reaching Coverage—4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
- Multi-Mode 3-in-1—Supports Router, Access Point, and Range Extender modes for added flexibility.
- Parental Controls—Manages when and how connected devices can access the internet.
- Guest Network—Provides separate access for guests in order to secure the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 9VDC / 0.85A |
| Dimensions (W X D X H) | 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm) |
| Antenna | 4 Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dB |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Archer C54, Power supply unit, Quick Installation Guide, Ethernet Cable |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09102
1200Mbps Wireless Router Dual-band AC1200 (TP-Link Mercusys AC10)
- High-Speed Wi-Fi – Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band)
- 4 High-Gain External Antennas – Receive strong Wi-Fi signals in every corner of your home
- Easy Installation – Set up in minutes guided by an intuitive web UI
- Active Parental Controls – Protect your family by setting appropriate access policies for responsible, safe internet use
- Multi-Mode — Access Point Mode, Range Extender Mode, and Router Mode supported to satisfy all application scenarios
- IPTV and IPv6 Supported
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
2 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 9V/0.85A |
| Dimensions (W X D X H) | 4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm) |
| Antenna | 4× 5 dBi Fixed Omni-Directional Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
2,4 GHz < 20 dBm (EIRP), 5 GHz < 23 dBm (EIRP) |
| Reception Sensitivity |
11g 6 Mb/s -96 dBm, 11g 54 Mb/s -78 dBm, 11n HT40 MCS7 -74 dBm, 11n HT20 MCS7 -71 dBm, 11a 6 Mb/s -97 dBm, 11a 54 Mb/s -79 dBm, 11ac VHT20 MCS8 -74 dBm, 11ac VHT40 MCS9 -70 dBm, 11ac VHT80 MCS9 -65 dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM |
| Wireless Security |
WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| OTHERS: | |
| Package Contents |
AC1200 Wireless Dual Band Router AC10, Power Adapter, Quick Installation Guide, Ethernet Cable |
| Environment |
Operating Temperature 0°~40° (32°~104°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
1.0_02_large20200616070059.jpg?1619792235)
1.0_03_large20200616070109.jpg?1619790551)
#09103
1200Mbps Wireless Router Dual-band AC1200 (TP-Link Mercusys AC12)
- Supports 802.11ac standard - the next generation of Wi-Fi
- Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi
- 4 External Antennas Greatly Expand Wireless Coverage
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- Easy installation - intuitive webpage guides you through the setup process in minutes
- IPTV and IPv6 Supported
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
3 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 9V/0.85A |
| Dimensions (W X D X H) | 222 x 140 x 32 mm |
| Antenna | 4× 5 dBi |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP | < 20 dBm |
| Reception Sensitivity |
5 GHz - 11a 6M -92 dBm, 11a 54M -75 dBm, 11ac 20M MCS8 -70 dBm, 11ac 40M MCS9 -64 dBm, 11ac 80M MCS9 -60 dBm, 2,4 GHz - 11g 6M -95 dBm, 11g 54M -77 dBm, 11n 20M MCS7 -74 dBm, 11n 40M MCS7 -71 dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | WPA-PSK / WPA2-PSK |
| SOFTWARE | |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management |
Access Control, Local Management, Remote Management |
| DHCP | Server |
| Port Forwarding |
Virtual Server, UPnP, DMZ |
| Firewall Security | IP and MAC Address Binding |
| Guest Network |
2.4GHz Guest Network, 5GHz Guest Network |
| OTHERS: | |
| Certifications |
CE, ROHS |
| Package Contents |
AC1200 Wireless Dual Band Router AC12, Power Adapter, Quick Installation Guide, Ethernet Cable |
| Environment |
Operating Temperature 0°~40° (32°~104°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#09192
1200Mbps Wireless Router Dual-band AC1200 (TP-Link Mercusys MR30G)
- AC1200 Gigabit WiFi – Enjoy home entertainment without any lag, reaching speeds up to 1.2 Gbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Broader Coverage – 4× high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Higher Network Efficiency – MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device
- Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness
- IPTV Supported – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
-IPv6 Supported – Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
2 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port, |
| Button | WPS/Reset Button |
| Dimensions (W X D X H) | 6.3 × 5.0 × 1.5 in (159.7 × 125.9 × 37.1 mm) |
| Antenna | 4 Fixed Omni Directional Antennas (5dBi) |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps |
| EIRP | <20dBm(EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | WPA-PSK / WPA2-PSK |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access) |
| Management |
Access Control, Local Management, Remote Management |
| DHCP | Server |
| Port Forwarding |
Virtual Server, UPnP, DMZ |
| Firewall Security | IP and MAC Address Binding |
| Protocols |
IPv4, IPv6 |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Package Contents |
MR30G, Power supply unit, Quick Installation Guide, Ethernet Cable |
#09185
1200Mbps Wireless Router Dual-band AC1200, MU-MIMO (TP-Link Archer C64)
- 802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band
- Boosted WiFi Coverage – 4 antennas provide stable wireless connections and optimal coverage
- MU-MIMO – Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once‡
- Beamforming – Beamforming technology delivers a highly efficient wireless connection
- AP Mode – Supports Access Point mode to create a new WiFi access point
- Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage
- Easy Setup – Easy network management at your fingertips with TP-Link Tether
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 12VDC / 1A |
| Dimensions (W X D X H) | 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm) |
| Antenna | 4 Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 400Mbps |
| EIRP |
CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dB |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Archer C64, Power supply unit, Quick Installation Guide, Ethernet Cable |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09254
1300Mbps Wireless Router Dual-band AC1300, MU-MIMO (TP-Link EC225-G5)
- Faster WiFi for More Devices: 2.4 GHz and 5 GHz bands run at fast AC1300 Wi-Fi speeds to deliver more bandwidth and support more devices in your home.
- Full Gigabit Ports: Enjoy fast, reliable wired connections for gaming and streaming in the best quality.
- Extensive Coverage: Beamforming, and four antennas combine to deliver focused reception to devices far away.
- EasyMesh Compatible: Provides whole home Wi-Fi coverage with standard mesh technology.†
- Enhanced Protection: Protect your network with firewalls, parental controls, and the latest WPA3 encryption.
- Easy Setup: Set up your router in minutes with the intuitive web interface or the powerful Aginet app.
- Remote Management: TR-181, TR-111, TR-104, and TR-143 are supported.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
3 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port |
| Button |
WPS/Reset Button, Power On/Off Button |
| External Power Supply | 12VDC / 1A |
| Dimensions (W X D X H) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
| Antenna | 4 Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 400Mbps |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
| OTHERS: | |
| Certification |
CE, RoHS |
| Package Contents |
AC1300 MU-MIMO Wi-Fi Router EC225-G5, Power Adapter, Quick Installation Guide, Ethernet Cable |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~60° (-40°~140°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09320
1500Mbps Wireless Gigabit Router Dual-band AX1500, MU-MIMO (TP-Link EX141)
- 1.5 Gbps WiFi Speeds: Enjoy faster browsing, streaming, and downloading across two bands.
- Connect More, Stay Fast: Equipped with the latest WiFi 6 wireless technology for faster speeds, greater capacity, and reduced network congestion.
- Extensive Coverage: Beamforming and four antennas combine to deliver focused reception to devices far away.
- EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.
- Enhanced Security: Protect your network with firewalls and the latest WPA3 encryption.
- Easy Setup: Set up your network in minutes with the powerful Aginet app.
- Remote Management: TR-069, TR-098, TR-181, TR-111, and TR-143 protocols are supported.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |
3 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port, |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button, LED On/Off |
| Power Supply | 12V/1A |
| Dimensions (W X D X H) | 7.2 × 3.7 × 1.3 in (182.7 × 94 × 33.3 mm) |
| Antenna | 4 × External Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 300 Mbps (802.11n) |
| Wireless Functions |
Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service | Advanced Gaming Qos powered by TrendMicro |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8/8.1/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09322
1500Mbps Wireless Gigabit Router Dual-band AX1500, MU-MIMO (TP-Link Marcusys MR60X)
- Upgrade Your Network with Wi-Fi 6 – MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions.
- Faster 1.5 Gbps Speeds - Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Improved Network Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
- Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Overall Security Protection – The latest WPA3 provides improved WiFi security
- Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
- Smart Connect– Intelligently chooses the best available band for each device
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/b/g/n 2.4GHz, Wi-Fi 6 |
| Interface |
2 10/100/1000Mbps LAN Ports, 1 1G/100Mbps WAN Port |
| Button | WPS/Reset Button |
| Dimensions (W X D X H) | 6,9 × 6,2 × 1,8 in (175,6 × 157,2 × 45 mm) |
| Antenna | 4× 5 dBi Fixed Omni-Directional Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5 GHz@ 1201 Mbps (802.11ax), 2.4 GHz@ 400 Mbps (802.11ax) |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM |
| Wireless Security | WPA-PSK / WPA2-PSK/ WPA3 |
| SOFTWARE FEATURES: | |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List |
| NAT Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall Security |
SPI Firewall, IP and MAC Address Binding |
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
| VPN Passthrough |
OpenVPN, PPTP supported |
| OTHERS: | |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#09042
1900Mbps Wireless Router Dual-band AC1900 (TP-Link Archer C80)
- 802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.
- 3×3 MIMO Technology – Transmitting and receiving data on three streams to pair flawlessly with your 3×3 clients.
- Boosted Wi-Fi Coverage – Beamforming technology delivers a highly efficient wireless connection.
- MU-MIMO – To help your devices achieve optimal performance by making communication more efficient.
- Personalized Management – Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management.
- Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port, |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button |
| External Power Supply | 12VDC / 1A |
| Dimensions (W X D X H) | 8.5 × 4.6 × 1.26 in (215 × 117 × 32 mm) |
| Antenna | 4 Fixed Omni Directional Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 1300Mbps, 2.4GHz Up to 600Mbps |
| EIRP | <20dBm(EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Archer C80, 2 antennas, Power supply unit, Quick Installation Guide, Ethernet Cable |
| System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7,8,10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09108
1900Mbps Wireless Router Dual-band AC1900 (TP-Link Mercusys MR50G)
- AC1900 Dual Band Speeds – Enjoy home entertainment without any lag, reaching speeds up to 1900 Mbps (1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band)
- Far-Reaching Coverage – 6× high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Higher Network Efficiency – MU-MIMO technology allows MR50G to communicate with multiple devices at the same time, increasing the overall network throughput
- Smart Connect– Intelligently chooses the best available band for each device
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
2 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port, |
| Button | WPS/Reset Button |
| External Power Supply | 12VDC / 1A |
| Dimensions (W X D X H) | 175.6 x 157.2 x 45 mm |
| Antenna | 6 Fixed Omni Directional Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 1300Mbps, 2.4GHz Up to 600Mbps |
| EIRP | <20dBm(EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | WPA-PSK / WPA2-PSK |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access) |
| Management |
Access Control, Local Management, Remote Management |
| DHCP | Server |
| Port Forwarding |
Virtual Server, UPnP, DMZ |
| Firewall Security | IP and MAC Address Binding |
| Protocols |
IPv4, IPv6 |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Package Contents |
MR50G, Power supply unit, Quick Installation Guide, Ethernet Cable |
#09045
2100Mbps Wireless Gigabit Router Dualband 2100AC, ADSL, MU-MIMO (TP-Link Archer VR2100)
- Super VDSL – The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350 Mbps
- Ultra-Fast Speed –Surpasses the Wi-Fi speed limits of the previous generation, reaching up to 1733 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- 4×4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
- Whole-Home Coverage with OneMeshTM – Co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
- Lightning-Fast Wired Connection – USB 3.0 port and four Gigabit Ethernet ports run up to 10x faster than the previous generation to unleash your home entertainment
- TP-Link Tether App – Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
4x10/100/1000Mbps RJ45 LAN Ports, 1xRJ11 Port, 2xUSB 2.0 Ports |
| Button |
1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS Button, 1 RESET Button |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| External Power Supply | 12VDC / 1.5A |
| Dimensions (W X D X H) | 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm) |
| Antenna Type | 3 External Dual Band Antennas + 1 Internal 5 GHz Antenna |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 1733Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
<20dBm(EIRP), 5GHz <23dBm(EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| Operating Modes |
ADSL Modem Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
ATM QoS, Traffic Control(IP QoS) |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ, ALG |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| ATM Features |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| Security |
NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
| Advanced Functions |
Parental Control, Network Address Translation (NAT); Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| IPv6 | IPv6 and IPv4 dual stack |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Archer VR2100, External Splitter, RJ-11 Telephone Cable, RJ-45 Ethernet Cable, Power Adapter, Quick Installation Guide |
| System Requirements | Windows 10/8/7/Vista/XP or Mac OS or Linux-based operating system. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#04686
3G/4G Wireless AC1200 Router, 1200Mbps (TP-Link Archer MR400)
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
- Powerful, integrated antennas provide stable wireless connections and better coverage
- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band
- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
| HARDWARE FEATURES: | |
|---|---|
| Interface |
1 10/100Mbps LAN/WAN Port, 3 10/100Mbps LAN Ports, 1 SIM Card Slot |
| Button |
WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
| External Power Supply | 12VDC/1A |
| Dimensions ( W x D x H ) | 7.95 x 5.71 x 1.34 in. (202 x 145 x 34 mm) |
| Antenna Type |
3 Internal Wi-Fi Antennas, , 2 Detachable External 4G LTE Antennas |
| WIRELESS FEATURES: | |
| Wireless Standards |
IEEE 802.11ac/n/a, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4GHz and 5GHz |
| EIRP |
<20dBm, <23dBm(5GHz) |
| Signal Rate |
300Mbps at 2.4GHz, 867Mbps at 5GHz |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| SOFTWARE FEATURES: | |
| Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| Network Type |
4G FDD-LTE Cat4 (800/900/1800/2100/2600MHz), TDD-LTE (2300/2600MHz), 3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz), 2G EDGE/GPRS/GSM (850/900/1800/1900MHz) |
| OTHERS: | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
3G/4G Wireless AC Router, 1 Antenna, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide, Micro to Standard SIM Card Adapter, Nano to Standard SIM Card Adapter |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#04604
3G/4G Wireless AC750 Router, 750Mbps (TP-Link Archer MR200)
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
- Powerful, integrated antennas provide stable wireless connections and better coverage
- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band
- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
| HARDWARE FEATURES: | |
|---|---|
| Interface |
1 10/100Mbps LAN/WAN Port, 3 10/100Mbps LAN Ports, 1 SIM Card Slot |
| Button |
WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
| External Power Supply | 12VDC/1A |
| Dimensions ( W x D x H ) | 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
| Antenna Type |
3 Internal Wi-Fi Antennas, , 2 Detachable External 4G LTE Antennas |
| WIRELESS FEATURES: | |
| Wireless Standards |
IEEE 802.11ac/n/a, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4GHz and 5GHz |
| EIRP |
<20dBm, <23dBm(5GHz) |
| Signal Rate |
300Mbps at 2.4GHz, 433Mbps at 5GHz |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| SOFTWARE FEATURES: | |
| Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| Network Type |
4G FDD-LTE Cat4 (800/900/1800/2100/2600MHz), TDD-LTE (2300/2600MHz), 3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz), 2G EDGE/GPRS/GSM (850/900/1800/1900MHz) |
| OTHERS: | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
3G/4G Wireless AC Router, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide, Micro to Standard SIM Card Adapter, Nano to Standard SIM Card Adapter |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#09212
3G/4G+ Cat6 Wireless AC1200 Router, 1200Mbps (TP-Link Archer MR500)
- TP-Link's First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps
- Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
- Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
- Supports TP-Link OneMeshTM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
| HARDWARE FEATURES: | |
|---|---|
| Interface |
1 10/100/1000Mbps LAN/WAN Port, 3 10/100/1000Mbps LAN Ports, 1 nano-SIM Card Slot |
| Button |
WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
| External Power Supply | 12VDC/1.5A |
| Dimensions ( W x D x H ) | 7.95 × 5.55 × 1.32 in (202 × 141 × 33.6 mm) |
| Antenna Type | 2 Detachable External 4G LTE Antennas |
| WIRELESS FEATURES: | |
| Wireless Standards |
IEEE 802.11ac/n/a, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4GHz and 5GHz |
| EIRP |
<20dBm, <23dBm(5GHz) |
| Signal Rate |
300Mbps at 2.4GHz, 867Mbps at 5GHz |
| Wireless Security |
64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise |
| SOFTWARE FEATURES: | |
| Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| Network Type |
4G FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz), TDD-LTE B38/B40/B41 (2600/2300/2500MHz), 3G DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900MHz) |
| OTHERS: | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
4G Wireless AC Router, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#09005
3G/4G+ Cat6 Wireless AC1200 Router, 1200Mbps (TP-Link Archer MR600)
- TP-Link's First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps
- Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
- Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
- Supports TP-Link OneMeshTM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
| HARDWARE FEATURES: | |
|---|---|
| Interface |
1 10/100/1000Mbps LAN/WAN Port, 3 10/100/1000Mbps LAN Ports, 1 SIM Card Slot |
| Button |
WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
| External Power Supply | 12VDC/1.5A |
| Dimensions ( W x D x H ) | 9.0×6.3×1.5 in ( 229×160×37 mm) |
| Antenna Type |
3 Internal Wi-Fi Antennas, , 2 Detachable External 4G LTE Antennas |
| WIRELESS FEATURES: | |
| Wireless Standards |
IEEE 802.11ac/n/a, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4GHz and 5GHz |
| EIRP |
<20dBm, <23dBm(5GHz) |
| Signal Rate |
300Mbps at 2.4GHz, 867Mbps at 5GHz |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| SOFTWARE FEATURES: | |
| Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| Network Type |
4G FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz), TDD-LTE B38/B40/B41 (2600/2300/2500MHz), 3G DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900MHz) |
| OTHERS: | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
4G Wireless AC Router, 1 Antenna, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#06240
750Mbps Wireless AC Nano Router (TP-Link TL-WR902AC)
- Travel-Sized Design – Conveniently small and light to pack and take on the road, creating Wi-Fi network via Ethernet or WISP
- Dual Band AC750 Wi-Fi – Strong, fast connection for HD streaming on all your devices
- One Switch for Multiple Modes – Perfect for Wi-Fi at home, your hotel room or on the road
- Flexible Power – Micro USB port to an adapter, portable charger or laptop
- Versatile USB – For file sharing or providing power supply to mobile devices
| HARDWARE FEATURES: | |
|---|---|
| Interface |
1 10/100Mbps WAN/LAN Port, 1 USB Port, 1 Reset Button, 1 Mode Switch, 1 WPS Button |
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2,4GHz |
| Dimensions ( W x D x H ) | 74x67x22mm (2,91x2,64x0,87 in.) |
| External Power Supply | 5V/2A |
| Antenna Type | On-Board |
| WIRELESS FEATURES: | |
| Frequency | 2,4GHz and 5GHz |
| Signal Rate | 5GHz - Up to 433Mbps(Only with 11AC Wireless Adapter); Up to 150Mbps with 11N Wireless Adapter 2.4GHz - Up to 300Mbps |
| EIRP |
<20dBm(2,4GHz), <23dBm(5GHz) |
| Reception Sensitivity |
11a 54M -76dBm; 11ac VHT20 MCS8 -70dBm; 11ac VHT40 MCS9 -65.5dBm; 11ac VHT80 MCS9 -61.5dBm, 2,4GHz 11g 54M -76dBm11n; HT20 MCS7 -74dBm; 11n HT40 MCS7 -71dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM,, Wireless Statistics |
| Wireless Security |
64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP/L2TP |
| DHCP |
Server, Client, DHCP Client List,, Address Reservation |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec (ESP Head) |
| Access Control |
Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| Management |
Access Control, Local Management, Remote Management |
| Protocols | Supports IPv4 |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 1 |
| OTHERS: | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
TL-WR902AC, Power Adapter, USB Cable, Ethernet cable, Quick Installation Guide |
| System Requirements |
Microsoft® Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
#04572
750Mbps Wireless Router Dual-band AC750 (TP-Link Archer C20)
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
- 3 external antennas provide stable omnidirectional signal and superior wireless coverage
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/off Button |
| External Power Supply | 9VDC / 0.6A |
| Dimensions (W X D X H) | 230 x 144 x 35mm (9,1 x 5,7 x 1,4 in.) |
| Antenna | 3 Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 433Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dB |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Archer C20, Power supply unit, Quick Installation Guide, Ethernet Cable |
| System Requirements |
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09078
750Mbps Wireless Router Dual-band AC750 (TP-Link Archer C24)
- High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
- Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
- Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
- Parental Controls—Manages when and how connected devices can access the internet.
- Guest Network—Provides separate access for guests while securing the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor.
| HARDWARE FEATURES: | |
|---|---|
| Standards and Protocols |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Interface |
4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 9VDC / 0.6A |
| Dimensions (W X D X H) | 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm) |
| Antenna | 4 Antennas |
| WIRELESS FEATURES: | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 433Mbps, 2.4GHz Up to 300Mbps |
| EIRP |
CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dB |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption |
| SOFTWARE FEATURES: | |
| WAN Type |
Dynamic IP/Static IP/PPPoE/, PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control, Local Management, Remote Management |
| Guest Network | 2.4GHz guest network × 1, 5GHz guest network × 2 |
| OTHERS: | |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
Archer C24, Power supply unit, Quick Installation Guide, Ethernet Cable |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09012
Router Mesh Deco E4 2-pack, AC1200 (TP-Link DECO E4(2-Pack))
- Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
- With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between - Decos as you move through your home for the fastest possible speeds.
- A Deco E4 three-pack delivers Wi-Fi to an area of up to 4,000 square feet (EU version). And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
- Deco E4 provides fast and stable connections with speeds of up to 1167 Mbps and works with the major internet service provider (ISP) and modem.
- Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.
- Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member.
- Setup is easier than ever with the Deco app there to walk you through every step.
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
|---|---|
| Ports |
2 ports 10/100 Mb/s, 2 ports WAN/LAN, 1 Power Port |
| Button | 1 Reset button |
| Flash | 16 MB |
| SDRAM | 128 MB |
| Frequency range | 2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
| EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Advanced Functions |
TP-Link Mesh Technology - MU-MIMO, Auto Path Selection, AP Steering, Band Steering, Beamforming |
| Wireless Security | WPA-PSK/WPA2-PSK |
| Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
| Antenna | 2 internal dual-band antennas per Deco unit |
| Dimensions | 7.5 × 3.6 × 3.6 in. (190.5 × 90.7 × 90.7 mm) |
| Power | 12 V/1 A |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
2 Deco units, 2 Power Adapters, 1 RJ45 Ethernet Cable |
| Smartphone/Tablet Requirements |
iOS 9.0 or later, Android 4.4 or later |
| Certificates |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, VCCI, KC, RoHS |
_eu_v1.0_02_large_1548897093328e.jpg?1615194229)
_eu_v1.0_05_large_1548897144513x.jpg?1615194352)
#09014
Router Mesh Deco M4 1-pack, AC1200 (TP-Link DECO M4(1-Pack))
- Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
- With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between - Decos as you move through your home for the fastest possible speeds.
- A Deco M4 delivers Wi-Fi to an area of up to 180 square metres. And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
- Deco M4 provides fast and stable connections with speeds of up to 1167 Mbps and works with the major internet service provider (ISP) and modem.
- Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.
- Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member.
- Setup is easier than ever with the Deco app there to walk you through every step.
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
|---|---|
| Processor | Qualcomm CPU |
| Ports | 2 ports 10/100/1000 Mb/s WAN/LAN |
| Button | 1 Reset button |
| Flash | 16 MB |
| SDRAM | 128 MB |
| Frequency range | 2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
| EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Advanced Functions |
Router/ Access Point Mode, Optional Ethernet Backhaul, Guest network, TP-Link Mesh Technology MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming |
| Wireless Security | WPA-PSK/WPA2-PSK |
| Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
| Antenna | 2 internal dual-band antennas per Deco unit |
| Dimensions | Φ3.6 in. x 7.5 in. (Φ90.7 mm x 190 mm) |
| Power | 12 V/1.2 A |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
1 Deco unit, 1 Power Adapter, 1 RJ45 Ethernet Cable, 1 quick installation guide |
| Smartphone/Tablet Requirements |
iOS 9.0 or later, Android 4.4 or later |
| Certificates |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, VCCI, KC, RoHS |
#09015
Router Mesh Deco M4 2-pack, AC1200 (TP-Link DECO M4(2-Pack))
- Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
- With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between - Decos as you move through your home for the fastest possible speeds.
- A Deco M4 delivers Wi-Fi to an area of up to 180 square metres. And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
- Deco M4 provides fast and stable connections with speeds of up to 1167 Mbps and works with the major internet service provider (ISP) and modem.
- Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.
- Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member.
- Setup is easier than ever with the Deco app there to walk you through every step.
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
|---|---|
| Processor | Qualcomm CPU |
| Ports | 2 ports 10/100/1000 Mb/s WAN/LAN |
| Button | 1 Reset button |
| Flash | 16 MB |
| SDRAM | 128 MB |
| Frequency range | 2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
| EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Advanced Functions |
Router/ Access Point Mode, Optional Ethernet Backhaul, Guest network, TP-Link Mesh Technology MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming |
| Wireless Security | WPA-PSK/WPA2-PSK |
| Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
| Antenna | 2 internal dual-band antennas per Deco unit |
| Dimensions | Φ3.6 in. x 7.5 in. (Φ90.7 mm x 190 mm) |
| Power | 12 V/1.2 A |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
2 Deco units, 2 Power Adapters, 1 RJ45 Ethernet Cable, 1 quick installation guide |
| Smartphone/Tablet Requirements |
iOS 9.0 or later, Android 4.4 or later |
| Certificates |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, VCCI, KC, RoHS |
#09016
Router Mesh Deco M4 3-pack, AC1200 (TP-Link DECO M4(3-Pack))
- Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
- With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between - Decos as you move through your home for the fastest possible speeds.
- A Deco M4 delivers Wi-Fi to an area of up to 180 square metres. And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
- Deco M4 provides fast and stable connections with speeds of up to 1167 Mbps and works with the major internet service provider (ISP) and modem.
- Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.
- Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member.
- Setup is easier than ever with the Deco app there to walk you through every step.
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
|---|---|
| Processor | Qualcomm CPU |
| Ports | 2 ports 10/100/1000 Mb/s WAN/LAN |
| Button | 1 Reset button |
| Flash | 16 MB |
| SDRAM | 128 MB |
| Frequency range | 2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
| EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Advanced Functions |
Router/ Access Point Mode, Optional Ethernet Backhaul, Guest network, TP-Link Mesh Technology MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming |
| Wireless Security | WPA-PSK/WPA2-PSK |
| Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
| Antenna | 2 internal dual-band antennas per Deco unit |
| Dimensions | Φ3.6 in. x 7.5 in. (Φ90.7 mm x 190 mm) |
| Power | 12 V/1.2 A |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
3 Deco units, 3 Power Adapters, 1 RJ45 Ethernet Cable, 1 quick installation guide |
| Smartphone/Tablet Requirements |
iOS 9.0 or later, Android 4.4 or later |
| Certificates |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, VCCI, KC, RoHS |
#09018
Router Mesh Deco P9 2-pack, AC1200 (TP-Link DECO P9(2-Pack))
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
|---|---|
| Processor | Qualcomm CPU |
| Ports | 2 ports 10/100/1000 Mb/s WAN/LAN |
| Button | 1 Reset button |
| Signal Rate | 1000 Mb/s |
| Standard | HomePlug AV2 |
| Frequency range | 2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
| EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Advanced Functions |
Router/ Access Point Mode, Optional Ethernet Backhaul, Guest network, TP-Link Mesh Technology MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming |
| Wireless Security | WPA-PSK/WPA2-PSK |
| Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
| Antenna | 2 internal dual-band antennas per Deco unit |
| Dimensions | 190 mm x 90,7 mm x 90,7 mm (7,5 in. x 3,6 in. x 3,6 in.) |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
2 Deco units, 2 Power Adapters, 1 RJ45 Ethernet Cable, 1 quick installation guide |
| Smartphone/Tablet Requirements |
iOS 9.0 or later, Android 4.4 or later |
| Certificates |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, VCCI, KC, RoHS |
#09019
Router Mesh Deco P9 3-pack, AC1200 (TP-Link DECO P9(3-Pack))
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
|---|---|
| Processor | Qualcomm CPU |
| Ports | 2 ports 10/100/1000 Mb/s WAN/LAN |
| Button | 1 Reset button |
| Signal Rate | 1000 Mb/s |
| Standard | HomePlug AV2 |
| Frequency range | 2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
| EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Advanced Functions |
Router/ Access Point Mode, Optional Ethernet Backhaul, Guest network, TP-Link Mesh Technology MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming |
| Wireless Security | WPA-PSK/WPA2-PSK |
| Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
| Antenna | 2 internal dual-band antennas per Deco unit |
| Dimensions | 190 mm x 90,7 mm x 90,7 mm (7,5 in. x 3,6 in. x 3,6 in.) |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
3 Deco units, 3 Power Adapters, 1 RJ45 Ethernet Cable, 1 quick installation guide |
| Smartphone/Tablet Requirements |
iOS 9.0 or later, Android 4.4 or later |
| Certificates |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, VCCI, KC, RoHS |
#09258
Router Mesh Halo H30G 2-pack, AC1300 (TP-Link Mercusys Halo H30G(2-pack))
- One Unified Network – With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password.
- Seamless Roaming – Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.
- Whole Home Coverage – Blanket up to 2,800 ft² (260 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.
- 1.3 Gbps Dual Band WiFi – Halo H30G provides fast and stable connections for over 100 devices with speeds of up to 1,300 Mbps and works with major internet service providers (ISPs) and modems.
- Easy App Control – Use the MERCUSYS App to quickly set up and manage your WiFi.
- Full Gigabit Ports – 2× Gigabit ports per Halo unit for lightning-fast wired connections
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
|---|---|
| Ports | 2 x 10/100/1000 Mb/s ports per Halo unit (WAN/LAN auto-sensing) |
| Button | 1 Reset button |
| Frequency range | 2.4 GHz and 5 GHz |
| Signal Rate |
400 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
| EIRP | CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Wireless Security | WPA2-PSK + AES |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
| Mesh protocol | 802.11k/v |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, Address Reservation, DHCP Client List |
| Port Forwarding |
Virtual Server, UPnP, DMZ, Port Triggering |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
| Dimensions | 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm) |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
2 Halo H30G units, 2 Power Adapters, 1 RJ45 Ethernet Cable, 1 Quick Installation Guide |
#09259
Router Mesh Halo H30G 3-pack, AC1300 (TP-Link Mercusys Halo H30G(3-pack))
- One Unified Network – With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password.
- Seamless Roaming – Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.
- Whole Home Coverage – Blanket up to 2,800 ft² (260 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.
- 1.3 Gbps Dual Band WiFi – Halo H30G provides fast and stable connections for over 100 devices with speeds of up to 1,300 Mbps and works with major internet service providers (ISPs) and modems.
- Easy App Control – Use the MERCUSYS App to quickly set up and manage your WiFi.
- Full Gigabit Ports – 2× Gigabit ports per Halo unit for lightning-fast wired connections
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
|---|---|
| Ports | 2 x 10/100/1000 Mb/s ports per Halo unit (WAN/LAN auto-sensing) |
| Button | 1 Reset button |
| Frequency range | 2.4 GHz and 5 GHz |
| Signal Rate |
400 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
| EIRP | CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Wireless Security | WPA2-PSK + AES |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
| Mesh protocol | 802.11k/v |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, Address Reservation, DHCP Client List |
| Port Forwarding |
Virtual Server, UPnP, DMZ, Port Triggering |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
| Dimensions | 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm) |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
3 Halo H30G units, 3 Power Adapters, 1 RJ45 Ethernet Cable, 1 Quick Installation Guide |
#09191
Router Mesh Halo H50G 3-pack, AC1900 (TP-Link Mercusys Halo H50G(3-pack))
- One Unified Network – With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password.
- Seamless Roaming – Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.
- Whole Home Coverage – Blanket up to 6,000 ft² (550 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.
- 1.9 Gbps Dual Band WiFi – Halo H50G provides fast and stable connections for over 100 devices with speeds of up to 1,900 Mbps and works with major internet service providers (ISPs) and modems.
- Easy App Control – Use the MERCUSYS App to quickly set up and manage your WiFi.
- Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections
| Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
|---|---|
| Ports | 3 x 10/100/1000 Mb/s ports per Halo unit (WAN/LAN auto-sensing) |
| Button | 1 Reset button |
| Frequency range | 2.4 GHz and 5 GHz |
| Signal Rate |
600 Mbps on 2.4 GHz, 1300 Mbps on 5 GHz |
| EIRP | CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Wireless Security | WPA2-PSK + AES |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
| Mesh protocol | 802.11k/v |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, Address Reservation, DHCP Client List |
| Port Forwarding |
Virtual Server, UPnP, DMZ, Port Triggering |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
| Dimensions | 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm) |
| Operating Temperature | 0°C~40°C (-32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Package Contents |
3 Halo H50G units, 3 Power Adapters, 1 RJ45 Ethernet Cable, 1 Quick Installation Guide |
#07014
Security Gateway UNIFI (Ubiquiti UNIFI USG)
| Ports |
3x 10/100/1000 Mbps RJ-45 (LAN), 1x RJ45 Serial Port |
|---|---|
| LEDs Per Data Port | Status/Power/Speed/Link/Activity |
| Processor |
Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 512 MB DDR2 RAM |
| On-Board Flash Storage | 2 GB |
| Layer 3 Forwarding Performance |
1,000,000 pps, 3 Gbps (Line Rate) |
| Max. Power Consumption | 7 W |
| Power |
12VDC, 1A Power Adapter (Included) |
| Power Input | 9 to 24VDC Supported Voltage Range |
| Dimensions | 135 x 135 x 28.3 mm (5.32 x 5.32 x 1.11") |
| Weight | 366 g |
| Operating temperatures | -10°C ÷ 45°C |
| Operating humidity |
10% ÷ 90%, non-condensing |
| Certificates |
CE, FCC, IC |
| Manufacturer | Ubiquiti |
#09032
1200Mbps Wireless Range Extender Mesh, AC1200 (TP-Link RE300)
- Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones.
- Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
- Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps) for more stable wireless experience.
- Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
- Works with any Wi-Fi router or wireless access point.
-Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI.
| HARDWARE FEATURES: | |
|---|---|
| Plug Type | EU |
| Button |
WPS Button, Reset Button |
| Power Consumption | About 7.3W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Dimensions ( W x D x H ) | 4.9 x 2.7 x 2.0 in (124 x 69 x 52 mm) |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mpbs |
| EIRP | <17dBm(2,4GHz) <17dBm(5GHz) |
| Reception Sensitivity |
5GHz 11a 6Mbps -91dBm@10% PER, 11a 54Mbps -74dBm@10% PER, 11ac HT20 mcs8 -68dBm@10% PER, 11ac HT40 mcs9 -63dBm@10% PER, 11ac HT80 mcs9 -59dBm@10% PER, 2,4GHz 11g 54M -79dBm@10% PER, 11n HT20 mcs7 -77dBm@10% PER, 11n HT40 mcs7 -74dBm@10% PER |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE300, Resource CD, Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8,10, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~30° (32°~86°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#09107
1200Mbps Wireless Range Extender, AC1200 (TP-Link Mercusys ME30)
- Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly
- AC1200 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2 Gbps
- Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds
- Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension
- Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles
- Works with Any Router or Wireless Access Point
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 * 10/100M Ethernet Port (RJ45) |
| Plug Type | EU |
| Button |
WPS Button, Reset Button |
| Power Consumption | About 9.2W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 112 × 84,7 × 39 mm |
| Antenna Type | 2 x external |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mpbs |
| EIRP | < 20 dBm |
| Wireless Security | WPA-PSK/WPA2-PSK |
| OTHERS | |
| Certification |
CE, RoHS |
| Package Contents |
ME30, Quick Installation Guide |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
#04585
1200Mbps Wireless Range Extender, AC1200 (TP-Link RE305)
- Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2Gbps
- Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience
- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
- Works with any Wi-Fi router or wireless access point
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 * 10/100M Ethernet Port (RJ45) |
| Plug Type | EU |
| Button |
WPS Button, Reset Button |
| Power Consumption | About 7.3W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 3.1x3.0x3.0 in. (80x78x77mm) |
| Antenna Type | 2 x external |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 867Mbps, 2.4GHz Up to 300Mpbs |
| EIRP | <17dBm(2,4GHz) <17dBm(5GHz) |
| Reception Sensitivity |
5GHz 11a 6Mbps -91dBm@10% PER, 11a 54Mbps -74dBm@10% PER, 11ac HT20 mcs8 -68dBm@10% PER, 11ac HT40 mcs9 -63dBm@10% PER, 11ac HT80 mcs9 -59dBm@10% PER, 2,4GHz 11g 54M -79dBm@10% PER, 11n HT20 mcs7 -77dBm@10% PER, 11n HT40 mcs7 -74dBm@10% PER |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE305, Resource CD, Quick Installation Guide, RJ-45 Ethernet Cable |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8,10, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#04582
1750Mbps Wireless Range Extender, AC1750 (TP-Link RE450)
- Expand Wi-Fi Network for Ultimate Performance
- Expanded 450Mbps on 2.4GHz + 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
- Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
- Gigabit Ethernet port acts as a wireless adapter to connect a wired device to your network at gigabit speed
- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
- Works with any Wi-Fi router or wireless access point
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 * 10/100/1000M Ethernet Port (RJ45) |
| Plug Type | EU |
| Button |
RE (Range Extender) Button, Reset Button, LED Button, Power Button |
| Power Consumption | About 9W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 6.4x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm) |
| Antenna Type | 3 x external |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 1300Mbps, 2.4GHz Up to 450Mpbs |
| EIRP | <20dBm(2,4GHz) <23dBm(5GHz) |
| Reception Sensitivity |
5GHz 11a 6Mbps -93dBm@10% PER, 11a 54Mbps -76dBm@10% PER, 11ac HT20 mcs8 -68dBm@10% PER, 11ac HT40 mcs9 -64dBm@10% PER, 11ac HT80 mcs9 -61dBm@10% PER, 2,4GHz 11g 54M -77dBm@10% PER, 11n HT20 mcs7 -73dBm@10% PER, 11n HT40 mcs7 -70dBm@10% PER |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE450, Resource CD, Quick Installation Guide, RJ-45 Ethernet Cable |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09264
1900Mbps Wireless Range Extender, AC1900 (TP-Link Mercusys ME50G)
- Dual Band Speeds up to 1900 Mbps – 1300 Mbps on 5 GHz and 600 Mbps on 2.4 GHz.
- 3×3 MU-MIMO – Connect more devices simultaneously.
- Works with Any Routers – To Extend WiFi to Where You Need It Most.
- Built-In Access Point Mode – Works as RE mode and AP mode.
- Manage Your Network with App - Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
-Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles.
-Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 * 10/100/1000M Ethernet Port (RJ45) |
| Plug Type | EU |
| Button |
WPS Button, Reset Button |
| Power Consumption | About 12W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) |
with plug - 84.7×76.3×112 mm, without plug - 84.7×39×112 mm |
| Antenna Type | 4 x external |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 1300Mbps, 2.4GHz Up to 600Mpbs |
| EIRP | < 20 dBm |
| Wireless Security | WPA-PSK/WPA2-PSK |
| OTHERS | |
| Certification |
CE, RoHS |
| Package Contents |
ME50G, Quick Installation Guide |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
#09127
1900Mbps Wireless Range Extender, AC1900 (TP-Link RE550)
- Maximum Coverage - Extend Wi-Fi coverage by up to 1,115 m2（12,000sq. ft）.
- AC1900 Dual Band Wi-Fi - Simultaneous 600Mbps on 2.4GHz + 1300Mbps on 5GHz
- Three Antennas - Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
- Gigabit Ethernet port - Act as a wireless adapter to connect a wired device to your network at Gigabit speed
- Intelligent Signal Light - Help to find the best location for optimal Wi-Fi coverage by showing the signal strength
- AP Mode - Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 * 10/100/1000M Ethernet Port (RJ45) |
| Plug Type | EU |
| Button |
RE (Range Extender) Button, Reset Button, LED Button, Power Button |
| Power Consumption | About 10W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 163 x 76,4 x 66,5 mm (6,4 x 3,0 x 2,6 in) |
| Antenna Type | 3 x external |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 1300Mbps, 2.4GHz Up to 600Mpbs |
| EIRP | <20dBm(2,4GHz) <23dBm(5GHz) |
| Reception Sensitivity |
5GHz 11a 6Mbps -93dBm@10% PER, 11a 54Mbps -76dBm@10% PER, 11ac HT20 mcs8 -68dBm@10% PER, 11ac HT40 mcs9 -64dBm@10% PER, 11ac HT80 mcs9 -61dBm@10% PER, 2,4GHz 11g 54M -77dBm@10% PER, 11n HT20 mcs7 -73dBm@10% PER, 11n HT40 mcs7 -70dBm@10% PER |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE550, Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8,10, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~30° (32°~86°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Manufacturer | TP-Link |
#04690
2533Mbps Wireless Range Extender, AC2600 (TP-Link RE650)
- Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage by up to 14,000 sq. ft.
- 4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz
- 4×4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
- Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections
- Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 * 10/100/1000M Ethernet Port (RJ45) |
| Plug Type | EU |
| Button |
RE (Range Extender) Button, Reset Button, LED Button, Power Button |
| Power Consumption | About 12W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 6.4x 3.4 x 1.6 in. (163 x 86 x 40mm) |
| Antenna Type | 4 x external |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
5GHz Up to 1733Mbps, 2.4GHz Up to 800Mpbs |
| EIRP | <20dBm(2,4GHz) <23dBm(5GHz) |
| Reception Sensitivity |
5GHz 11a 6Mbps -96dBm@10% PER, 11a 54Mbps -78dBm@10% PER, 11ac HT20 mcs8 -69dBm@10% PER, 11ac HT40 mcs9 -66dBm@10% PER, 11ac HT80 mcs9 -63dBm@10% PER, 2,4GHz 11g 54M -79dBm@10% PER, 11n HT20 mcs7 -77dBm@10% PER, 11n HT40 mcs7 -74dBm@10% PER |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE650, Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8,10, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#09062
750Mbps Wireless Range Extender, AC750 (TP-Link RE190)
- Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Compatible with 802.11 b/g/n and 802.11ac WiFi devices
- Dual band speeds up to 750Mbps
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
| HARDWARE FEATURES: | |
|---|---|
| Plug Type | EU |
| Button |
Reset Button, WPS Button |
| Power Consumption | About 7.0W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 110,0 × 65,8 × 38,8 mm |
| Antenna Type | 3 x Omni-directional Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
11n Up to 300Mbps(dynamic), 11g Up to 54Mbps(dynamic), 11b Up to 11Mbps(dynamic) |
| EIRP | <20dBm (EIRP) |
| Reception Sensitivity |
270M -70dBm@10% PER, 130M -70dBm@10% PER, 108M -73dBm@10% PER, 54M -75dBm@10% PER, 11M -86dBm@8% PER, 6M -92dBm@10% PER, 1M -94dBm@8% PER, 5G, 390M -60dBm@10% PER, 29.3M -83dBm@10% PER, 180M -64dBm@10% PER, 13.5M -87dBm@10% PER, 78M -68dBm@10% PER, 6.5M -90dBm@10% PER, 54M -75dBm@10% PER, 6M -90dBm@10% PER |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128/152-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE190, Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
#08935
750Mbps Wireless Range Extender, AC750 (TP-Link RE200)
- Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Compatible with 802.11 b/g/n and 802.11ac WiFi devices
- Dual band speeds up to 750Mbps
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
| HARDWARE FEATURES: | |
|---|---|
| Ports | 1 * 10/100M Ethernet Port (RJ45) |
| Plug Type | EU |
| Button |
Reset Button, Range Extender Button |
| Power Consumption | About 6.5W |
| Wireless Standards |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) |
| Antenna Type | 3 x internal |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz |
| Signal Rate |
11n Up to 300Mbps(dynamic), 11g Up to 54Mbps(dynamic), 11b Up to 11Mbps(dynamic) |
| EIRP | <20dBm (EIRP) |
| Reception Sensitivity |
270M -70dBm@10% PER, 130M -70dBm@10% PER, 108M -73dBm@10% PER, 54M -75dBm@10% PER, 11M -86dBm@8% PER, 6M -92dBm@10% PER, 1M -94dBm@8% PER, 5G, 390M -60dBm@10% PER, 29.3M -83dBm@10% PER, 180M -64dBm@10% PER, 13.5M -87dBm@10% PER, 78M -68dBm@10% PER, 6.5M -90dBm@10% PER, 54M -75dBm@10% PER, 6M -90dBm@10% PER |
| Wireless Modes | Range Extender |
| Wireless Functions |
WMM (Wi-Fi Multimedia), Wireless Statistic, Domain Login Function |
| Wireless Security |
64/128/152-bit WEP, WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Package Contents |
RE200, Resource CD, Quick Installation Guide, RJ-45 Ethernet Cable |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,8, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
| Warranty | 2 years limited warranty. Advanced replacement service is available. |
| Manufacturer | TP-Link |
