HARDWARE FEATURES: | |
---|---|
Interface |
1 10/100Mbps LAN/WAN Port, 3 10/100Mbps LAN Ports, 1 SIM Card Slot |
Button |
WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button |
External Power Supply | 12VDC/1A |
Dimensions ( W x D x H ) | 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
Antenna Type |
2 Internal Wi-Fi Antennas, , 2 Detachable External 4G LTE Antennas |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4GHz |
EIRP | <20dBm |
Signal Rate | 300Mbps at 2.4GHz |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
SOFTWARE FEATURES: | |
Security |
NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
Operating Modes |
3G/4G Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
Protocols | Supports IPv4 and IPv6 |
Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
Network Type |
4G FDD-LTE Cat4 (800/900/1800/2100/2600MHz), TDD-LTE (2300/2600MHz), 3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz), 2G EDGE/GPRS/GSM (850/900/1800/1900MHz) |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
3G/4G Wireless AC Router, 1 Antenna, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide, Micro to Standard SIM Card Adapter, Nano to Standard SIM Card Adapter |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Interface |
1 10/100Mbps LAN/WAN Port, 2 10/100Mbps LAN Ports, 1 SIM Card Slot, 1 Phone Port |
Button |
WPS/Reset Button, Wi-Fi ON/OFF Button |
External Power Supply | 12VDC/1A |
Dimensions ( W x D x H ) | 7.95 × 5.55 × 1.32 in (202 × 141 × 33.6 mm) |
Antenna Type | 2 Detachable External 4G LTE Antennas |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4GHz |
EIRP | <20dBm |
Signal Rate | 300Mbps at 2.4GHz |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type |
4G- FDD-LTE- B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz), TDD-LTE- B38/B40/B41 (2600/2300/2500 MHz), 3G- HSPA/UMTS- B1/B5/B8 (2100/850/900 MHz) |
SOFTWARE FEATURES: | |
Security |
IPv4 SPI Firewall, IP and MAC Address Binding |
Operating Modes |
3G/4G Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management |
Local Management, Remote Management |
DHCP |
Server, DHCP Client List, Address Reservation |
Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, NO-IP |
Protocols |
IPv4, IPv6 |
Guest Network | 2.4 GHz Guest Network |
Administration |
Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
TELEPHONY: | |
VoIP Standards |
SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.729AB, G.726 |
Integrated Answering Machine | Stores 100 minutes long voice messages internally on the modem router |
Advanced Telephone Functions |
Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number |
OTHERS: | |
Certification |
CE, RoHS |
Package Contents |
3G/4G Wireless AC Router, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide |
Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other, Java-enabled browser, Micro SIM Card |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |

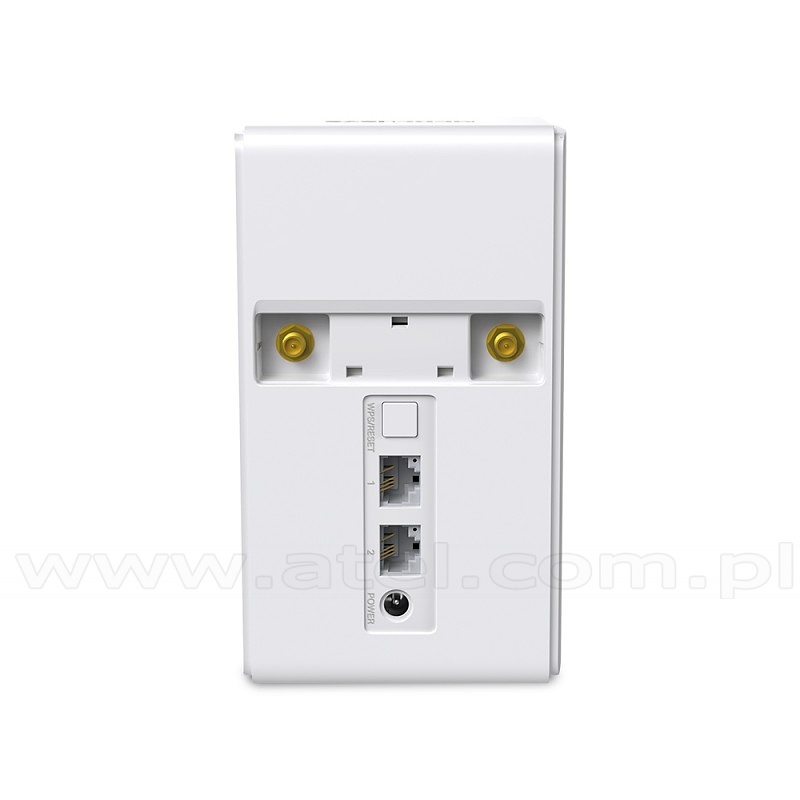

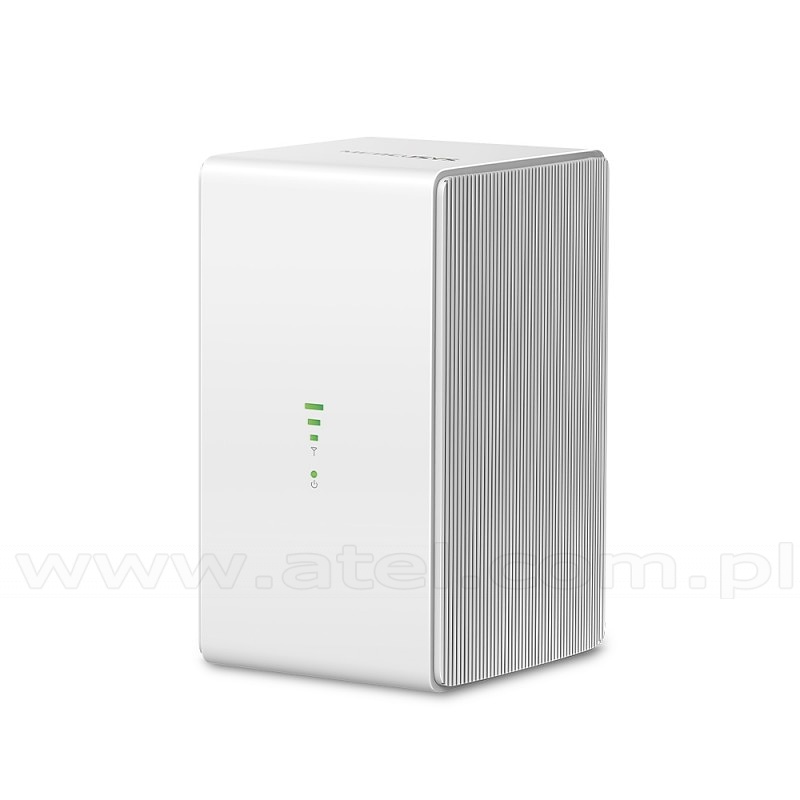

HARDWARE FEATURES: | |
---|---|
Standards and Protocols | 802.11b/g/n |
Interface |
1× 10/100Mbps LAN/WAN Port, 1× 10/100Mbps LAN Port, 2× 4G/3G External Antenna Ports, 1× Nano SIM Card Slot |
Button | WPS/Reset Button |
Dimensions (W X D X H) | 90×92×150,5 mm |
WIRELESS FEATURES: | |
Frequency | 2.4GHz |
Signal Rate | 2,4 GHz@ 300 Mb/s |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless, Statistics |
Wireless Security | WPA-PSK / WPA2-PSK |
Network Type |
EU FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz), TDD-LTE B38/B40 (2600/2300 MHz), HSPA+/UMTS B1/B5/B8 (2100/850/900 MHz), UN FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz), TDD-LTE B40 (2300 MHz), HSPA+/UMTS B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz) |
OTHERS: | |
Environment |
Operating Temperature 0°~40° (32°~104°), Storage Temperature -40°~70° (-40°~158°), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
HARDWARE FEATURES: | |
---|---|
Interface |
1 10/100Mbps WAN/LAN Port, USB 2.0 Port for 3G/4G modem, a mini USB Port for power supply. |
Button |
Quick Setup Security Button, Reset Button, Mode Switch |
External Power Supply | 5VDC/1.0A |
Dimensions ( W x D x H ) | 2.9 x 2.6 x 0.9 in. (74 x 67 x22 mm) |
Antenna Type | Internal Antenna |
WIRELESS FEATURES: | |
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4-2.4835GHz |
EIRP | <20dBm |
Wireless Modes |
3G Router, Travel Router (AP), WISP Client Router |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
SOFTWARE FEATURES: | |
DHCP |
Server, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, DMZ, UPnP |
Access Control |
Parental Control, Host List, Access Schedule, Rule Management |
Security |
Firewall, MAC filtering, Denial of Service (DoS) |
OTHERS: | |
Certification |
CE, FCC, RoHS |
Package Contents |
TL-MR3020 router, QIG, Power Adapter, USB Cable, Resource CD, Ethernet Cable |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating temperature-10°~60°, Storage Temperature -40°~80°, Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing |
Warranty | 2 years limited warranty. Advanced replacement service is available. |
Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
---|---|
Ports | 2 LAN/WAN Gigabit Ethernet Ports |
Processor | Quad-core CPU |
Button | 1 Reset button on the underside |
Flash | 32 MB |
SDRAM | 256 MB |
Bluetooth version | 4.2 and above |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
400 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Advanced Functions |
TP-Link Mesh Technology - MU-MIMO, Auto Path Selection, AP Steering, Band Steering, Beamforming |
Wireless Security | WPA-PSK/WPA2-PSK |
Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
Antenna | 4 internal antennas per Deco unit |
Dimensions | Φ4.7 in. x 1.3 in. (Φ120 mm x 38 mm) |
Power | 12 V/1.2 A |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
Deco unit, 1 RJ45 Ethernet Cable, Power Adapter |
Smartphone/Tablet Requirements |
iOS 8.0 or later, Android 4.3 or later, Bluetooth 4.0 or later |
Certificates |
CE, FCC, IC, NCC, BSMI, IDA |
Standards |
IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2,4 GHz |
---|---|
Ports | 2 LAN/WAN Gigabit Ethernet Ports |
Processor | Quad-core CPU |
Button | 1 Reset button on the underside |
Flash | 32 MB |
SDRAM | 256 MB |
Bluetooth version | 4.2 and above |
Frequency range | 2.4 GHz and 5 GHz |
Signal Rate |
400 Mbps on 2.4 GHz, 867 Mbps on 5 GHz |
EIRP |
FCC <30 dBm, CE <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
Advanced Functions |
TP-Link Mesh Technology - MU-MIMO, Auto Path Selection, AP Steering, Band Steering, Beamforming |
Wireless Security | WPA-PSK/WPA2-PSK |
Software Features |
Quality of Service - WMM, IPv6 Support, WAN Type - Dynamic IP/Static IP/PPPoE, Local Management, Remote Management, DHCP - Server, Client, Port Forwarding Support, Access Control Blacklist, Firewall Security SPI Firewall, Protocols Supports IPv4 and IPv6, Homecare - Antivirus, Parental Controls, Quality of Service, Speedtest, Monthly Usage Reports, Auto FW Update, Expand for more deco, Guest Network 2.4 GHz guest network * 1 - 5 GHz guest network * 1, Beamformig, Easy setup by Deco App |
Antenna | 4 internal antennas per Deco unit |
Dimensions | Φ4.7 in. x 1.3 in. (Φ120 mm x 38 mm) |
Power | 12 V/1.2 A |
Operating Temperature | 0°C~40°C (-32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Package Contents |
3 Deco units, 1 RJ45 Ethernet Cable, 3 Power Adapters |
Smartphone/Tablet Requirements |
iOS 8.0 or later, Android 4.3 or later, Bluetooth 4.0 or later |
Certificates |
CE, FCC, IC, NCC, BSMI, IDA |
Ports |
3x 10/100/1000 Mbps RJ-45 (LAN), 1x RJ45 Serial Port |
---|---|
LEDs Per Data Port | Status/Power/Speed/Link/Activity |
Processor |
Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
System Memory | 512 MB DDR2 RAM |
On-Board Flash Storage | 2 GB |
Layer 3 Forwarding Performance |
1,000,000 pps, 3 Gbps (Line Rate) |
Max. Power Consumption | 7 W |
Power |
12VDC, 1A Power Adapter (Included) |
Power Input | 9 to 24VDC Supported Voltage Range |
Dimensions | 135 x 135 x 28.3 mm (5.32 x 5.32 x 1.11") |
Weight | 366 g |
Operating temperatures | -10°C ÷ 45°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Certificates |
CE, FCC, IC |
Manufacturer | Ubiquiti |
Standards |
IEEE 802.11n, IEEE 802.11b/g |
---|---|
Ports |
2x 10/100 Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45 (WAN) |
Frequency range | 2400 MHz ÷ 2483,5 MHz |
Max. speed | 300 Mbps |
Max. output power | 20 dBm |
Antenna | 2× Omni-Directional Antennas |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridging |
WLAN security | WPA-PSK / WPA2-PSK |
WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP | Server |
Port Forwarding |
Virtual Server, UPnP, DMZ |
Access Control |
Parental Controls, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
SPI firewall, IP and MAC Address Binding |
Protocols |
IPv4, IPv6 |
Guest Network | 1× 2.4 GHz Guest Network |
Dimensions | 114 mm × 94 mm × 26 mm |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 5 V DC / 0,6 A |
Manufacturer | TP-Link |
Standards |
IEEE 802.11n, IEEE 802.11b/g |
---|---|
Ports |
3x 10/100 Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45 (WAN) |
Frequency range | 2400 MHz ÷ 2483,5 MHz |
Max. speed | 300 Mbps |
Max. output power | 20 dBm |
Antenna | 3× Omni-Directional Antennas 5dBi |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridging |
WLAN security | WPA-PSK / WPA2-PSK |
WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP | Server |
Port Forwarding |
Virtual Server, UPnP, DMZ |
Access Control |
Parental Controls, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
SPI firewall, IP and MAC Address Binding |
Protocols |
IPv4, IPv6 |
Guest Network | 1× 2.4 GHz Guest Network |
Dimensions | 147 mm × 115 mm × 34 mm |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 5 V DC / 0,6 A |
Manufacturer | TP-Link |
Standards |
IEEE 802.11n, IEEE 802.11b/g |
---|---|
Ports |
3x 10/100 Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45 (WAN) |
Frequency range | 2400 MHz ÷ 2483,5 MHz |
Max. speed | 300 Mbps |
Max. output power | 20 dBm |
Antenna | 4× Omni-Directional Antennas 5dBi |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridging |
WLAN security | WPA-PSK / WPA2-PSK |
WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Management |
Access Control, Local Management, Remote Management |
DHCP | Server |
Port Forwarding |
Virtual Server, UPnP, DMZ |
Access Control |
Parental Controls, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
SPI firewall, IP and MAC Address Binding |
Protocols |
IPv4, IPv6 |
Guest Network | 1× 2.4 GHz Guest Network |
Dimensions | 167 x 118 x 33 mm |
Operating temperatures | 0°C ÷ 40°C |
Operating humidity |
10% ÷ 90%, non-condensing |
Power | 5 V DC / 0,6 A |
Manufacturer | TP-Link |
Page 5 of 6
|
