Oring Networking - Manufacturing Automation



Advance Industrial Communication into the Next Generation

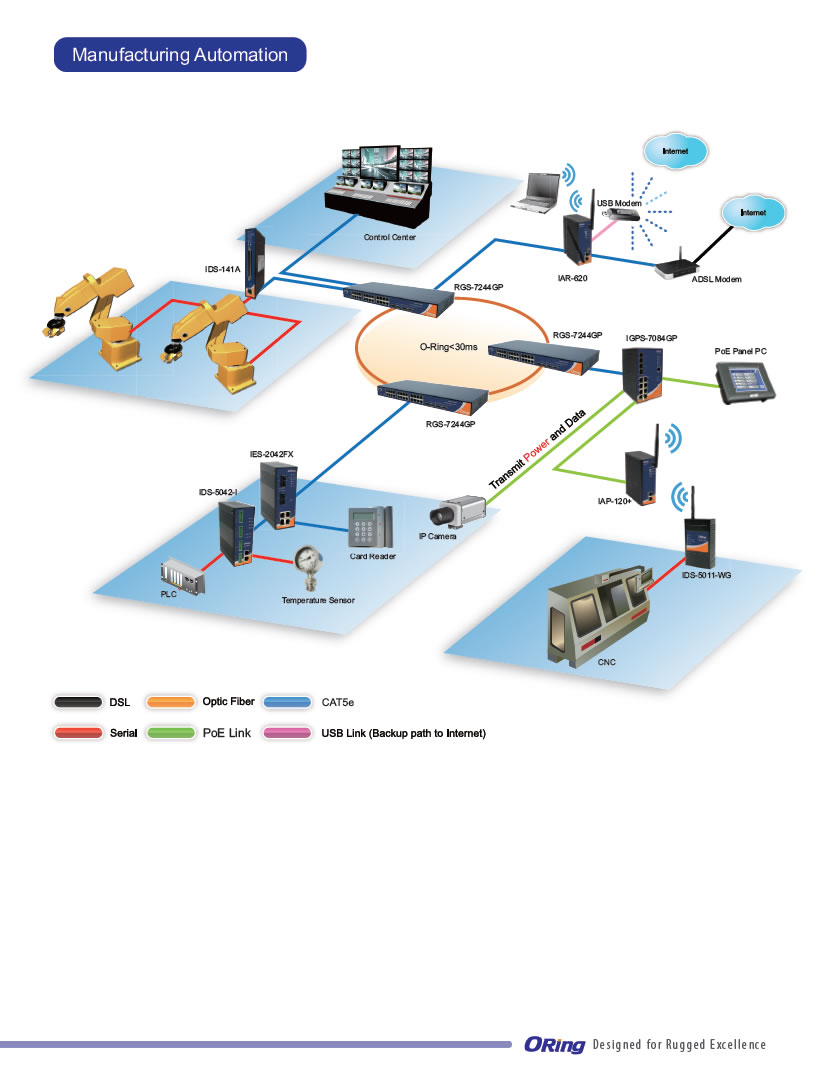

For factory automation, it is necessary to have accurate realtime information of automated production-line at all times. Traditionally radio and serial connections are used for factory communications, but the integration of Ethernet and SCADA automation systems can make such communications even more effective. ORing has the right products for industrial network communications - e.g. PoE Ethernet Switch and Device Server - allowing traditional serial devices (including RS485 type) to be connected to more robust Ethernet networks. With such upgrade, factory supervisors can get real-time production data much faster and much more reliably, thanks to much higher data bandwidth along with stable and swift redundant ring backup protection. The overall result would be vastly improved work efficiency and lower costs.

Key Products


IDS-5011-WG_5042-I IDS-5011-WG / IDS-5042-I+ (#06579) / (#06576)
1-serial-port (with IEEE 802.11 b/g wireless) and 4-serial-port Device Servers
• Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP Operating Modes
• Security: SSL data encryption, HTTPS, SSH management, IP white list access
• Event Warning by Syslog, Email, SNMP trap, and Beeper
IDS-141A IDS-141A (#07651)
4-serial-port slim type Device Server
• Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP, Ethernet modem
• Rugged industrial IP-30 housing design
• -40 to 70C operating temperature range
Bezprzewodowy router GSM, 2x 10/100 RJ-45 (LAN + PoE PD) + 1x 802.11a/b/g/n (WLAN) + 1x USB (ORing IAR-620+) IAR-620 / IAR-620+(#08456)/ (#08457)
Industrial 802.11a/b/g/n Access Point 3.5G Router
• WLAN interface support up to 300Mbps link speed
• Provide HNAT enhance LAN to WAN routing performance
• Secured Management by HTTPs
RGS-7244GP RGS-7244GP (#07629)
28-port rack-mount managed Gigabit Ethernet Switch
• 24x10/100/1000Base-T(X) and 4x1000Base-X SFP socket
• O-Ring (recovery time < 30ms over 250 units of connection), MSTP/RSTP/STP for Ethernet Redundancy
• Support ACL, 802.1x User Authentication for security and 9K Bytes Jumbo frame
