#06946
Compression crimping tool for F type compression connectors (Hanlong HT-H548A1)
For crimping F type compression connectors on coaxial cables. Thanks to the rotating head, the connectors can be crimped on RG59, RG6 and RG11 cables. In addition, the crimper has the ability to adjust the length of the connector.
| Purpose | F type compression connectors |
|---|---|
| Cable types | RG59/RG6 |
| Connector length for RG59/RG6 | 15,5 ÷ 22,6 mm |
| Connector length for RG11 | 30,5 ÷ 37,3 mm |
| Packaging | Blister pack |
| Producer | Hanlong |
#04362
Compression crimping tool for F, BNC & RCA compression connectors with adjustment for crimping different length of connectors (Hanlong HT-H510B)
For crimping various types of compression connectors on coaxial cables. The design also allows for clamping angular connectors. In addition, the crimper has the ability to adjust the length of the connector.
| Purpose |
F;BNC;RCA type compression connectors, angular connectors |
|---|---|
| Cable types | RG59/RG6; RG11 |
| Packaging | Blister pack |
| Producer | Hanlong |
#03217
Conic F connector crimping tool (Hanlong HT-507)
Enables quick and precise crimping od conic type connectors on RG6 cables. Does not require adjustment.
| Purpose | F type connectors |
|---|---|
| Cable types | RG6 |
| Packaging | Blister |
| Producer | Hanlong |
#04551

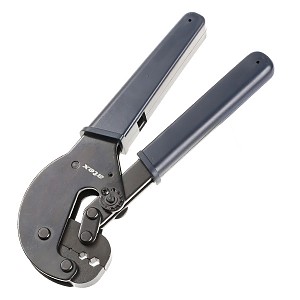

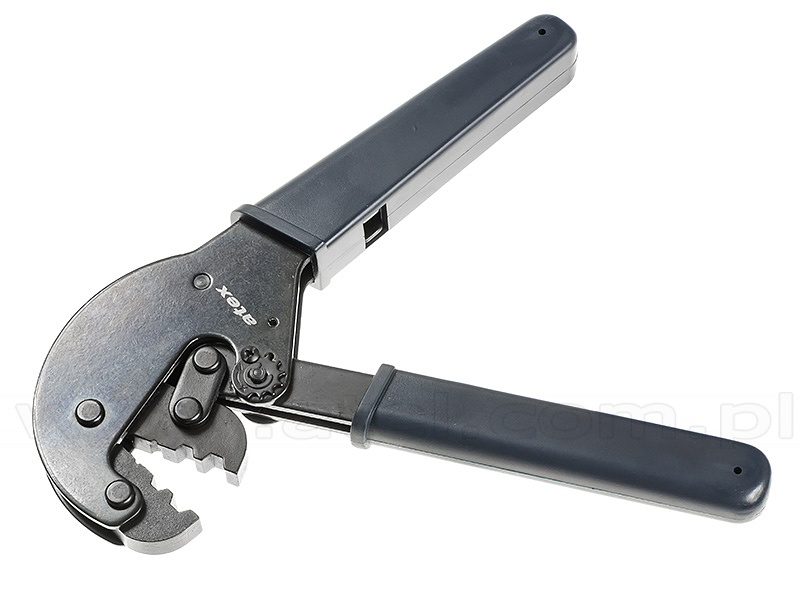

Coaxial hex crimping tool (AT-106D)
Metal construction, pressure adjustment.
| Crimping diameter |
1.72 mm, 5.40 mm, 6.48 mm |
|---|---|
| Cable types |
RG55, RG58, RG59, RG62, RG140, RG210, BELDEN 141, BELDEN 142, BELDEN 223, BELDEN 303, BELDEN 400, BELDEN 8279 |
| Connectors type |
BNC, TNC, UHF, SMA |
#02231
Coaxial hex crimping tool (Hanlong HT-106E)
Metal construction, pressure regulation.
| Crimping diameter |
5.40 mm, 8.20 mm, 11.4 mm |
|---|---|
| Cable types |
RG6, RG11, RG58, RG213 |
Page 2 of 2
|
