 WDM UNMANAGED MEDIA CONVERTERS

#07614

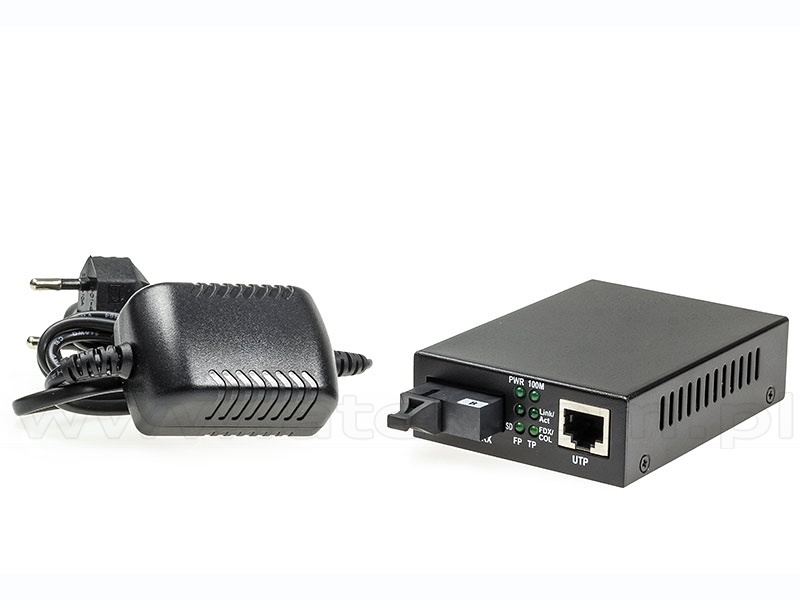

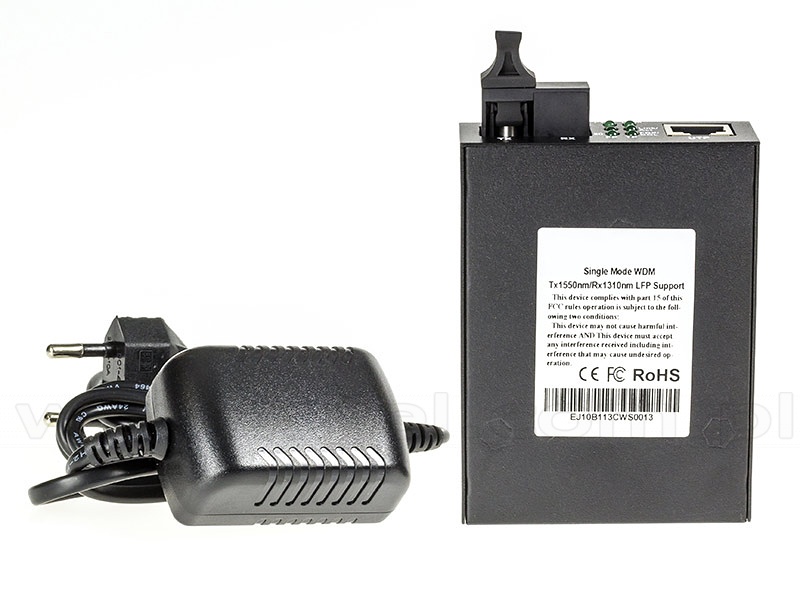

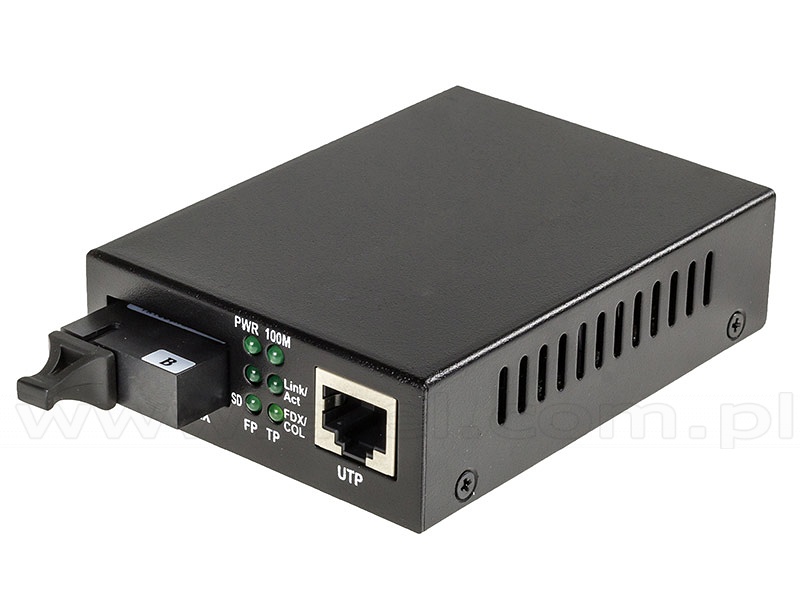

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-B)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 150nm
RX wavelength 1310nm
Port #2 max. distance 20km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Warranty period 24 months
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 20km, WDM (Wave Optics, WO-KB-SWS-020K-B)
Net Price: 22,30 21,40 EUR   Unit: pcs  VAT: 23%
product card»
#09636

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link MC212CS-20)

  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
Standards IEEE 802.3/i/u/ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1550 nm
Port #2 max. distance 20 km
Port #2 cable type 9/125 ľm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature -5°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
9V/0.6A
Manufacturer TP-Link
TP-LINK
TP-Link MC212CS-20, Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM
Net Price: 22,30 EUR  Unit: pcs  VAT: 23%
product card»
#09637

Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link MC211CS-20)

  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
Standards IEEE 802.3/i/u/ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550 nm
RX wavelength 1310 nm
Port #2 max. distance 20 km
Port #2 cable type 9/125 ľm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature -5°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
9V/0.6A
Manufacturer TP-Link
TP-LINK
TP-Link MC211CS-20, Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM
Net Price: 22,30 EUR  Unit: pcs  VAT: 23%
product card»
#07616

Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-B)

Standards IEEE 802.3/u/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1550nm
RX wavelength 1310nm
Port #2 max. distance 40km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Wave Division Multiplexing (WDM) yes
Housing / case type desktop
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
WAVE OPTICS
Media converter 10/100/1000 Mbps RJ-45/SC, SM 1550nm, 40km, WDM (Wave Optics, WO-KB-SWS-040K-B)
Net Price: 24,70 22,80 EUR   Unit: pcs  VAT: 23%
product card»
#09100
SELL OUT

Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link TL-FC311B-20)

  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
Standards IEEE 802.3/i/u/ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1550 nm
Port #2 max. distance 20 km
Port #2 cable type 9/125 ľm
Wave Division Multiplexing (WDM) yes
Housing desktop
Dimensions 94,5x73x27 mm
Operating temperature 0°C ÷ 50°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
5V/0.6A
Manufacturer TP-Link
Can be mount in:
#06986 Rack chassis for media converter, 14-port (TP-LINK TL-FC1420)
TP-LINK
TP-Link TL-FC311B-20, Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM
Net Price: 24,00 EUR  Unit: pcs  VAT: 23%
product card»

 SFP MEDIA CONVERTERS

top
#06425

Gigabit media converter 10/100/1000 Mbps RJ-45/SFP slot 1000 Mbps (TP-Link MC220L)

Standards IEEE 802.3/ab/z/i/u
Port #1 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX)
Port #1 max. distance 100 m
Port #1 cable type UTP/STP
Port #2 SFP
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Dimensions 94.5x73x27 mm
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Power 9V/0.6A
Max Power Consumption 1.7W
Certificates FCC Class B,
CE
Warranty period 5 years
Manufacturer TP-Link
Can be mount in:
#06985 Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)
TP-LINK
SFP media converter, 1Gb RJ-45/SFP slot 1Gb (TP-Link MC220L)
Net Price: 14,50 EUR  Unit: pcs  VAT: 23%
product card»
#07628

Gigabit media converter 10/100/1000 Mbps RJ-45/SFP slot 100/1000 Mbps (Wave Optics, WO-KGA-SFP)

Standards IEEE 802.3/ab/z
Port #1 10/100/1000 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP
Port #2 SFP,
supports 1G and 155M transceivers
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Dimensions 94.5x73x27 mm
Operating temperature 0°C ÷ 50°C
Operating humidity 10% ÷ 90%,
non-condensing
Power 5V DC 1A
Certificates FCC Class B,
CE
Warranty period 2 years
Manufacturer Wave Optics
WAVE OPTICS
SFP media converter, 10/100/1000Mb RJ-45/SFP slot 1Gb (Wave Optics, WO-KGA-SFP)
Net Price: 15,60 15,10 EUR   Unit: pcs  VAT: 23%
product card»
#07621

Media converter 10/100 Mbps RJ-45/SFP slot 100 Mbps (Wave Optics, WO-KF-SFP)

Standards IEEE 802.3/ab/z
Port #1 10/100 Mbps RJ-45
Port #1 max. distance 100 m
Port #1 cable type UTP/STP
Port #2 SFP
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Certificates FCC Class B,
CE
Warranty period 2 years
Manufacturer Wave Optics
WAVE OPTICS
SFP media converter, 10/100Mb RJ-45/SFP slot 100 Mbps (Wave Optics, WO-KF-SFP)
Net Price: 17,40 16,00 EUR   Unit: pcs  VAT: 23%
product card»
#07629

Gigabit media converter SFP to SFP (Wave Optics, WO-SFP-SFP)

Standards IEEE 802.3/ab/z
Port #1 1G SFP slot
Port #2 1G SFP slot
Supporting full duplex and half-duplex transmission
Transmission distance depends on installed transceivers
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Dimensions 95x70x26 mm
Operating temperature 0°C ÷ 70°C
Operating humidity 5% ÷ 90%,
non-condensing
Power DC 5V
Certificates FCC Class B,
CE
Warranty period 2 years
Manufacturer Wave Optics
WAVE OPTICS
Gigabit media converter SFP to SFP (Wave Optics, WO-SFP-SFP)
Net Price: 22,30 21,90 EUR   Unit: pcs  VAT: 23%
product card»
#09486

10 Gigabit media converter 1G/2.5G/5G/10 Gbps RJ-45/SFP+ slot 1000 Mbps (TP-Link MC420L)

Standards IEEE 802.3ab,
IEEE 802.3an,
IEEE 802.3z,
IEEE 802.3ae,
IEEE 802.3aq,
IEEE 802.3x
Ports 1× SFP+ port,
1× 1G/2.5G/5G/10Gbps RJ45 port
Link Fault Pass-thorugh (LFP) no
Housing / case type desktop / slot module
Dimensions 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Operating temperature 0°C ÷ 50°C
Operating humidity 10% ÷ 90%,
non-condensing
Power External Power Adapter
Max Power Consumption 4.12W
Certificates UL,
RoHS
Warranty period 5 years
Manufacturer TP-Link
TP-LINK
10 Gigabit media converter 1G/2.5G/5G/10 Gbps RJ-45/SFP+ slot 1000 Mbps (TP-Link MC420L)
Net Price: 38,70 EUR  Unit: pcs  VAT: 23%
product card»

top
