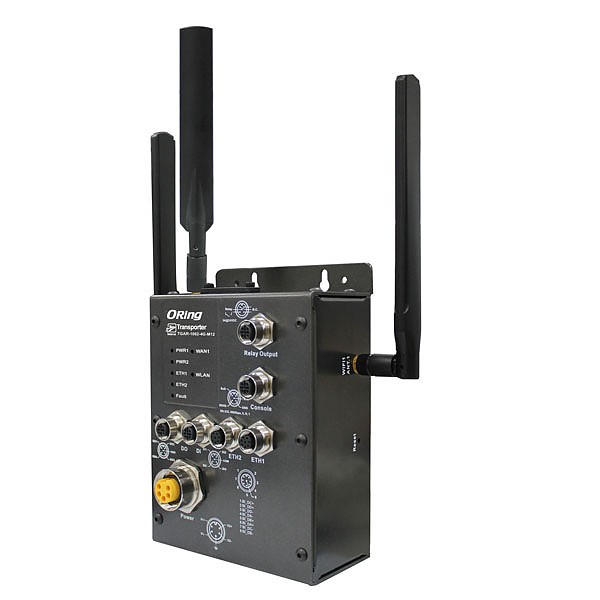

Wireless router 4G, 2x 10/100/1000 M12 (LAN) + 1x 802.11b/a/g/n (WLAN) (ORing TGAR-1062+-4GS-M12)
ORing’s TransporterTM series cellular router is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications. TGAR-1062-4G-M12 is reliable IEEE802.11 a/b/g/n router with 2 ports LAN which is fully compliant with EN50155 certification. It could be configured to operate in 3 modes of routing function: Dynamic/Static IP route, PPPoE authentication, and Cellular modem dial up. Users can set up WLAN environment to fulfill demands of various applications rapidly by dialing up cellular modem. TGAR-1062-4G-M12 EN50155 cellular VPN router use M-series connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, TGAR-1062+-4G-M12 also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, TGAR-1062-4G-M12 is one of the most reliable choices for rolling stock applications on the wireless network.
| Physical Ports | |
|---|---|
| 10/100/1000 Base-T(X) Ports in M-12 Auto MDI/MDIX | 2 |
| DIDO port in M12 (5-pin A-coding) | 2 (DI x 4 and DO x 4) |
| SIM Card Slot | 1 |
| RS-232 Console port in M12 | 115200, 8 ,N ,1 |
| WLAN interface | |
| Antenna Connector | 2 x External reverse SMA-type antenna connector |
| Radio Frequency Type | DSSS, OFDM |
| Modulation IEEE802.11a | OFDM with BPSK, QPSK, QAM, 64QAM |
| Modulation IEEE802.11b | CCK, DQPSK, DBPSK |
| Modulation IEEE802.11g | OFDM with BPSK, QPSK, 16QAM, 64QAM |
| Modulation IEEE802.11n | BPSK, QPSK, 16QAM, 64QAM |
| Frequency Band | America/FCC 2.412~2.462 GHz (11 channels), 5.180~5.240 GHz & 5.745~5.825 GHz (9 channels), Europe CE/ETSI 2.412~2.472 Ghz (13 channels), 5.180~5.240 GHz (4 channels) |
| Transmission Rate | IEEE802.11b 1/2/5.5/11 Mbps, IEEE802.11g 6/9/12/18/24/36/48/54 Mbps, IEEE802.11n UP to 300 Mbps |
| Transmit Power | 802.11a 12dBm ± 1.5dBm@54Mbps, 802.11b 17dBm ± 1.5dBm@11Mbps, 802.11g 16dBm ± 1.5dBm@54Mbps, 802.11gn HT20 15dBm ± 1.5dBm @MCS7, 802.11gn HT40 14dBm ± 1.5dBm @MCS7, 802.11an HT20 -74dBm ± 2dBm@MCS7, 802.11an HT40 -71dBm ± 2dBm@MCS7 |
| Receiver Sensitivity | 802.11b -85dBm ± 2dBm@11Mbps, 802.11g -76dBm ± 2dBm@54Mbps, 802.11gn HT20 -75dBm ± 2dBm@MCS7, 802.11gn HT40 -72dBm ± 2dBm@MCS7 |
| Encryption Security | WEP (64-bit ,128-bit key), WPA/WPA2 PSK - TKIP and AES encryption (802.11i), 802.1X/RADIUS Authentication supported, WPAPSK (256-bit key pre-shared key supported), TKIP encryption |
| Wireless Security | SSID broadcast disable |
| Cellular Interface | |
| Cellular Standard | GSM / GPRS/ EGPRS/EDGE / WCDMA /HSDPA / HSUPA/HSPA+ /LTE |
| Antenna Connector | 1 x SMA Female |
| Band Option | America(US) LTE - 700/1700/2100/MHz UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+ - 800/850/1900/2100MHz, GSM/GPRS/EDGE - 850/900/1800/1900MHz, Europe(EU) LTE - 800/900/1800/2100/2600MHz, UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+ - 900/2100MHz, GSM/GPRS/EDGE - 900/1800/1900MHz |
| Protocol Support | ARP, BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D), RSTP |
| LED Indicators | |
| Power Indicator | 2 x LEDs, (PW1) Green On - Power is on, (PW2) Green On - Power is on or power by PoE |
| 100/1000Base-T(X) M-12 Port Indicator | 2 x LEDs, Green for port Link/ Act |
| WLAN LEDs | 1 x LED, Green for WLAN Link/ Act |
| WAN LED | 1 x LED, Green for Cellular modem Link/ Act |
| Fault | 1 x LED, Red for Ethernet link down or power down indicator |
| Fault Contact | |
| Relay | Relay output to carry capacity of 3A at 24VDC |
| Power | |
| Redundant Input Power | Dual DC inputs. 12~48 VDC on 5-pin M23 connector (24 VDC Typ.) |
| Power consumption (typical) | 9.5W |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Physical Characteristic | |
| Enclosure | IP-40 |
| Dimension (W x D x H) | 125.6mm x 65mm x 196.1mm |
| Weight | 968g |
| Environmental | |
| Storage Temperature | -40÷85°C (-40÷185°F) |
| Operating Temperature | -25÷70°C (-13÷158°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27, EN61373 |
| Free Fall | IEC60068-2-31 |
| Vibration | IEC60068-2-6, EN61373 |
| Rail Traffic | EN50155 |
| Cooling | EN60068-2-1 |
| Dry Heat | EN60068-2-2 |
| Safety | EN60950-1 |
| Warranty | |
| Warranty period | 5 years |
| * For special orders only Net Price:
 Call |
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
