#07878
Transporter EN50155 Devices › ORING NETWORKING › TGAP-620+-M12

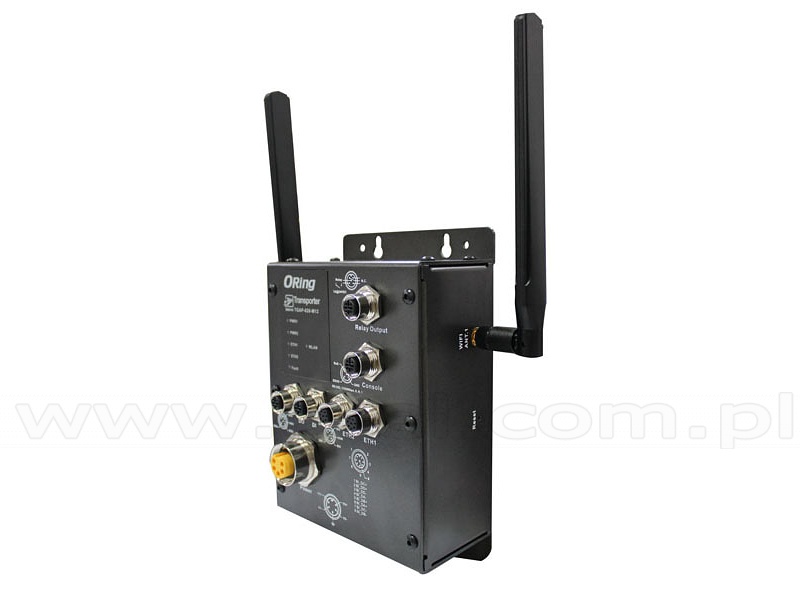

Wireless access point, 2x 10/100/1000 M12 (LAN) PoE + 1x 802.11b/a/g/n (WLAN) (ORing TGAP-620+-M12)

ORing’s TransporterTM series access point is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications. TGAP-620-M12 is a reliable 802.11 a/b/g/n WLAN Access Point with 2 Ethernet 10/100/1000 ports. It can be configured to operate in AP/Client /Bridge /AP-Client Mode. TGAP-620-M12 provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports. TGAP-620-M12 provides a dust-tight connection and reverses SMA-type connectors that can install any reverse SMA-type antennas to extend communication distance. It is specifically designed for the toughest industrial environments. You are able to configure TGAP-620-M12 by WEB interface via LAN port or WLAN interface. TGAP-620-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network in outdoor. In addition, TGAP-620+-M12 also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, TGAP-620-M12 is one of the best communication solutions for wireless applications.
Physical Ports
10/100/1000 Base-T(X) Ports in M-12 Auto MDI/MDIX 2 (Present at ETH2 Fully compliant with IEEE 802.3af PoE P.D)
DIDO port in M12 (5-pin A-coding) 2 (DI x 4 and DO x 4)
RS-232 Console port in M12 115200, 8 ,N ,1
WLAN interface
Operating Mode AP/Bridge/Repeater/AP-Client
Antenna Connector 2 x External reverse SMA-type antenna connector
Radio Frequency Type DSSS
Modulation IEEE802.11b CCK,
DQPSK,
DBPSK
Modulation IEEE802.11a/g OFDM
Modulation IEEE802.11n BPSK,
QPSK,
16QAM,
64QAM
Frequency Band America/FCC 2.412~2.462 GHz (11 channels),
5.180~5.240 GHz & 5.745~5.825 GHz (9 channels),
Europe CE/ETSI 2.412~2.472 Ghz (13 channels),
5.180~5.240 GHz (4 channels)
Transmission Rate IEEE802.11b 1/2/5.5/11 Mbps,
IEEE802.11g 6/9/12/18/24/36/48/54 Mbps,
IEEE802.11n UP to 300 Mbps
Transmit Power 802.11a 12dBm ± 1.5dBm@54Mbps,
802.11b 17dBm ± 1.5dBm@11Mbps,
802.11g 16dBm ± 1.5dBm@54Mbps,
802.11gn HT20 15dBm ± 1.5dBm @MCS7,
802.11gn HT40 14dBm ± 1.5dBm @MCS7,
802.11an HT20 -74dBm ± 2dBm@MCS7,
802.11an HT40 -71dBm ± 2dBm@MCS7
Receiver Sensitivity 802.11b -85dBm ± 2dBm@11Mbps,
802.11g -76dBm ± 2dBm@54Mbps,
802.11gn HT20 -75dBm ± 2dBm@MCS7,
802.11gn HT40 -72dBm ± 2dBm@MCS7
Encryption Security WEP (64-bit ,128-bit key),
WPA/WPA2 PSK - TKIP and AES encryption (802.11i),
802.1X/RADIUS Authentication supported
Wireless Security SSID broadcast disable
Protocol Support ARP,
BOOTP,
DHCP,
DNS,
HTTPs,
IP,
ICMP,
SNTP,
TCP,
UDP,
RADIUS,
SNMP,
STP (IEEE 802.1D),
RSTP,
PPPoE
LED Indicators
Power Indicator 2 x LEDs,
(PW1) Green On - Power is on,
(PW2) Green On - Power is on or power by PoE
100/1000Base-T(X) M-12 Port Indicator 2 x LEDs,
Green for port Link/ Act
WLAN LEDs 1 x LED,
Green for WLAN Link/ Act
Fault 1 x LED,
Red for Ethernet link down or power down indicator
Fault Contact
Relay Relay output to carry capacity of 1A at 24VDC (5-pin M12 A-coding)
Power
Redundant Input Power Dual DC inputs. 12~48 VDC on 5-pin M23 connector (24 VDC Typ.)
Power consumption (typical) 8.5W
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristic
Enclosure IP-40
Dimension (W x D x H) 125.6mm x 65mm x 196.1mm
Weight 960g
Environmental
Storage Temperature -40÷85°C (-40÷185°F)
Operating Temperature -25÷70°C (-13÷158°F)
Operating Humidity 5%÷95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2)
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27,
EN61373
Free Fall IEC60068-2-31
Vibration IEC60068-2-6,
EN61373
Rail Traffic EN50155
Cooling EN60068-2-1
Dry Heat EN60068-2-2
Safety EN60950-1
Warranty
Warranty period 5 years
Print to PDF
Technical Support
TAGS: EN50155, M12, PoE
* For special orders only
Net Price: CallCall
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
