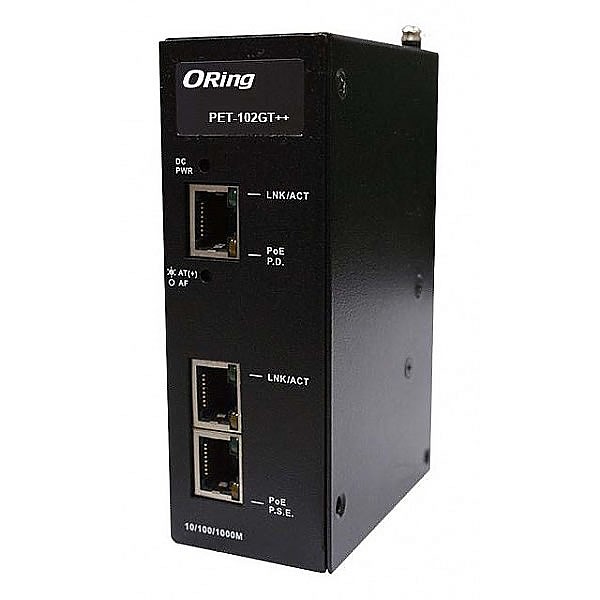

Industrial Gigabit High Power Extender, 1x10/1000 RJ-45 PoE + 2x10/1000 RJ-45 PoE (ORing PET-102GT++)
ORing PET-102GT++ is a high power PoE extender and compatible with IEEE802.3at/af[Note1] standard. With one 10/100/1000TxBase-T(X) P.D. input port and two 10/100/1000TxBase-T(X) P.S.E. output ports, the device not only pass on Ethernet data but also feed on and forward power from the previous PoE device to the next device. Furthermore, the PET-102GT++ can be powered by external DC power sources. By using external DC power to compensate for power losses caused by long-haul transmission, users can continue to use the PoE extender to enlarge the distance unlimitedly. With the ability to provide 90Watts[Note3] PoE power per port, the PET-102GT++ is surely a user-friendly and high-power PoE extender.
Note1: The equipment being powered must be fully IEEE 802.3at/802.3af compliant in order for the power supply to be able to sense the PoE devices signature and apply power. Power is supplied on Ethernet pins 1/2 (V+) and 3/6 (V-).
Note 3: LTPoE++TM PSE technology is applied on this product. Only when an LTPoE++ TM Powered Device (PD) is attached can the PSE port deliver up to 90W of output power.
Note1: The equipment being powered must be fully IEEE 802.3at/802.3af compliant in order for the power supply to be able to sense the PoE devices signature and apply power. Power is supplied on Ethernet pins 1/2 (V+) and 3/6 (V-).
Note 3: LTPoE++TM PSE technology is applied on this product. Only when an LTPoE++ TM Powered Device (PD) is attached can the PSE port deliver up to 90W of output power.
| Physical Ports | |
|---|---|
| 10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.D. Input | 1 |
| 10/100/1000Base-T(X) in RJ-45 Ethernet Port with P.S.E. Output | 2 |
| Operating Voltage | |
| Input Voltage | 50 ~ 57 VDC |
| Output Power | 57V / 1579mA, 90 Watts max. Per port |
| LED Indicators | |
| Power indicator | PWR / Ready 1 x LED, Green On - Power is on and functioning Normally |
| PoE P.D. Input Port Indicator | Green for Link/Act, Amber for PoE input enabled |
| Protection | |
| Short Circuit Protection | present |
| Over Load Protection | present |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 41(W) x 75 (D) x 115 (H)mm (1.61 x 2.95 x 4.52 inch) |
| Environmental | |
| Storage Temperature | -40÷80°C(-40÷176°F) |
| Operating Temperature | -20÷70°C (-4÷158°F) |
| Operating Humidity | 5%÷90% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
| Warranty | |
| Warranty period | 5 years |
TAGS:
PoE
| * For special orders only
Net Price: 344,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
