#07212
Cables coaxial typeWAVE CABLESRG-6CU WHITE

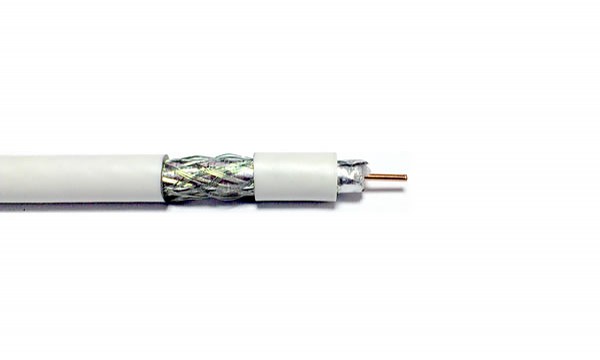

Coaxial cable Wave Cables RG6 Cu, white, 100 m

center conductor 1.02 mm / copper wire (Cu)
dielectric 4.7 mm
screen Al-PES foil
braid 64x0.12 Al
outer shell 6.8mm/PVC
impedance 75Ω
capacitance 52 ± 2 pF/m
return loss 1-1000 MHz - >23dB,
1000-3000 MHz - >20dB
screening attenuation 1-1000MHz - >90dB
attenuation 5 MHz - 5 MHz - 1.7 dB/100m,
50 MHz - 5.0 dB/100m,
200 MHz - 8.7 dB/100m,
400 MHz - 12.8 dB/100m,
800 MHz - 18.0 dB/100m,
1000 MHz - 19.8 dB/100m,
1350 MHz - 23.8 dB/100m,
1750 MHz - 28.0 dB/100m,
2150 MHz - 31.4 dB/100m,
3000 MHz - 38.0 dB/100m

COAXIAL CABLES 75Ω
Net Price: 22,30 EUR  Unit: roll 100m
Minimal order quantity: 1 x roll 100m
Quantity in the smallest collective package: 1 x roll 100m
x roll 100m
