COMMUNICATION FOR INDUSTRY » POWER SUPPLIES » SLIM TYPE POWER SUPPLIES 230V AC
Search for product:
#06675

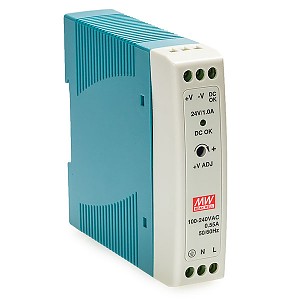

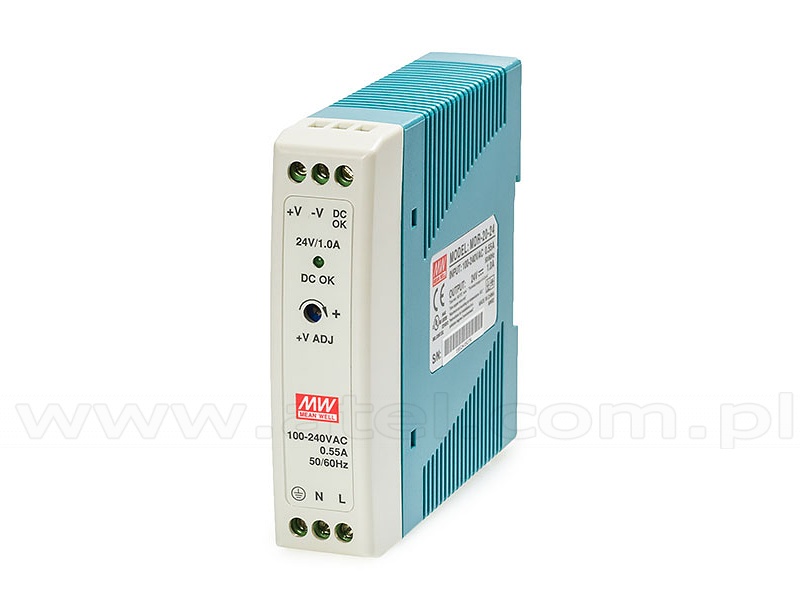

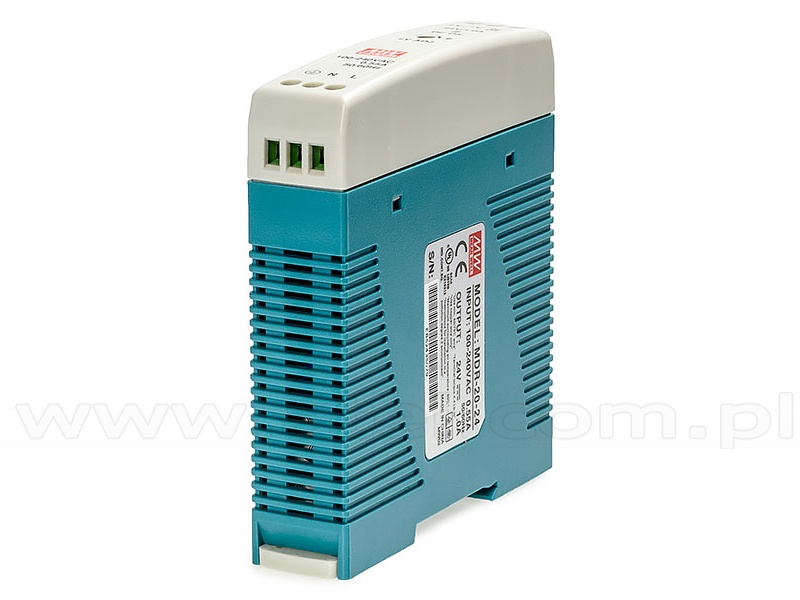

Power supply 24W 24VDC, mini, DIN TS35 (Mean Well MDR-20-24)

Output
DC Voltage
24V
Rated current
1A
Current Range
0÷1A
Rated Power
24W
Ripple & noise (max.)
150mVp-p
Voltage adjustment range
21.6÷26.4V
Voltage tolerance
±1.0%
Line regulation
±1.0%
Load regulation
±1.0%
Setup & rise time
500ms & 30ms/230VAC at full load,
1000ms & 30ms/115VAC at full load
Hold up time (typ.)
50ms/230VAC at full load,
20ms/115VAC at full load
Input
Voltage range
85÷264VAC,
120÷370VDC
Frequency range
47÷63Hz
Efficiency (typ.)
84%
AC current (typ.)
0.55A/115VAC,
0.35A/230VAC
Inrush current (typ.)
20A/115VAC cold start,
40A/230VAC cold start
Leakage current
<1mA/240VAC
Protection
Overload
105%÷160% rated output power,
protection type - constant current limiting - recovers automatically after fault condition is removed
Overvoltage
27.6÷32.4V,
protection type - shut down o/p voltage & re-power on to recover
Function
DC OK active signal
18÷27V/20mA
Environment
Working temperature
-20°C ÷ 70°C
Working humidity
20÷90% RH non-condensing
Storage temperature
-40°C ÷ 85°C
Storage Humidity
10÷95% RH
Temperature coefficient
±0.03%/°C (0÷50°C)
Vibration (component)
10÷500Hz,
2G 10min./1cycle,
60min. each along X Y Z axes
Vibration (mounting)
compliance to IEC60068-2-6
Safety & EMC
Safety standards
UL508,
TUV EN60950-1,
NEC class 2 / LPS
Withstand voltage
I/P-O/P 3kVAC,
I/P-FG 1.5kVAC,
O/P-FG 0.5kVAC
Isolation resistance
I/P-O/P 100MΩ/500VDC,
I/P-FG 100MΩ/500VDC,
O/P-FG 100MΩ/500VDC
EMI conduction & radiation
EN55011,
EN55022 (CISPR22),
EN61204-3 Class B
Harmonic current
EN61000-3-2,
EN61000-3-3
EMS immunity
EN61000-4-2/3/4/5/6/8/11,
ENV50204,
EN55024,
EN61000-6-1,
EN61204-3,
light industry level criteria A
Others
MTBF
min. 236900h MIL-HDBK-217F (25°C)
Dimension (W x H x D)
22.5mm x 90mm x 100mm
Weight
0.19kg
Print to PDF
Technical Support
MEAN WELL
Net Price: 24,10 21,50 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
[+]add item to comparison | show comparison [0]
