Net Price: 11,60 EUR  Unit: roll 100m
Minimal order quantity: 1 x roll 100m
Quantity in the smallest collective package: 1 x roll 100m
x roll 100m
[+]add item to comparison | show comparison [0]
#07204
Cables coaxial typeWAVE CABLESRG59-CU

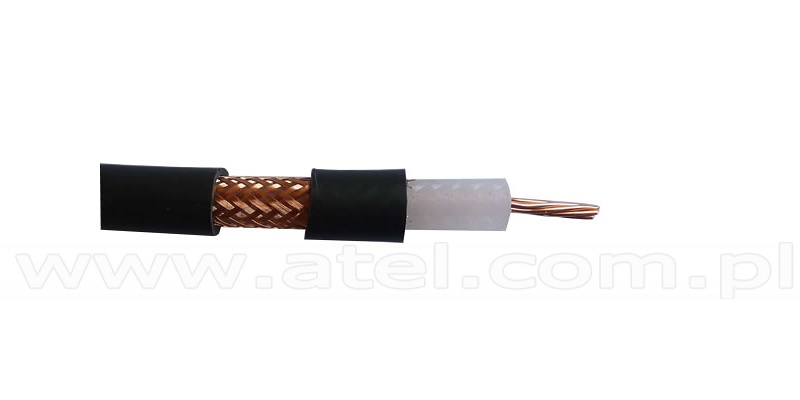

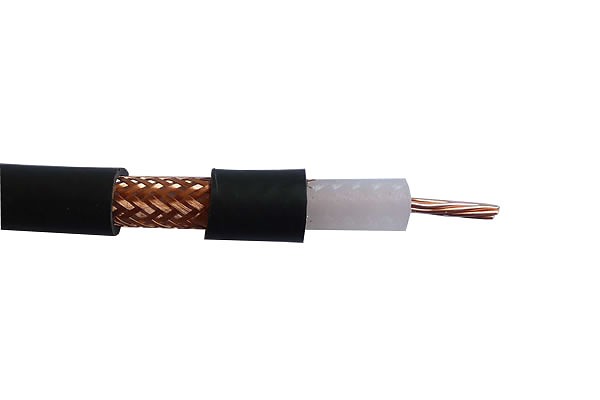

Coaxial cable Wave Cables RG59 Cu, 100 m

center conductor 0.81 mm / copper wire (Cu)
dielectric 3.7 mm
screen Al-PES foil
braid 64x0.12 Al
outer shell 6.0mm/PVC
impedance 75Ω
capacitance 52 ± 2 pF/m
return loss 5-30 MHz - >26dB,
30-470 MHz - >23dB,
470-1000 MHz - >20dB,
1000-3000 MHz - >20dB
acreening attenuation 1-1000MHz - >90dB
attenuation 5 MHz - 1.8 dB/100m,
50 MHz - 5.9 dB/100m,
200 MHz - 10.7 dB/100m,
400 MHz - 14.8 dB/100m,
800 MHz - 22.5 dB/100m,
1000 MHz - 25.0 dB/100m,
1350 MHz - 30.5 dB/100m,
1750 MHz - 33.5 dB/100m,
2150 MHz - 37.5 dB/100m,
3000 MHz - 46.5 dB/100m

COAXIAL CABLES 75Ω
